The refined personal computer
A Powerful, Easy-To-Use Computer Built Into A Neat And Portable Keyboard (US)

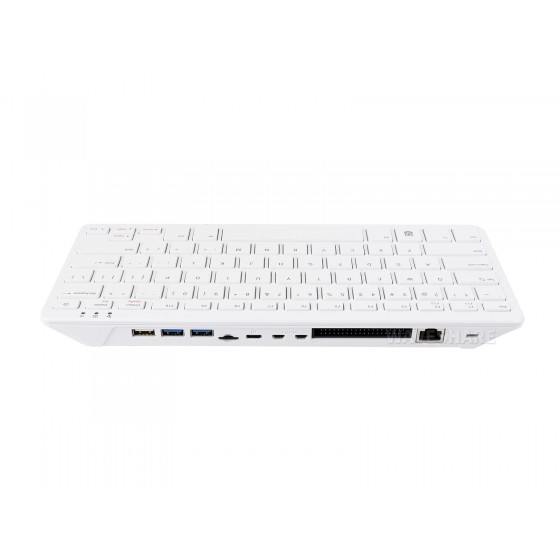

It’s A Raspberry Pi Designed Into A Keyboard.
Raspberry Pi 500 features the same quad-core 64-bit Arm processor and RP1 I/O controller found in Raspberry Pi 5. With a one-piece aluminium heatsink built in for improved thermal performance, your Raspberry Pi 500 will run fast and smoothly even under heavy load, while delivering glorious dual 4K display outputs.
| Processor | 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache |
|---|---|
| RAM | 8GB LPDDR4X-4267 SDRAM |
| Storage | 32GB Raspberry Pi A2-Class Micro SD card included |
| WiFi | Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE |
| Ethernet | Gigabit Ethernet |
| USB | 2 × USB 3.0 port and 1 × USB 2.0 port |
| GPIO | Horizontal 40-pin GPIO header |
| Video & sound | 2 × micro HDMI port (support up to 4Kp60) |
| Multimedia | H.265 (4Kp60 decode); OpenGL ES 3.0 graphics |
| SD card support | MicroSD card slot for operating system and data storage |
| Keyboard | 78-key (US) compact keyboard |
| Power | 5V DC USB-C port |
| Operating temperature | 0°C to +50°C ambient |
| Dimensions | 286 × 122 × 23 (mm) |
| Pi 500 unit only |
Official Desktop Kit |
Waveshare Basic Kit |
7inch Touch Display Kit |
10.1inch Touch Display Kit |
13.3inch Touch Display Kit |
15.6inch Display Kit | |
|---|---|---|---|---|---|---|---|
| Raspberry Pi 500 Unit (built-in 32GB Raspberry Pi Micro SD card) |
√ | √ | √ | √ | √ | √ | √ |
| Official Desktop Kit accessories (Official micro HDMI to HDMI cable, official Raspberry Pi Beginner's Guide, official wired mouse, Raspberry Pi 27W USB-C Power Supply (US plug)) |
√ | ||||||
| Waveshare Basic Kit accessories (GPIO adapter board, HDMI to Micro HDMI cables, 27W Type-C power supply, USB mouse, and card reader) |
√ | √ | √ | √ | √ | ||
| 7inch HDMI LCD (H) (with accessories) |
√ | ||||||
| 10.1HP-CAPLCD Monitor (with accessories) |
√ | ||||||
| 13.3inch HDMI LCD (H) (with case) V2 (with accessories) |
√ | ||||||
| 15.6″ Portable Monitor (with accessories) |
√ |
Official Raspberry Pi 500 Desktop Kit
This kit includes the Raspberry Pi 500 (with built-in 32GB Raspberry Pi Micro SD card), official micro HDMI to HDMI cable, official Raspberry Pi Beginner's Guide, official wired mouse, Raspberry Pi 27W USB-C Power Supply (US plug), to help users get the most out of the Raspberry Pi, which is more convenient to get started quickly with Raspberry Pi 500.
Raspberry Pi 500 Waveshare Basic Kit
This kit includes the Raspberry Pi 500 (with built-in 32GB Raspberry Pi Micro SD card), a GPIO adapter board (with screws pack), HDMI to Micro HDMI cable (2pcs), 27W Type-C power supply, USB mouse, and a card reader, which is more convenient for users to get started quickly with Raspberry Pi 500.
Raspberry Pi 500 7inch Touch Display Kit
On the basis of the Waveshare Basic Kit, this kit includes 7inch HDMI LCD (H), Type-A to Micro-B cable, and quick start sheet, suitable for application scenarios that require display and touch function.
Raspberry Pi 500 10.1inch Touch Display Kit
On the basis of the Waveshare Basic Kit, this kit includes 10.1HP-CAPLCD Monitor, Type-A to Type-C cable, and triangular stand, suitable for application scenarios that require display and touch function.
Raspberry Pi 500 13.3inch Touch Display Kit
On the basis of the Waveshare Basic Kit, this kit includes 13.3inch HDMI LCD (H) (with case) V2, 12V 1A power supply, Type-A to Micro-B cable, and quick start sheet, suitable for application scenarios that require display and touch function.
Raspberry Pi 500 15.6inch Display Kit
On the basis of the Waveshare Basic Kit, this kit includes 15.6″ Portable Monitor (no touch), Mini HDMI to Micro HDMI cable, and 5V 3A power supply, suitable for application scenarios that require display function.
For those looking for the complete Raspberry Pi 500 setup, the Raspberry Pi 500 Desktop Kit comes with a mouse, a USB-C power supply and an HDMI cable, along with the Raspberry Pi Beginner’s Guide, to help you get the most out of your new computer.
The Raspberry Pi Monitor is a 15.6inch Full-HD IPS display that can be powered directly from one of Raspberry Pi 500’s USB ports. Whether VESA-mounted or free-standing, the Raspberry Pi Monitor is a quality addition to your home computer setup.
* for reference only, please refer to the Package Content for the detailed part list.
Quick Overview
Raspberry Pi 500
Raspberry Pi 500 (with 32GB Raspberry Pi Micro SD card included) x1
Raspberry Pi 500 Desktop Kit
- Raspberry Pi 500 x1
- Raspberry Pi Micro SD card 32GB x1
- HDMI to Micro HDMI cable x1
- Official Raspberry Pi Beginner's Guide x1
- Wired USB mouse x1
- Raspberry Pi 27W USB-C Power Supply (US plug) x1
PI500-KIT-ORD
Raspberry Pi 500 Waveshare basic kit:
- Raspberry Pi 500 (built-in 32GB Raspberry Pi Micro SD card) x1
- GPIO adapter board (with screws pack) x1
- HDMI to Micro HDMI cable (2pcs) x1
- OPTIONS 27W Type-C power supply x1
- USB mouse x1
- Card reader x1
PI500-KIT-ORD-7INCH
- Raspberry Pi 500 Waveshare basic kit:
- Raspberry Pi 500 (built-in 32GB Raspberry Pi Micro SD card) x1
- GPIO adapter board (with screws pack) x1
- HDMI to Micro HDMI cable (2pcs) x1
- OPTIONS 27W Type-C power supply x1
- USB mouse x1
- Card reader x1
- 7inch HDMI LCD (H) x1
- Type-A to Micro-B cable x1
- Quick start sheet x1
PI500-KIT-ORD-10.1INCH
- Raspberry Pi 500 Waveshare basic kit:
- Raspberry Pi 500 (built-in 32GB Raspberry Pi Micro SD card) x1
- GPIO adapter board (with screws pack) x1
- HDMI to Micro HDMI cable (2pcs) x1
- OPTIONS 27W Type-C power supply x1
- USB mouse x1
- Card reader x1
- 10.1HP-CAPLCD Monitor x1
- Type-A to Type-C cable x1
- Triangular stand x1
PI500-KIT-ORD-13.3INCH
- Raspberry Pi 500 Waveshare basic kit:
- Raspberry Pi 500 (built-in 32GB Raspberry Pi Micro SD card) x1
- GPIO adapter board (with screws pack) x1
- HDMI to Micro HDMI cable (2pcs) x1
- OPTIONS 27W Type-C power supply x1
- USB mouse x1
- Card reader x1
- 13.3inch HDMI LCD (H) (with case) V2 x1
- 12V 1A power supply x1
- Type-A to Micro-B cable x1
- Quick start sheet x1
PI500-KIT-ORD-15.6INCH
- Raspberry Pi 500 Waveshare basic kit:
- Raspberry Pi 500 (built-in 32GB Raspberry Pi Micro SD card) x1
- GPIO adapter board (with screws pack) x1
- HDMI to Micro HDMI cable (2pcs) x1
- OPTIONS 27W Type-C power supply x1
- USB mouse x1
- Card reader x1
- 15.6″ Portable Monitor x1
- Mini HDMI to Micro HDMI cable x1
- 5V 3A power supply x1
