- Description
- Package Content
Details
2GT 60 Teeth Aluminum Timing Pulley, 19mm Center Bore Diameter, with 4 Flat Holes
Aluminum Timing Pulley
Lubrication-free, Low Noise, Wear Resisting, Precise Tooth Pitch
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-1.jpg)
Specifications
Material | Aluminum |
---|---|
Teeth Type | 2GT |
Teeth Numbers | 60 |
Applicable Belt width | 6 mm |
Flange Outer Diameter | 40.12 mm |
Teeth Outer Diameter | 37.68 mm |
Timing Pulley Thickness | 10 mm |
Center Bore Diameter | 19 mm |
Flat Holes Specifications | M3, 28mm diameter, four holes |

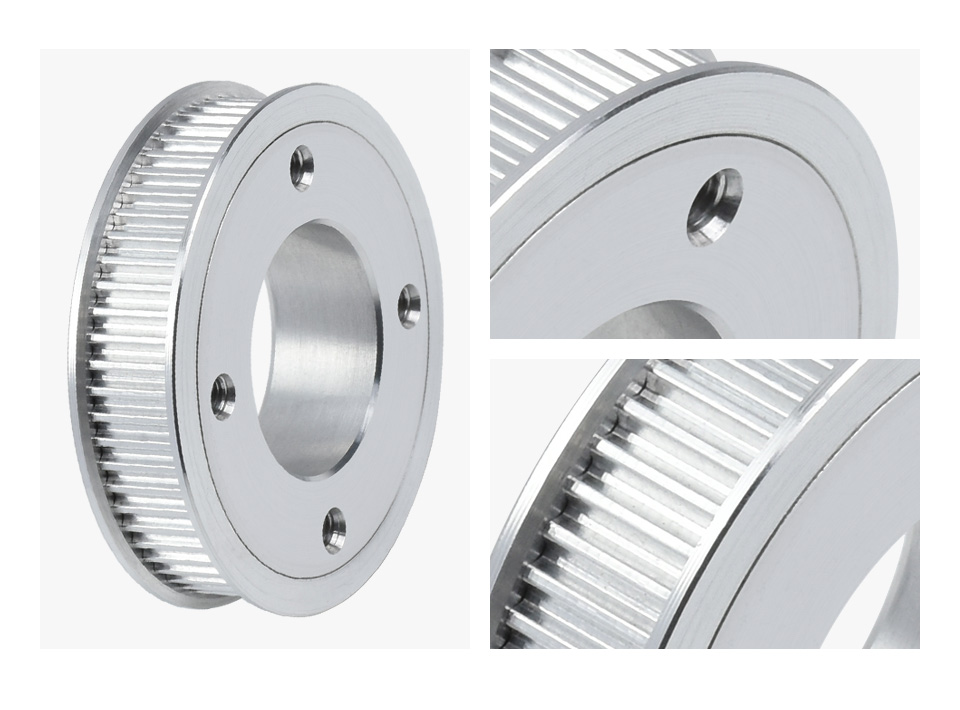

Aluminum Alloy Material
Strong Anti-corrosion performance, Lighter Weight
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-3.jpg)
19mm Center Bore Diameter
Can install two F6800ZZ flange bearings to share radial force
Rotates under heavy load
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-5.jpg)
With Four Flat Holes
Four M3 Tapping flat holes for Installing Other Parts
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-7.jpg)
for reference only, the black part is NOT included.
Used with Other Timing Pulleys
Combine into Different Reduction Groups
Combine into Different Reduction Groups
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-9.jpg)
Center Distance D (MM) Data Reference
Timing belt circumference | Timing Pulley Teeth ratio | ||
---|---|---|---|
30T:60T | 20T:60T | 16T:60T | |
140 mm | - | - | 29.5 |
160 mm | 34.5 | 38.7 | 40.4 |
200 mm | 55.0 * | 59.5 | 61.2 |
280 mm | 95.3 | 100.0 | 101.9 |
500 mm | 205.6 | 210.4 | 212.4 |
* Example: This value means using 30-tooth and 60-tooth timing pulley group with 200mm timing belt, then the center distance D is 55.0mm. |
Applications
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-11-1.jpg)
Automation Equipment
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-11-2.jpg)
Plastics Machinery
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-11-3.jpg)
Woodworking Machinery
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-11-4.jpg)
Reduction Drive Group

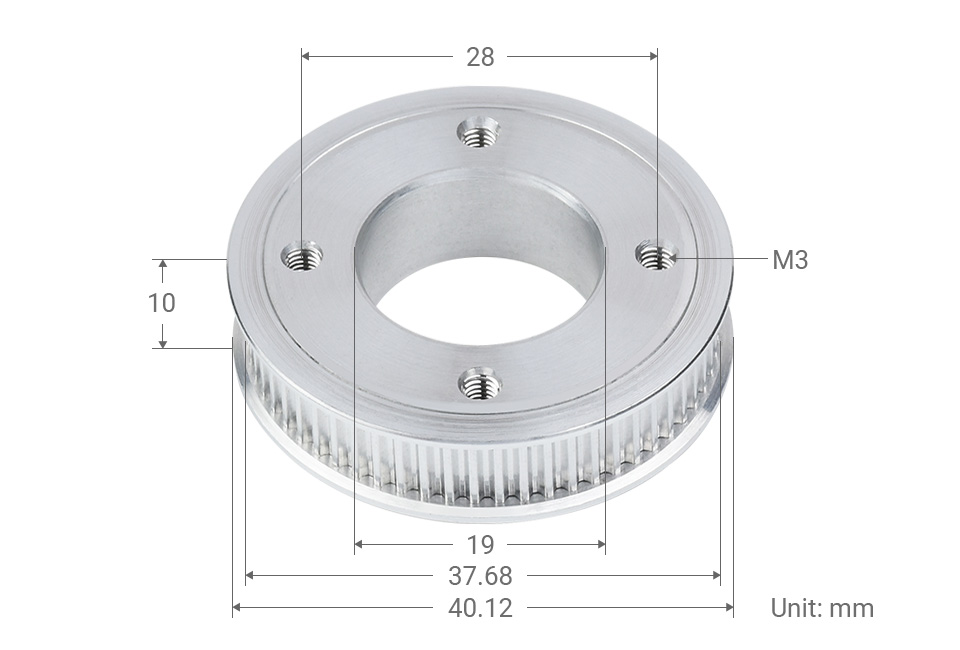

Dimensions
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-size.jpg)
Resources & Services
Weight: 0.022 kg
Quick Overview
PT-AF-2GT-60T-19B-6-A x1
![](/img/devkit/accessories/PT-AF-2GT-60T-19B-6-A/PT-AF-2GT-60T-19B-6-A-details-pack_220.jpg)
