- Description
Details

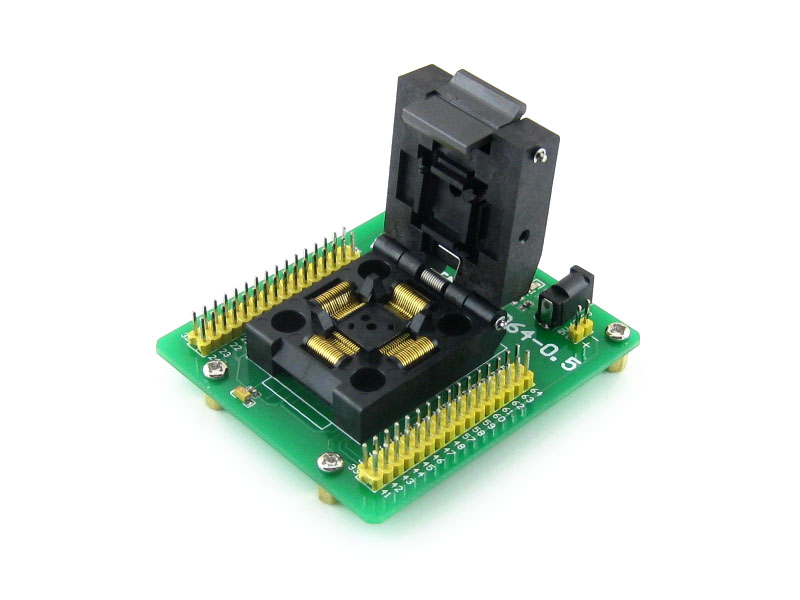

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP64(0.5mm pitch) package
Features
- 4-pin SWIM Port for programming or testing
- External crystal can be connected via on board socket
- All the MCU pins are accessible on expansion connectors
Supported Devices
STM8 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts
- STM8S207RxTx / STM8S208RxTx
- STM8Ax51x9T / STM8Ax52x9T / STM8Ax61x9T / STM8Ax62x9T
Photos
- External crystal socket
- insert crystal to the holes on two sides, regardless of the middle hole
- SWIM port
- for programming/debugging/testing
- compatible with ST-LINK, ST-LINK/V2, etc.
- Pin headers connected to MCU pins
- clearly labeled with onboard marks
- easy for testing and further expansion
- Power indicator
- Power input
- DC5V/3.3V
Outline and Dimensions
Unit: mm
| Part Number | Pitch | Pins | Applicable IC Dimensions (REF.) | Outside Dimensions (REF.) | |||
|---|---|---|---|---|---|---|---|
| A x B | C x D | E | F | G x H | |||
| IC51-0644-807 | 0.5 | 64 | 10.0 x 10.0 | 12.0 x 12.0 | 11.3 | - | 32.0 x 35.0 |
 |
|||||||
SWIM Port Header Pinout
The STM8-QFP64-0.5 houses SWIM headers for connecting a programmer. The header pinouts are shown in the figure 1 below.
Figure 1. SWIM header pinout
Downloads
Development resources:schematic, etc.
Wiki:
www.waveshare.com/wiki/STM8-QFP64-0.5
Weight: 0.081 kg
Quick Overview
- STM8-QFP64-0.5 × 1
- USB power cable × 1
