Details
Yamaichi IC Test & Burn-in Socket, for QFP100/TQFP100/FQFP100/PQFP100 package
Features
- High quality and durable
- Tested before shipping
- Easy to use
Applicable Devices
- Package
- QFP100
- TQFP100
- FQFP100
- PQFP100
- Pitch: 0.5mm
Socket PN
- IC51-1004-809-23
Download

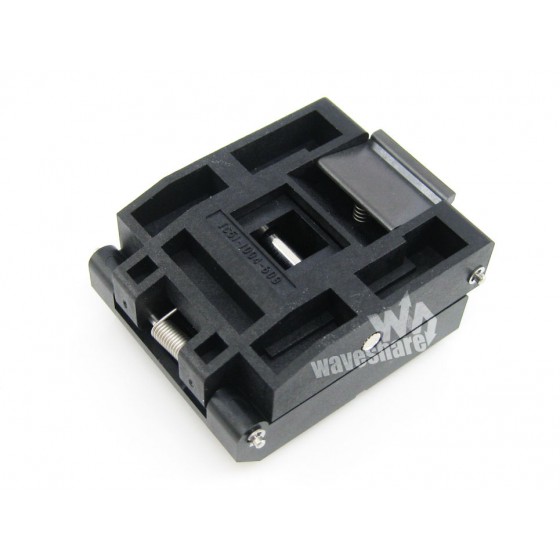

Photos
- There are two versions for this socket, IC51-1004-809 and IC51-1004-809-23, which are fully compatible with each other.
- The socket is delivered randomly, we don't know in advance which one will be delivered for your order.
Version A
 |
 |
 |
Version B
|
 |
 |
Outline and Dimensions
Unit: mm
| Part Number | Pitch | Pins | Applicable IC Dimensions (REF.) | Outside Dimensions (REF.) | |||
|---|---|---|---|---|---|---|---|
| A x B | C x D | E | F | G x H | |||
| IC51-1004-809-23 | 0.5 | 100 | 14 × 14 | 16 × 16 | 15.3 | - | 39 × 39 |
 |
|||||||
Weight: 0.034 kg
Quick Overview
- IC51-1004-809 or IC51-1004-809-23 Socket × 1
