QFN40 TO DIP40, Programmer Adapter
TO DIP

QFN40 TO DIP40, Programmer Adapter

SKU:6884
Part No.:QFN40 TO DIP40
Brand:Plastronics

$101.99
PriceQuantity
1
$99.992
$98.993
$97.994+
Share:
Description

Details

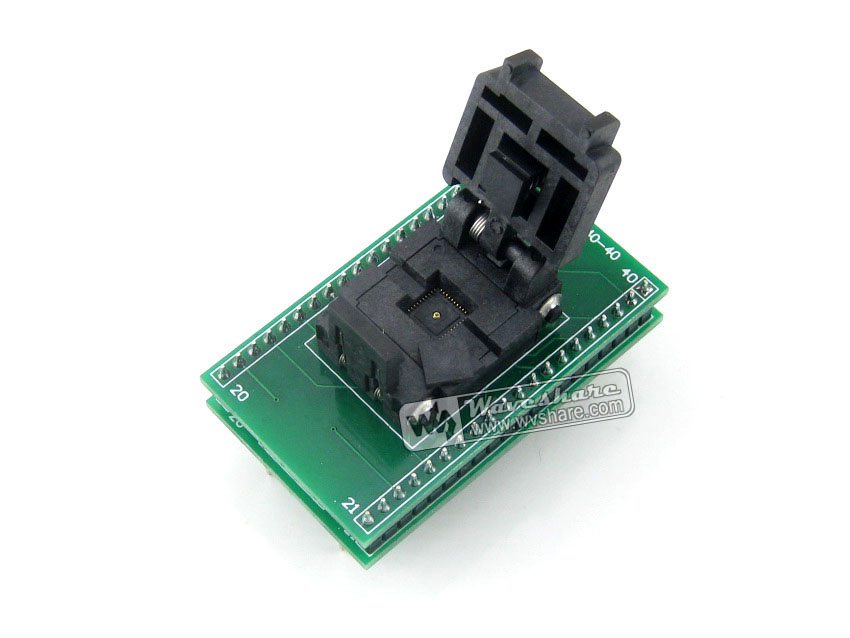

Plastronics IC Test Socket & Programming Adapter for QFN40 MLF40 MLP40 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Applicable Devices

  • Package
    • QFN40
    • MLF40
    • MLP40
  • Pitch: 0.5mm

Socket PN

  • 40QN50S16060

Download

Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil (1.52cm)

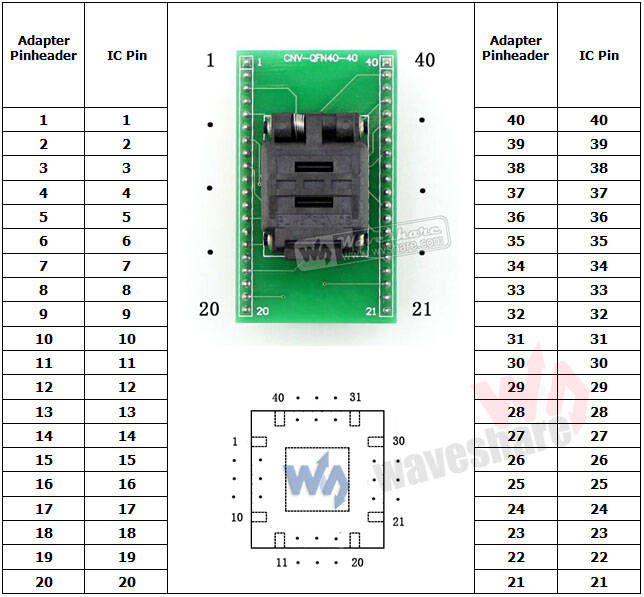

Pinout Mapping



Outline and Dimensions

Unit: mm
Part NumberPitchPinsApplicable IC Dimensions (REF.)Outside Dimensions (REF.)Ground Pin
A x B
40QN50S16060 0.5 40 6 x 6 27.34 x 20.32 Yes

Weight: 0.026 kg

Quick Overview

  • QFN40 TO DIP40 adapter × 1
