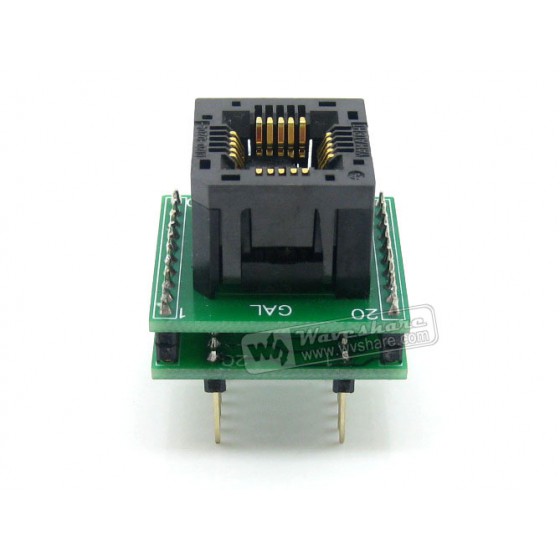

PLCC20 TO DIP20, Programmer Adapter
TO DIP

PLCC20 TO DIP20, Programmer Adapter

SKU:3812
Part No.:PLCC20 TO DIP20
Brand:Yamaichi

$24.99
PriceQuantity
$23.992+
$23.993+
$23.994+
Share:
Description

Details

Yamaichi IC Programmer Adapter for PLCC20 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Supported Devices

  • Package
    • PLCC20
  • Pitch: 1.27mm

Socket PN

  • IC120-0204-205

Download

DIP Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil (1.52cm)

Pinout Mapping

Outline and Dimensions

Unit: mm
Part Number Pitch Pins Socket Dim. Inserting Direction of IC
A B C
IC120-0204-205 1.27 20 20 20 18 Dead-bug type

Weight: 0.016 kg

Quick Overview

  • PLCC20 TO DIP20 adapter × 1
