Details
Supports 5G NSA And SA Networking, GNSS Positioning
* for reference only, Raspberry Pi board is NOT included

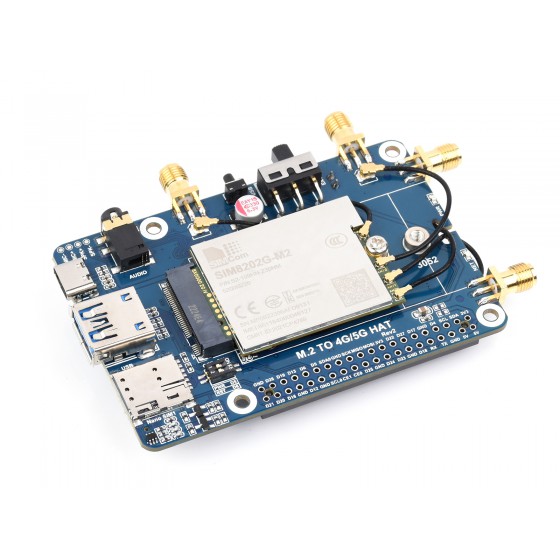

- Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
- Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
- Operating system support: Windows/Linux/Android
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
- Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
- Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
- Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
- Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
- 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
- 2x SIM card slot, dual card single standby, switchable via AT command
- Onboard audio jack and audio decoder, allows audio operation like making phone call
- High efficiency power supply circuit, up to 3A output current
Without Case
With Case
| SIM8200EA-M2 | SIM8202G-M2 | SIM8262E-M2 | SIM8262A-M2 | |
|---|---|---|---|---|
| 5G Standard | 3GPP R15 | 3GPP R16 | ||
| Chip | Qualcomm Snapdragon X55 | Qualcomm Snapdragon X62 | ||
| Frequency band | ||||
| Sub-6G | n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78 | n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79 | n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79 |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B1,B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71 | |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | B38, B39, B40, B41, B42, B43 | B38,B41,B42,B43, B46, B48 | |
| WCDMA | B1, B2, B3, B4, B5, B8 | B1, B5, B8 | B1,B2,B4,B5,B8 | |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | |||
| Data rate | ||||
| Sub-6G | 2.4 Gbps (DL) / 500 Mbps (UL) | |||
| LTE | 1 Gbps (DL) / 200 Mbps (UL) | |||
| HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) | |||
| Software functions | ||||
| Operating systems | Windows/Linux/Android | |||
| Communication protocols | TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 | |||
| Dial Up | RNDIS、NDIS、PPP、MBIM | |||
| SMS | Supports MT, MO, CB, Text, PDU | |||
| Firmware upgrade | Supports firmware upgrade via USB port | |||
| Hardware Specifications | ||||
| SIM Card | 1.8V/2.95V | |||
| Antenna | For 3G/4G/5G/GNSS | |||
| 6 × IPEX-4 connectors | 4 × IPEX-4 connectors | |||
| Power Supply | 3.135~4.4V | |||
| Form Factor | M.2 | |||
| Dimensions | 52.0 × 30.0 × 2.3 mm | 42.0 × 30.0 × 2.3 mm | ||
| Operating Temperature | -30℃ ~ +70℃ | |||
| Applications | ||||
| Applicable regions | except Americas | Americas | ||
| The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands | ||||
| Application examples | CPE, Smart gateway, Live streaming, Remote medical treatment, Intelligent security | |||
applicable for most of the countries and regions
Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.
supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...
Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use
for Windows PC or Jetson Nano series, use a USB cable
for Raspberry Pi 4B/3B+, or CM4-IO-BASE-A/B, use the purpose-made USB adapter
supports GPS, Beidou, Glonass, Galileo, QZSS
allows using AT commands to make phone call or send SMS
compatible with Raspberry Pi series and Jetson Nano, stackable design for more HATs
better heat dissipation for both Raspberry Pi and the 5G module
Multi Installation Methods, Convenient For Various Application Scenarios Such As Industry
* The case is optional and only suitable for Raspberry Pi 4B, please choose a proper option before placing order
5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.
5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.
Quick Overview
- OPTIONS Protection case kit x1
- M.2 TO 4G/5G HAT x1
- OPTIONS SIM82XX-M2 5G module x1
- Antenna 4pcs x1
- IPEX adapter cable 4pcs x1
- 2*20PIN pin header x1
- Passive GPS antenna x1
- Dual plug USB3.0 cable x1
- USB3.0 adapter x1
- USB2.0 adapter x1
- SMA protective cap 4pcs x1
- Screws pack x1
