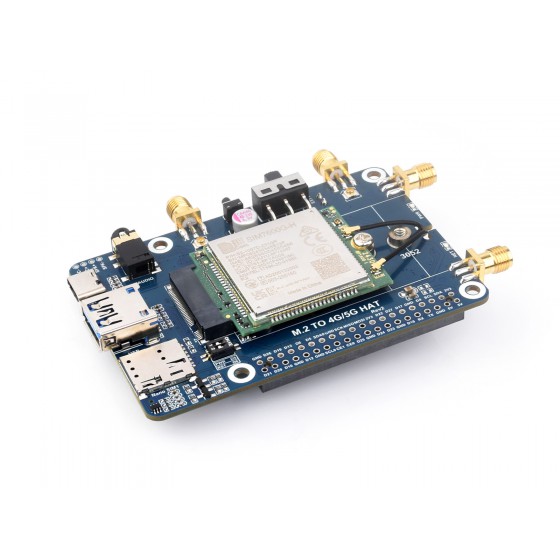

SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 High Speed, 4G/3G/2G, GNSS, Global Band

SKU:21707
Part No.:SIM7600G-H-M2 4G HAT
Brand:Waveshare

$79.99
PriceQuantity
$78.992+
$78.493+
$78.294+
Related Products:
Description

Details

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 high speed, global coverage multi band, 4G/3G/2G compatible, GNSS
SIM7600G-H M.2 4G HAT for Raspberry Pi

4G/3G/2G communication and GNSS positioning, global band

Features at a glance

This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.

  • Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
  • GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
  • Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • High efficiency power supply circuit, up to 3A output current
Module Specifications
Frequency band
LTE Cat-4 LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41
3G UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2G GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS
Satellite systems GPS, Beidou, GLONASS, GALILEO, QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS and Audio
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
Global band 4G/3G/2G support

LTE Cat-4: up to 150Mbps (downlink) / 50Mbps (uplink)
3G (HSPA+): up to 42Mbps (downlink) / 5.76Mbps (uplink)
2G (GPRS/EDGE): up to 236.8Kbps (downlink) / 236.8Kbps (uplink)

Multi system support, easy to use

supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use

Connection examples

for Windows PC or Jetson Nano series, use a USB cable
for Raspberry Pi 4B/3B+, or CM4-IO-BASE-A/B, use the purpose-made USB adapter

connecting with Raspberry Pi 4B

connecting with Raspberry Pi 3B+

connecting with CM4 IO Base

Cloud Communication

supported communication protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...

GNSS positioning

supports GPS, Beidou, Glonass, Galileo, QZSS, and LBS base station positioning

Phone Call & SMS support

allows using AT commands to make phone call or send SMS

Standard Raspberry Pi 40PIN GPIO header

compatible with Raspberry Pi series and Jetson Nano, stackable design for more HATs

* for reference only, please check the Package Content section for exact part list.
High speed cooling fan

better heat dissipation for both Raspberry Pi and the 4G module

Standard M.2 B KEY slot

Compatible with SIM7600X-M.2, SIM7906X-M.2, A7906X-M.2 series modules

SIM7906X-M.2

A7906X-M.2


What's On Board
  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. DIP switches
    Enables the power control and reset pins
  3. M.2 slot
    Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor
  4. SIM card slot 1
    one of the 2x SIM card slots, dual card single standby
  5. USB3.1 port
    USB 2.0 compatible, for connecting with different hosts
  6. USB Type-C port
    5V 3A input, stable and flexible power supply
  7. Audio jack
    SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function
  1. Antenna connector
    Supports quad antennas
  2. Reset button
  3. Power supply switch
    Switch the power supply mode:
    When set to USB, the module is powered via the "5. USB3.1 port"
    When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port"
  4. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
  5. Indicator
    Easy to monitor the operating status of module
  1. SIM card slot 2
    Switchable via AT command
  2. Module settings switch
    Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
    Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
    Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules
  1. USB 2.0 interface pads
  2. NAU8810X Audio Chip
    For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function
  3. Fan Header
    5V cooling fan power supply

Outline Dimensions
Resources & Services
Comparing the SIM7600 series
SIM7600A-H SIM7600SA-H SIM7600E-H SIM7600NA-H SIM7600G-H
Form factor M.2
Dimensions 42.0 × 31.4 × 3.8 (mm)
Freq.
band
LTE-FDD B2, B4, B12 B1, B2, B3, B4, B5, B7, B8, B28, B66 B1, B3, B5, B7, B8, B20 B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD B40 B38, B40, B41 B41 B34, B38, B39, B40, B41
WCDMA B2, B5 B1, B2, B5, B8 B1, B5, B8 B1, B2, B4, B5, B6, B8, B19
GSM 850, 900, 1800, 1900MHz 900, 1800MHz 850, 900, 1800, 1900MHz
GNSS GPS, Beidou, GLONASS, GALILEO, QZSS
Applicable regions North America (AT&T) Australia, New Zealand, Taiwan, Latin America Europe, the Middle East, Africa, South Korea, Thailand North America (all providers) Global
Comes with SIM7600G-H module by default, for other modules or hardware customization, feel free to contract us.

Weight: 0.215 kg

Quick Overview

  1. M.2 TO 4G/5G HAT x1
  2. SIM7600G-H-M.2 x1
  3. Antenna 2pcs x1
  4. IPEX adapter cable 2pcs x1
  5. 2*20PIN pin header x1
  6. Passive GPS antenna x1
  7. Dual plug USB3.0 cable x1
  8. USB3.0 adapter x1
  9. USB2.0 adapter x1
  10. SMA protective cap 2pcs x1
  11. Screws pack x1
