Active Digital Isolation Serial Converter
Serial port conversion for industrial, agricultural, IoT, etc.
RS232 TO RS485 (B)
without LED indicator

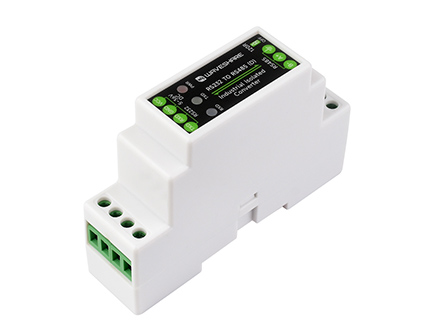

RS232 TO RS485 (D)
with LED indicators
- Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal
- Stable transmission at the rate of 300~115200bps
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance
- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
| RS232 TO RS485 (B) without LED indicator |
RS232 TO RS485 (D) with LED indicators |
|
| Product Type | Active electromagnetic isolated RS232 TO RS485 asynchronous bi-directional converter | |
| Power supply interface | 6~36V DC | 5V~36V DC |
| with anti-reverse protection | ||
| Baudrate | 300 ~ 115200bps | |
| Device Port | RS232/RS485 standard compatible | |
| RS232 port | ||
| Connector | screw terminal | |
| Protection | signal filtering, anti-interference | signal filtering, anti-interference, ESD protection |
| Transmission distance | about 15m | |
| Transmission mode | point-to-point | |
| RS485 port | ||
| Connector | screw terminal | |
| Direction control | Hardware automatic control | |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
| Terminal resistor | 120R, switchable | |
| Transmission Distance | about 1.2km | |
| Transmission Mode | point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Indicators | ||
| PWR | - | Red power indicator, lights up when there is power supply connection and voltage is detected |
| TXD | - | Green TX indicator, lights up when the RS232 port sends data |
| RXD | - | Blue RX indicator, lights up when the device port sends data back |
| Appearance | ||
| Case | Rail-mount ABS case | |
| Dimensions | 91.6 × 23.3 × 58.7mm | |
Converting the RS232 signal into balanced differential RS485 signal
for interface converting, expanding nodes and long-distance communication
Stable transmission on rate of 300~115200bps, about 1200m transmission distance of RS485, about 15m transmission distance of RS232
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock proof performance.
RS232 TO RS485 (B)
| Top side screw terminal | Bottom side screw terminal | ||
|---|---|---|---|
| VCC | Power Input DC 6~36V power supply |
120R | 120R resistor switch |
| GND | Ground / RS232 signal ground | SGND | RS485 signal ground |
| TXD | RS232 transmit data pin | A+ | RS485 differential signal A+ |
| RXD | RS232 receive data pin | B- | RS485 differential signal B- |

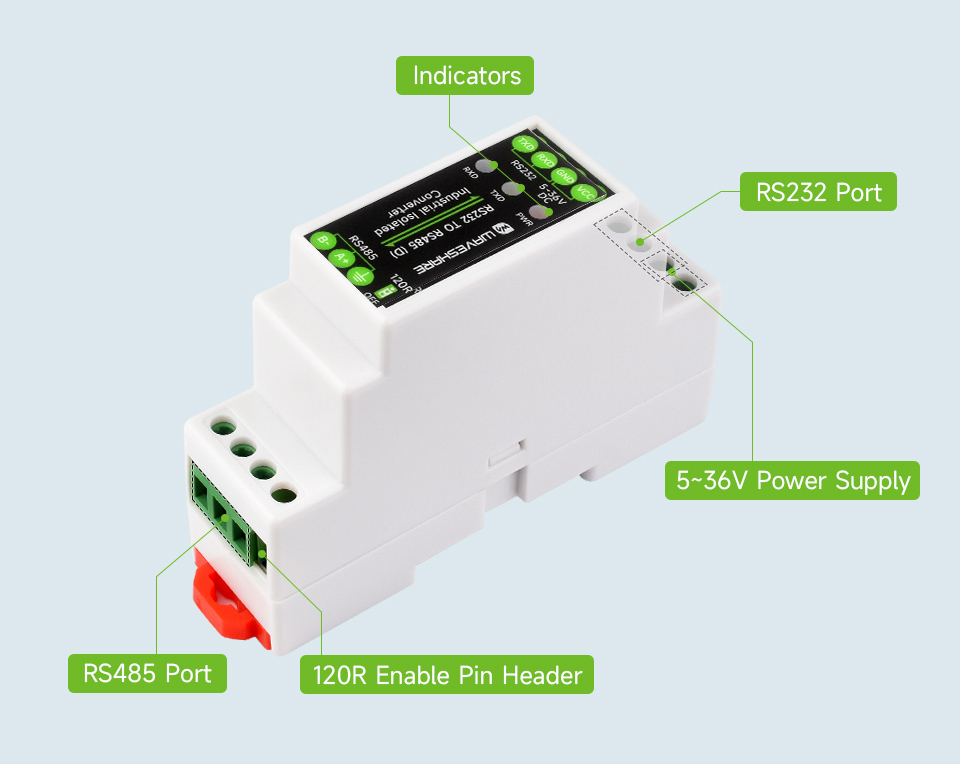

RS232 TO RS485 (D)
| Top side screw terminal | Bottom side screw terminal | ||
|---|---|---|---|
| VCC | Power Input DC 5~36V power supply |
120R | 120R enable pin header |
| GND | Ground / RS232 signal ground | SGND | RS485 signal ground |
| TXD | RS232 transmit data pin | A+ | RS485 differential signal A+ |
| RXD | RS232 receive data pin | B- | RS485 differential signal B- |
RS232 To RS485 Conversion
Access to a host, PLC or other devices with RS232 port, the RS232 can be converted to RS485 port for point-to-point half-duplex communication with external RS485 devices.
Access to a host, PLC or other devices with RS232 port, the RS232 can be converted to RS485 port for point-to-multipoints half-duplex communication with external RS485 devices.
The RS232 TO RS485 converter can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial Automation and IoT.
Quick Overview
RS232 TO RS485 (B)
- RS232 TO RS485 (B) x1
- Screwdriver x1
RS232 TO RS485 (D)
- RS232 TO RS485 (D) x1
- Screwdriver x1
