Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96x48 pixels, adjustable brightness and bendable PCB
LED / Buttons

Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96x48 pixels, adjustable brightness and bendable PCB

SKU:23709
Part No.:RGB-Matrix-P2.5-96x48-F
Brand:Waveshare

$30.99
PriceQuantity
1~9
$29.7910~49
$29.1950~99
$28.95100+
Related Products:
Share:
Description

Details

Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96×48 pixels, adjustable brightness and bendable PCB

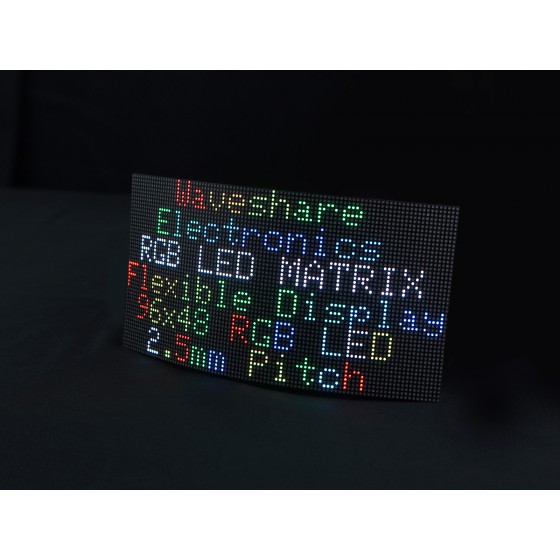

96×48 flexible RGB LED matrix panel

4608 individual RGB LEDs, 2.5mm pitch, flexible PCB

supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...

* The flexible PCB can be gently bent but do not bend it excessively or repeatedly,
otherwise, it is easy to be damaged


Features at a glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

  • 4608 individual RGB LEDs, full-color display, adjustable brightness
  • Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface
  • 96×48 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
  • 240×120mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications
Dimensions 240mm × 120mm
Pixels 96×48=4608 DOTS
Pitch 2.5mm
Pixel form 1R1G1B
Viewing angle ≥140°
Control type synchronization
Driving 1/24 scan
Header HUB75
Power supply 5V / 4A (VH4 header input)
Power ≤20W

Header definition
* this back view is for reference only
PCB silkscreen and layout may have small differences from batch to batch, but software is compatible.
Pin Description Pin Description
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable

chainable design

multi LED matrix panel can be chained together to build a larger panel
via HUB75 input/output header



Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.

Application Example

Usage scenarios

Flexible PCB material, lighter and thinner, can be gently bent and suitable for some cylindrical, circular and curved surfaces, or other creative LED display shapes


Product Show

Dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide
PART NUMBER PIXELS PITCH VIEWING ANGLE POWER SUPPLY DRIVING DIMENSIONS(mm) Flexible
RGB-Matrix-P2-64x64 64×64 2mm ≥140° 5V/3A 1/32 scan 128×128 -
RGB-Matrix-P2.5-64x32 64×32 2.5mm ≥140° 5V/2.5A 1/16 scan 160×80 -
RGB-Matrix-P2.5-64x64 64×64 2.5mm ≥140° 5V/4A 1/32 scan 160×160 -
RGB-Matrix-P2.5-96x48-F 96×48 2.5mm ≥140° 5V/4A 1/24 scan 240×120 √
RGB-Matrix-P3-64x32 64×32 3mm ≥160° 5V/2.5A 1/16 scan 192×96 -
RGB-Matrix-P3-64x64 64×64 3mm ≥160° 5V/4A 1/32 scan 192×192 -
RGB-Matrix-P3-64x64-F 64×64 3mm ≥140° 5V/4A 1/32 scan 192×192 √
RGB-Matrix-P4-64x32 64×32 4mm ≥160° 5V/4A 1/16 scan 256×128 -
RGB-Matrix-P5-64x32 64×32 5mm ≥140° 5V/4A 1/16 scan 320×160 -

Weight: 0.272 kg

Quick Overview

  1. RGB-Matrix-P2.5-96x48-F LED matrix and accessories x1
  2. Power supply terminal adapter x1
  3. 16P wire ~30cm x1
It is recommended to used with a 5V 4A power supply
