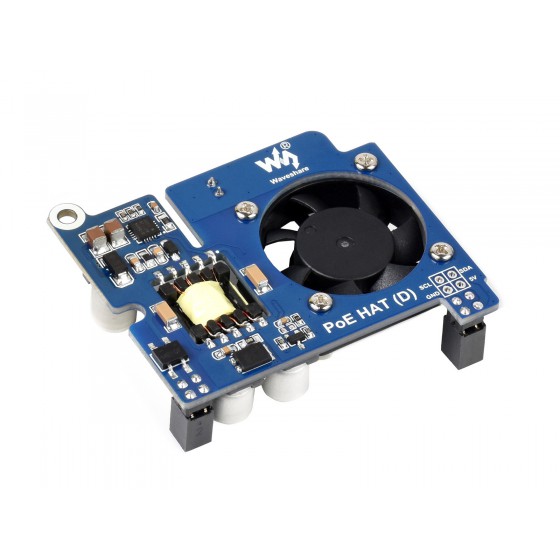

Power Over Ethernet HAT (Type D) For Raspberry Pi 3B+/4B, 802.3af-compliant, tailored for Raspberry Pi official case
POE HAT for Raspberry Pi
Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af-compliant
Tailored for Raspberry Pi official case
Features at a glance
The PoE HAT (D) is an 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
- PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, better heat dissipation
Specifications
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | 5V 2.5A DC out |
| Network standard | IEEE 802.3af PoE |
| Dimensions | 58.90 × 54.92mm |
For use with Raspberry Pi 3B+/4B
Compatible with official case
Raspberry Pi official 4B case (left) and Raspberry Pi official 3B+ case (right)
Application example
Power Over Ethernet
providing both network connection and power supply for your Raspberry Pi in one cable
Raspberry Pi, official cases, and PoE equipment are NOT included.
Active Cooling fan
Onboard resources
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
| Product | Supported Pi | PoE standard | PoE power output | Feature |
|---|---|---|---|---|
| Raspberry Pi PoE+ HAT | Pi 3B+/4B | 802.3af/at | 5V 4A | Raspberry Pi official (second generation) |
| PoE HAT (B) | 802.3af | 5V 2.5A | with OLED display, cost effective | |
| PoE HAT (C) | 802.3af/at | 5V 4A / 12V 2A | high power, cost effective | |
| PoE HAT (D) | 802.3af | 5V 2.5A | tailored for Raspberry Pi official case, cost effective | |
| PoE HAT (E) | 802.3af | 5V 2.5A | mini body, tailored for Raspberry Pi official case, cost effective | |
| PoE HAT (F) | Pi 5 | 802.3af/at | 5V 4.5A / 12V 2A | with metal heatsink, high power, cost effective |
| PoE HAT (G) | 802.3af/at | 5V 5A (MAX) | compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective |
Weight: 0.029 kg
Quick Overview
- PoE HAT (D) x1
- Standoffs pack x1
