Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control

SKU:26739
Part No.:USB TO TTL (C)
Brand:Waveshare

$7.99
PriceQuantity
$7.392+
$7.093+
$6.974+
Related Products:
Description

Details

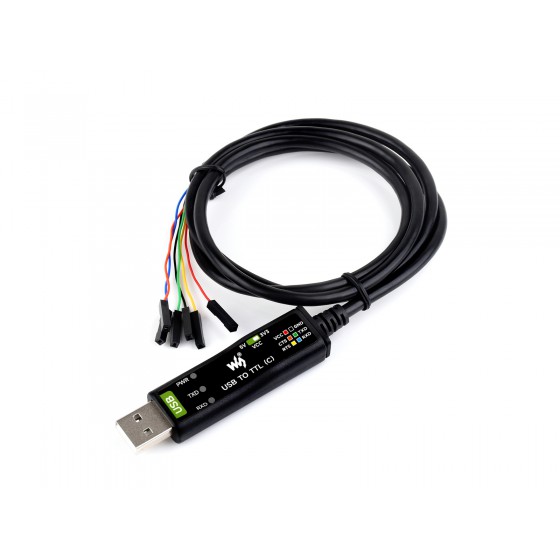

Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control
Industrial USB to TTL serial cable Type C

Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems

Suitable for serial port debugging of industrial equipments, with hardware flow control

Industrial USB TO TTL 6pin serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc.


Specifications
Product category Industrial USB TO TTL serial cable
Chip scheme FTDI original FT232RNL
Host port USB
Data rate 300bps ~ 3Mbps
Device Port UART
USB port Connector: USB-A
Protection: self-recovery fuse, ESD protection
UART port Connector: separated 6pin female header
Protection: IO protection diode
Indicator PWR: power indicator, turns on when there is USB connection and voltage is detected
TXD: TX indicator, turns on while the USB port is sending data
RXD: RX indicator, turns on while the device port is sending data back
Cable Black, PVC sheath, total length 1m

Onboard Original Chips

Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility

Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...


Three LED Indicators

Easily checking the operating status, convenient for programming / debugging


Pinouts Definition
VCC 3.3V or 5V output, configured by switch
GND Ground
TXD Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)
RXD Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)
RTS Connecting to MCU.CTS (signal direction: MCU.CTS < < FT232 < < PC.RST)
CTS Connecting to MCU.RTS (signal direction: MCU.RTS > > FT232 > > PC.CTS)

Outline dimensions

* The above dimensions are measured manually and may have some errors


Resources & Services
Selection guide
PartnumberUSB TO TTLUSB TO TTL (B)USB TO TTL (C)USB TO TTL (D)
PRODUCT CATEGORY Industrial USB TO TTL converter Industrial USB TO TTL serial cable
Chip FT232 CH343G FT232
Data rate 300bps ~ 3Mbps 50bps ~ 6Mbps 300bps ~ 3Mbps
Hardware flow Supported Not supported
OS support Win7/8/8.1/10/11, Mac, Linux, Android
USB port Connector: USB-A
Protection: resettable fuse, ESD protection
UART port Connector: 8PIN fool-proof header
Protection: IO protection diode
Connector: separated 6pin female header
Protection: IO protection diode
Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector
Protection: IO protection diode
Indicators PWR: power indicator, turns on when there is USB connection and voltage is detected
TXD: TX indicator, turns on while the USB port is sending data
RXD: RX indicator, turns on while the device port is sending data back

Weight: 0.034 kg

Quick Overview

USB TO TTL (C) x1
