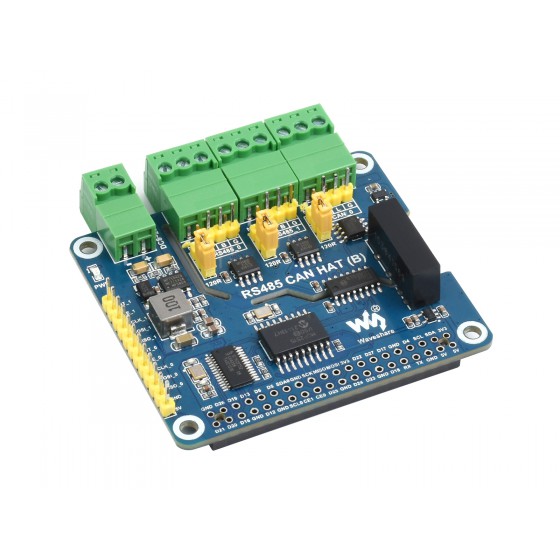

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections

SKU:23227
Part No.:RS485 CAN HAT (B)
Brand:Waveshare

$21.99
PriceQuantity
$21.392+
$21.093+
$20.974+
Related Products:
Description

Details

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections
Isolated RS485 CAN HAT (B) for Raspberry Pi

2-Ch RS485 and 1-Ch CAN, SPI communication

Bulit-in power supply isolation, magnetical isolation, and TVS diode, etc.


Features at a glance
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
  • 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
  • Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
  • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
  • Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Onboard 120Ω terminal resistor, configured by jumper
  • Onboard terminals and pin headers, more convenient connection
  • Breakout SPI control pins, for connecting with host control boards
Specifications
Expanded interface 2-Ch RS485 + 1-Ch CAN
COMMUNICATION INTERFACE SPI
CAN Controller MCP2515
CAN transceiver SIT65HVD230DR/SN65HVD23D
CAN Baud Rate ≦1Mbps
UART Expansion Chip SC16IS752
RS485 transceiver SP3485
RS485 Baud Rate 300~921600 bps
Power Supply External power supply terminal OR Raspberry Pi
External power supply Range DC 8~28V
Operating Voltage 3.3V
Dimensions 65 × 56.5 mm

What Can It Do?

Enable Isolated And Stable RS485 And CAN Capability For Your Raspberry Pi


Connect to Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

Expand 1-Ch CAN and 2-Ch RS485

CAN: adopts controller MCP2515 with CAN transceiver
RS485: adopts SC16IS752 and SP3485 dual-chip combination

Industrial Grade Isolation Protection
  • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
  • Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
What's On Board

Chip Features

  1. MCP2515
    CAN controller
  2. SIT65HVD230DR/SN65HVD23D
    CAN transceiver
  3. SP3485
    RS485 transceiver
  4. SC16IS752
    UART expansion
  5. π163M31
    digital isolator
  6. B0505LS-1W
    Power supply isolation

Others

  1. Power supply interface
    DC 8~28V, can power the HAT and Raspberry Pi
  2. RS485 bus interface
    Connect via screw terminals/pin header
  3. CAN bus interface
    Connect via screw terminals/pin header
  4. Raspberry Pi GPIO header
  5. SPI control header
    for connecting with host boards like STM32/Arduino
  6. CAN terminal resistor jumper
    Switch to 120Ω by default
  7. RS485 Terminal resistor jumper
    Switch to 120Ω by default
  8. Power Indicator
Pin Definition
Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.05 kg

Quick Overview

  1. RS485 CAN HAT (B) x1
  2. 2x20PIN female header x1
  3. Screws pack x1
1
2
3
