5G Sub-6 GHz Module Designed for IoT/eMBB Applications
Industrial-grade modules for industrial and commercial applications
RM500U-CNV

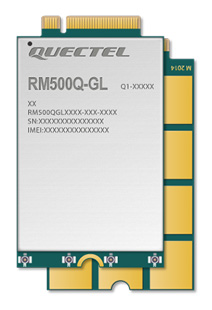

RM500Q-GL

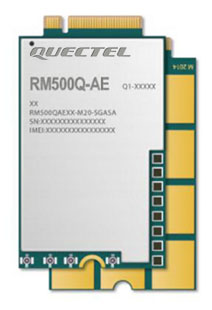

RM500Q-AE
RM502Q-AE
- Designed for IoT/eMBB Applications, support 5G/4G/3G
- Full coverage of multi network standards including 5G and LTE-A
- Support NSA and SA modes
- Integrated multi-constellation GNSS receiver to meet the requirement for fast and accurate positioning in different environments
- Support multi functions: DFOTA and VoLTE.etc
M.2 Form Factor
RM50x series adopts the 3GPP Release 15 technology and supports 5G standalone (SA) and non-standalone (NSA) modes. Designed in an M.2 form factor, RM50x series modules are compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 modules EM12-G/EM120R-GL/EM121R-GL, and Cat 16 module EM160R-GL, which facilitate the migration from LTE-A to 5G.
Worldwide Mainstream Carriers Coverage
The RM50x series nearly covers all the mainstream carriers worldwide. Integrated GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and makes positioning capabilities quicker and more accurate. (RM500U-CNV does not support GNSS.)
Built-in rich network protocols
Integrates multiple industry-standard interfaces and supports multiple drivers and software functions (such as Windows7, 8, 8.1, 10, USB/PCIe drivers under Linux, Android.etc), which greatly expands its application in IoT and eMBB fields including Industrial Routers, Home Gateways, Set Top Box, industrial laptops, consumer laptops, Industrial PDAs, Rugged Industrial Tablet PCs, Cameras and Surveillance and Digital Signage.

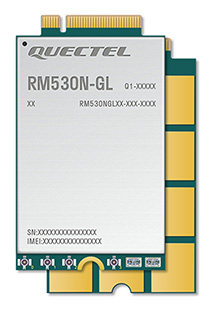

| 5G Sub-6 | RM500U-CNV | RM500Q-GL | RM500Q-AE | RM502Q-AE | RM520N-GL | RM530N-GL | |
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
||
| 5G Standard | 3GPP R15 | 3GPP R16 | |||||
| 5G | Sub-6 GHz | Sub-6 GHz & mmWave | |||||
| Region / Provider | China, EMEA, Asia-Pacific | Global (except US) | Global (except China) | Global | |||
| Operating temperature | -30 °C ~ +75 °C | ||||||
| Extension temperature | -40 °C ~ +85 °C | ||||||
| Dimensions | 30.0 × 52.0 × 2.3mm | ||||||
| Weight | 8.9 (g) | 8.7 (g) | 8.9 (g) | ||||
| Power supply | 3.3~4.4 V, typical 3.7 V | 3.135~4.4 V, typical 3.7 V | |||||
| Power consumption | 78 μA @ shutdown 5.1 mA @ hibernate 57mA @ USB 2.0, idle 71mA @ USB 3.0, idle |
70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle |
80 μA @ shutdown 4.2 mA @ hibernate 39 mA @ USB 2.0, idle 54.5 mA @ USB 3.0, idle |
195 μA @ shutdown 4.7 mA @ hibernate 41 mA @ USB 2.0, idle 60 mA @ USB 3.0, idle |
173 μA @ shutdown 5.1 mA @ hibernate 51 mA @ USB 2.0, idle 69 mA @ USB 3.0, idle |
||
| Frequency band | |||||||
| 5G | 5G NR | - | n257, n258, n260, n261 | ||||
| 5G NR NSA | n41, n78, n79 | n41, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||
| 5G NR SA | n1, n2, n3, n5, n8, n28, n41, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | ||||
| LTE | LTE-FDD | B1, B3, B5, B8 | B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | ||||
| LTE-TDD | B34, B38, B39, B40, B41 | B34, B38, B39, B40, B41, B42, B43, B48 | |||||
| LAA | - | B46 | |||||
| UMTS | WCDMA | B1, B5, B8 | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | |||
| GNSS | - | GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (only supported by RM520N-GL and RM530N-GL) | |||||
| Data rate | |||||||
| 5G mmWave | - | downlink 4 Gbps; uplink 1.4 Gbps |
|||||
| 5G SA Sub-6 | downlink 2 Gbps; uplink 1 Gbps |
downlink 2.1 Gbps; uplink 900 Mbps |
downlink 2.1 Gbps; uplink 450 Mbps |
downlink 4.2 Gbps; uplink 450 Mbps |
downlink 2.4 Gbps; uplink 900 Mbps |
||
| 5G NSA Sub-6 | downlink 2.2 Gbps; uplink 575 Mbps |
downlink 2.5 Gbps; uplink 600/650 Mbps |
downlink 2.5 Gbps; uplink 650 Mbps |
downlink 5 Gbps; uplink 650 Mbps |
downlink 3.4 Gbps; uplink 550 Mbps |
||
| LTE | downlink 600 Mbps; uplink 150 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 2 Gbps; uplink 200 Mbps |
downlink 1.6 Gbps; uplink 200 Mbps |
||
| UMTS | downlink 42.2 Mbps; uplink 11 Mbps |
downlink 42 Mbps; uplink 5.76 Mbps |
|||||
Industrial Routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, Rugged Industrial Tablet PCs, and digital signage...
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Quick Overview
OPTIONS 5G Module x1
