16mm Telephoto Lens for Raspberry Pi High Quality Camera

SKU:18040
Part No.:16mm Telephoto Lens for Pi

$60.99
PriceQuantity
$60.192+
$59.793+
$59.634+
Related Products:
Description

Details

Quality Industrial Telephoto Lens, 16mm Focal Length, Multi Field Angle, C-mount, Compatible with Raspberry Pi High Quality Camera

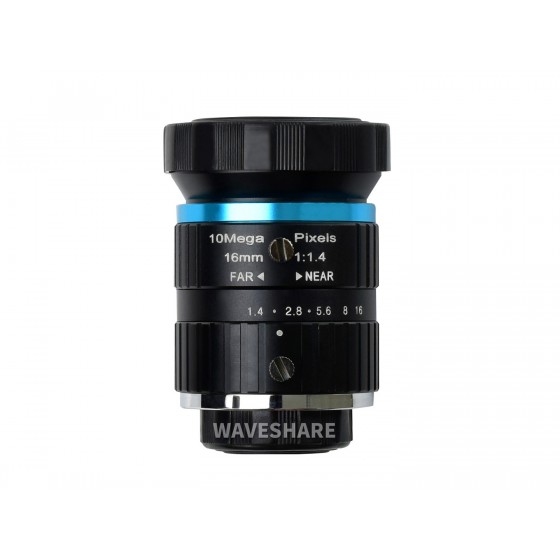

16mm Telephoto Lens

16mm C-mount Telephoto lens for Raspberry Pi High Quality Camera

shorten the distance

16mm focal length high definition telephoto lens, capturing every tiny details

Multi field angle options

Brings the beautiful world into your vision

Fitting to the Camera

Fitting the lens to Raspberry Pi High Quality Camera (C-CS adapter required)

Working with Raspberry Pi
Lens Selection
Product
6mm Wide Angle Lens

16mm Telephoto Lens

25mm Telephoto Lens

35mm Telephoto Lens

8-50mm Zoom
Lens

100X Microscope Lens for Pi
Image format 1/2" 1" 2/3" 1" 1/2.3" 1/2"
Focal length 6mm 16mm 25mm 35mm 8-50mm -
Aperture F1.2 F1.4-16 F1.4-16 F1.7-16 F1.4 -
OPTICAL MAGNIFICATION - 0.12X~1.8X
ZOOM RATIO - 15:01
Mount CS-mount C-mount C/CS-mount
Angle of view 63° 1"      44.6° × 33.6°
2/3"      30.0° × 23.2°
1/1.8"      24.7° × 18.6°
1/2"      21.8° ×16.4°
2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5°
1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9°
45°-5.35° -
Back focus 7.53mm 17.53mm -
Optical length - 67.53mm -
Distortion - 1"(-0.7%)
1/2"(-0.5%)
1/3"(-0.15%)
0.05% 0.35% - < -0.1%
M.O.D. 0.20m 0.20m 0.25m 0.30m 0.20m 2.4mm
Dimensions Φ30.00 × 34.00mm Φ39.00 × 50.00mm Φ34.00 × 34.00mm Φ35.00 × 34.00mm Φ40.00×68.30mm Φ39.00×112.00mm
Operation Manual aperture adjustment Fixed aperture
Weight 53g 133.7g 82g 78g 148g 202g

Weight: 0.219 kg
