RTC Battery for Raspberry Pi 5, Options For 25mAh / 64mAh / 180mAh Battery Capacity, 2PIN JST connector

$1.29 - $2.99
Description

Details

RTC Battery for Raspberry Pi 5, Options For 25mAh / 64mAh / 180mAh Battery Capacity, 2PIN JST connector
RTC Battery for Raspberry Pi 5

2PIN JST connector, Available in 25mAh / 64mAh / 180mAh Capacity

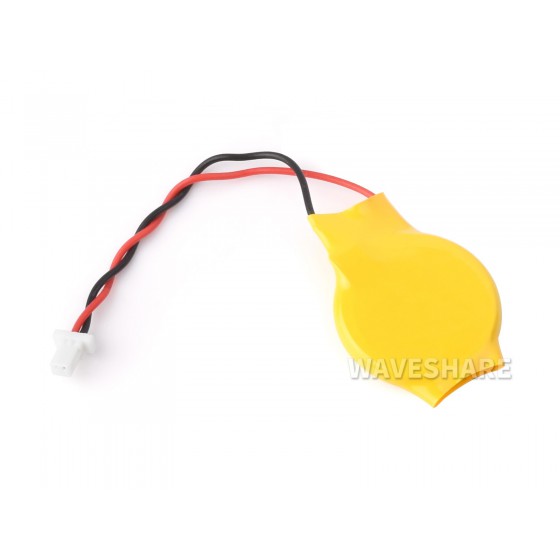

RTC Battery, front view

SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
  • Do not mix use old batteries with new ones, avoid using batteries of different brands.
  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Specifications
Version RTC-Battery-A RTC-Battery-B RTC-Battery-C
Battery Model LIR2025 ML2032 CR2032
Battery Capacity 25mAh 64mAh 180mAh
Battery Dimensions 20.2mm diameter, 2.6mm thickness 20.2mm diameter, 3.3mm thickness
Rated voltage 3.6V 3V
Max voltage 4.2V 3.3V
battery lifespan After 300 recharge and discharge cycles, the capacity remains above 80% of the initial level Does not support recharging
Connector 2PIN JST connector
Cable length 50mm
Protection Over-voltage protection;
Over-current Protection;
Over-temperature Protection;
Overcharging Protection;
Short-circuit Protection
Over-current Protection;
Over-temperature Protection;
Short-circuit Protection
Host support Raspberry Pi 5 Luckfox Pico Ultra series; Raspberry Pi 5
Others with double-sided tape on the back without double-sided tape on the back

Application Example

the RTC-Battery-A and RTC-Battery-B Support Recharging via the Raspberry Pi 5, ensuring longer battery life

* the RTC-Battery-C does not support recharging

RTC Battery connects with Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is NOT included.


Quick Overview

OPTIONS RTC-Battery x1

RTC Battery
