Details
Power Supply, Power Adapter, 24V / 1A, DC Jack Output, OD 5.5mm, ID 2.1mm, Available In US / EU / UK Plug
24V / 1A Power Supply
DC jack output, OD 5.5mm, ID 2.1mm
Choice of Plugs
US Plug
EU Plug
UK Plug
Specifications
| Plug type | US / EU / UK options |
|---|---|
| Specifications | 1.2m cable, 5.5 / 2.1mm DC jack |
| Protection | Short circuit / Over voltage / Over current |
| Input | AC 100~240V 50 / 60Hz, low idle standby power consumption |
| Output | DC 24V 1A, low ripple |
| Safety Certifications | UL / CUL, CE, TUV, SAA, GS |
Product show

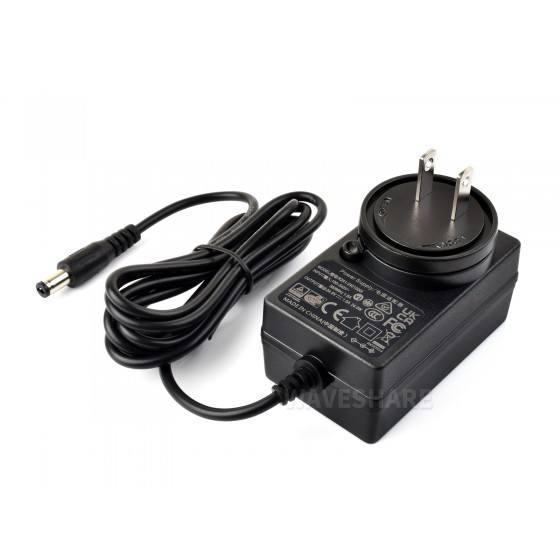

US Plug
EU Plug
UK Plug
Outline dimensions
Quick Overview
PSU-24V1A-5.5-2.1-US
PSU-24V1A-5.5-2.1-US x1
PSU-24V1A-5.5-2.1-EU
PSU-24V1A-5.5-2.1-EU x1
PSU-24V1A-5.5-2.1-UK
PSU-24V1A-5.5-2.1-UK x1
