Details

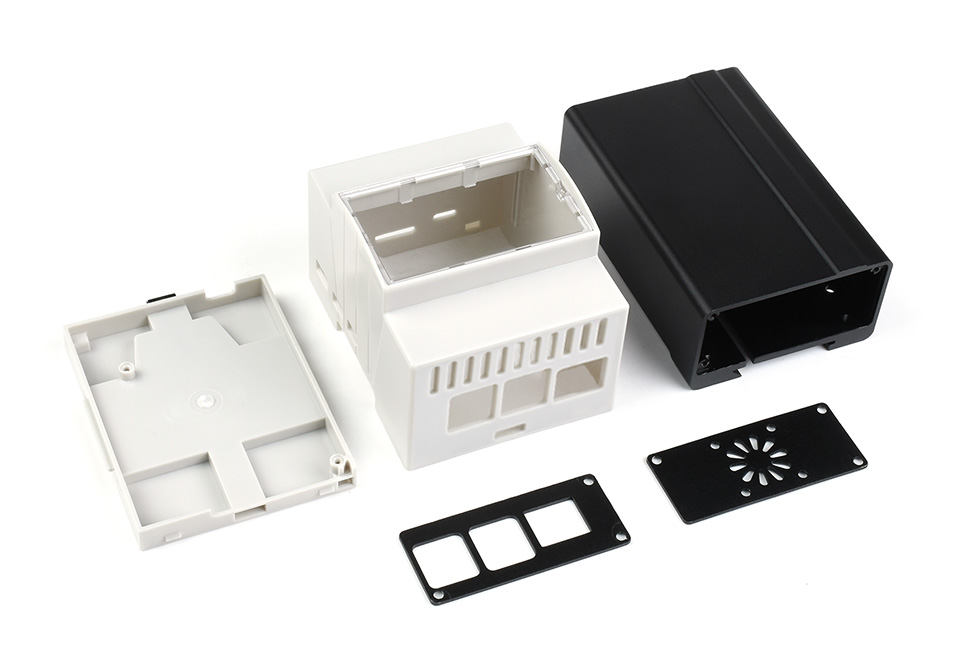

DIN rail mount support, ABS material, clear top window, large inner space
injection moduling ABS body with rail mount support, easy-to-use
* for reference only, Raspberry Pi 5 and RS485 TO ETH (B) are NOT included.
the large inner space allows accommodating an extra add-on
1. press the rail lock by forefinger, then push it out by thumb as the picture shown
2. remove the bottom panel from the main part
3. fix the Raspberry Pi onto the bottom panel by screws
4. put on the bottom panel, aligning it with the buckle and USB connectors
5. snap another side
6. insert the rail lock (note the different sides, don't be upside down)
Design your unique case, the opening is customizable for 200PCS or more,
the larger quantity, the lower price
Weight: 0.108 kg
Quick Overview
PI5-CASE-DIN-RAIL-B (with screw 2PCS) x1
