Raspberry Pi Original USB Debug Probe, Hardware debug kit designed for Pico, Based on RP2040 Microcontroller

SKU:24270
Part No.:Raspberry Pi Debug Probe
Brand:Raspberry Pi Foundation

$15.99
PriceQuantity
$15.592+
$15.393+
$15.314+
Description

Details

Raspberry Pi Original USB Debug Probe, Hardware debug kit designed for Pico, Based on RP2040 Microcontroller, With transparent plastic case
Raspberry Pi USB Debug Probe

Official Raspberry Pi hardware debug kit designed for Pico

Built Using RP2040 Microcontroller Chip Designed By Raspberry Pi

Board specifications

Raspberry Pi Debug Probe is an official USB hardware debugger designed for Pico, all-in-one design, with the features of solderless and plug-and-play, can be connected to the debug interface of the target board via SWD interface.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Onboard Micro-USB port for connecting to PC or other motherboards
  • Onboard 3PIN SWD interface for connecting to the target board
  • Onboard 3PIN USB to UART bridge
  • Standard CMSIS-DAP interface, compatible with most ARM-based microcontrollers
  • Works with OpenOCD and other tools supporting CMSIS-DAP
  • Follows the Raspberry Pi 3PIN Debug Connector Specification
  • Comes with high-quality transparent plastic case and connection cables
  • Open source programs, more convenient to upgrade the firmware
Connection Example

Onboard Resources

Product show



outline dimensions

Weight: 0.051 kg

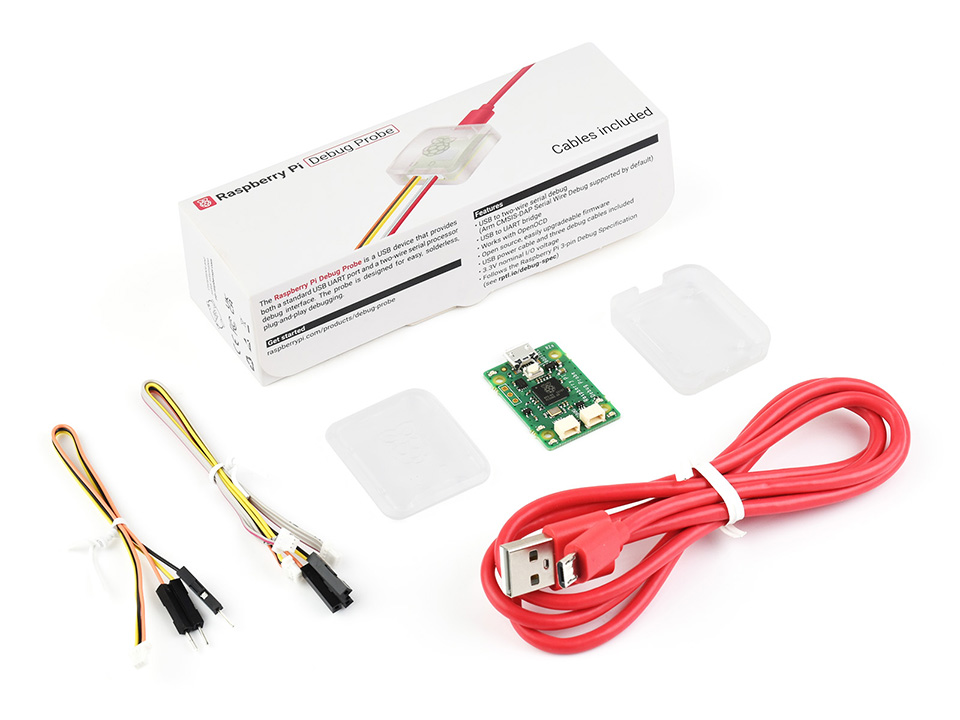

Quick Overview

Note: USB cable is available in red/white colors, shipped randomly.

Raspberry Pi Debug Probe x1
