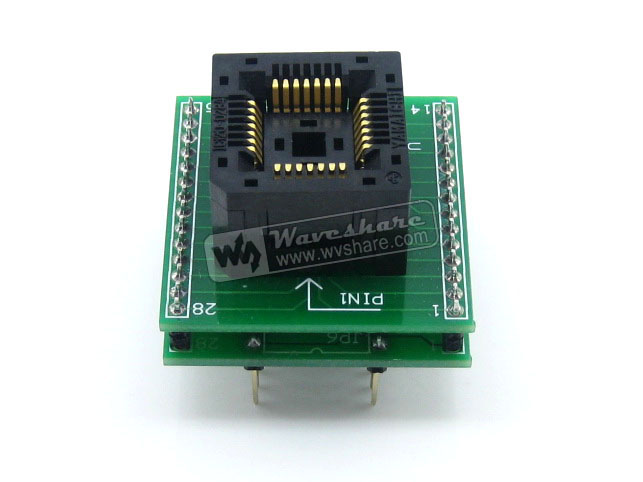

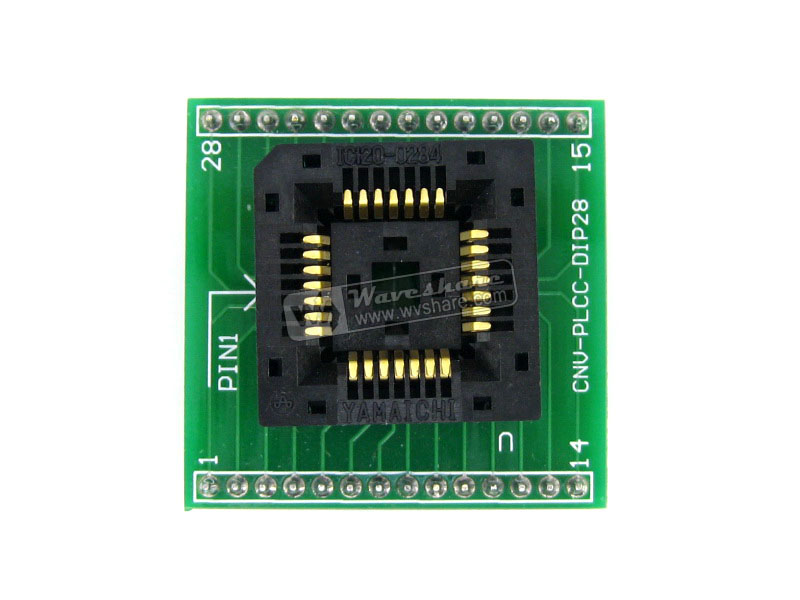

PLCC28 TO DIP28, Programmer Adapter

SKU:3305
Part No.:PLCC28 TO DIP28
Brand:Yamaichi

$27.99
PriceQuantity
$25.992+
$24.993+
$24.594+
Description

Details

Yamaichi IC Programming Adapter for PLCC28 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Applicable Devices

  • Package
    • PLCC28
  • Pitch: 1.27mm

Socket PN

  • IC120-0284-008

Download

Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil (1.52cm)

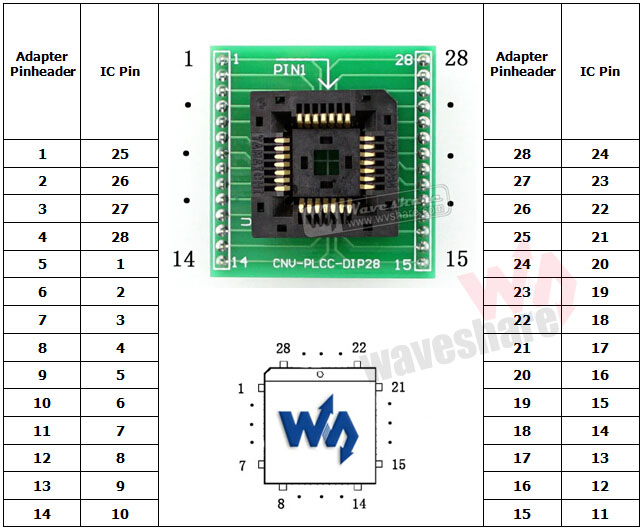

Pinout Mapping

Outline and Dimensions

Unit: mm
Part Number Pitch Pins Socket Dim. Inserting Direction of IC
A B C
IC120-0284-008 1.27 28 23 23 18 Dead-bug type

Weight: 0.023 kg

Quick Overview

  • PLCC28 TO DIP28 adapter × 1
