Overview

Open429Z-D is an STM32 development board designed for the ST official tool 32F429IDISCOVERY, which features the STM32F429ZIT6 microcontroller onboard.

The Open429Z-D supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.

What's on the mother board

1. 32F429IDISCOVERY socket: for easily connecting the 32F429IDISCOVERY
2. MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion
3. USB connector: USB to UART via the onboard convertor PL2303
4. I2C1/I2C2 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), FRAM (FM24CLxx), etc.
5. I2S2/I2S3/I2C1 interface: easily connects to I2S peripherals such as audio module, etc.
6. DCMI interface: for connecting camera
7. SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI
8. CAN1 interface: communicates with accessory boards which feature the CAN device conveniently
9. CAN2 interface: communicates with accessory boards which feature the CAN device conveniently
10. UART3 interface: easily connects to RS232, RS485, USB TO 232, etc.
11. SPI1/SPI4 + AD/DA interfaces:
    • easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc.
    • easily connects to AD/DA modules (SPI1 features AD/DA alternative function)
12. UART2 interface: easily connects to RS232, RS485, USB TO 232, etc.
13. 8-bit FMC interface: easily connects to peripherals such as NandFlash
14. SAI1 interface: for connecting audio modules
15. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
16. 5V DC jack
17. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
18. JTAG/SWD interface: for debugging/programming
19. Joystick jumper
    • short the jumper to connect the joystick to default I/Os used in example code
    • open the jumper to connect the joystick to custom I/Os via jumper wires
20. Boot mode switch: for configuring BOOT0 pin
21. USB to UART jumper
22. AMS1117-3.3: 3.3V voltage regulator
23. PL2303: USB to UART convertor
24. 12MHz crystal
25. 5V DC power switch
26. Power indicator
27. UART1 indicator
28. Joystick: five positions

What's on the 32F429IDISCOVERY

• STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
• On-board ST-LINK/V2-B
• mbed™ -enabled (mbed.org)
• USB functions:
  • debug port
  • virtual COM port
  • mass storage
• Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
• 2.4" QVGA TFT LCD
• 64-Mbit SDRAM
• L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
• Six LEDs:
  • LD1 (red/green) for USB communication
  • LD2 (red) for 3.3 V power-on
  • Two user LEDs: LD3 (green), LD4 (red)
  • Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
• Two push-buttons (user and reset)
• USB OTG with micro-AB connector
• Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
• Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage

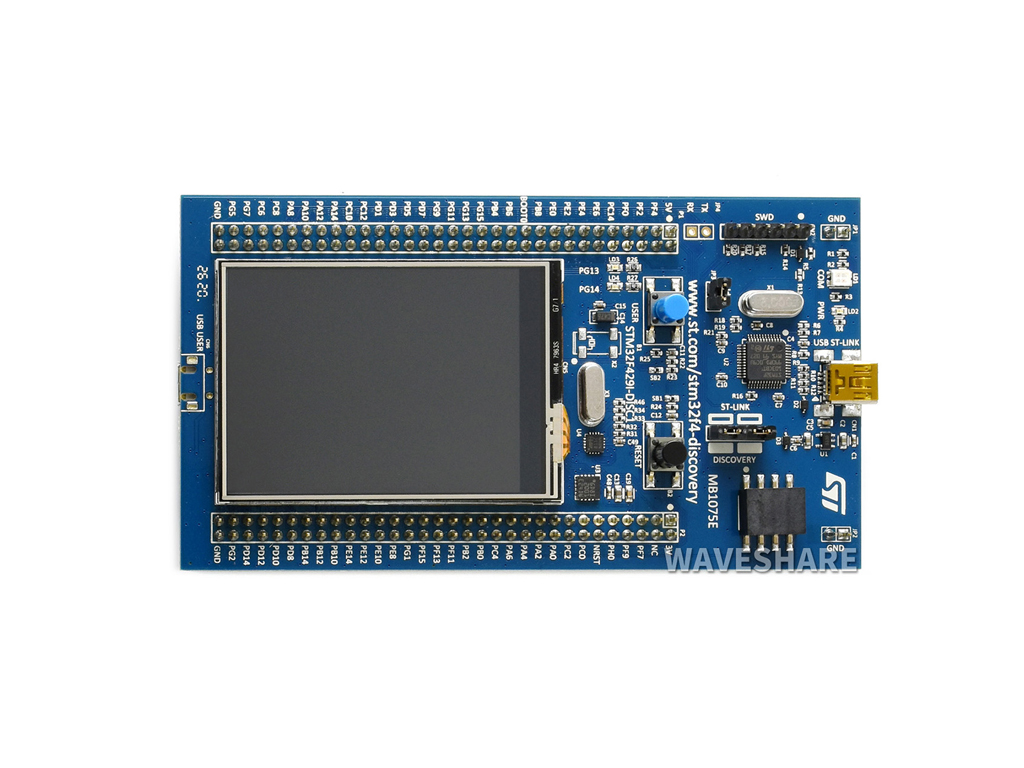

32F429IDISCOVERY: TOP LAYOUT

32F429IDISCOVERY: BOTTOM LAYOUT

Photos

Open429Z-D development board

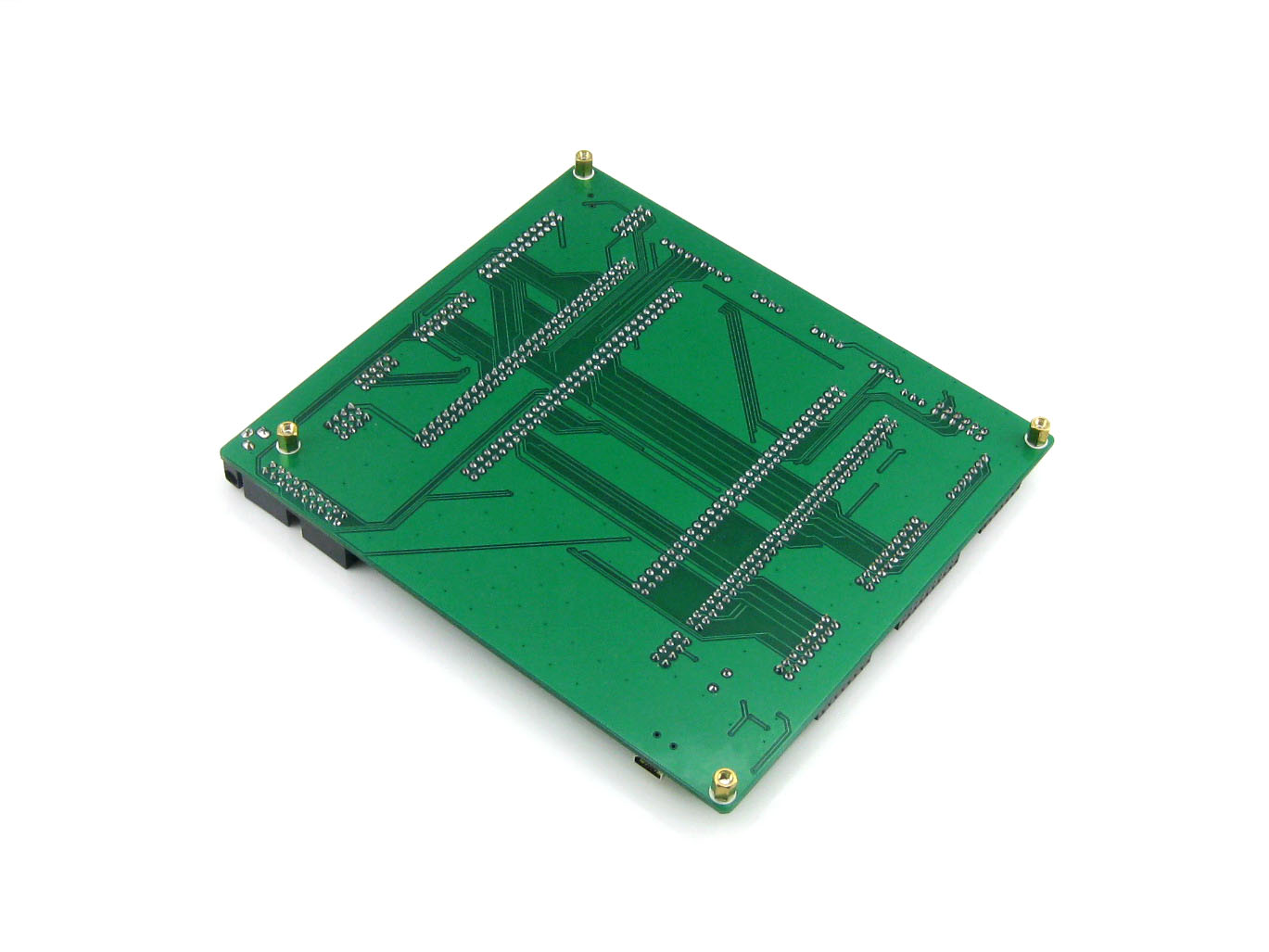

Open429Z-D development board back view

Open429Z-D connecting to a programmer

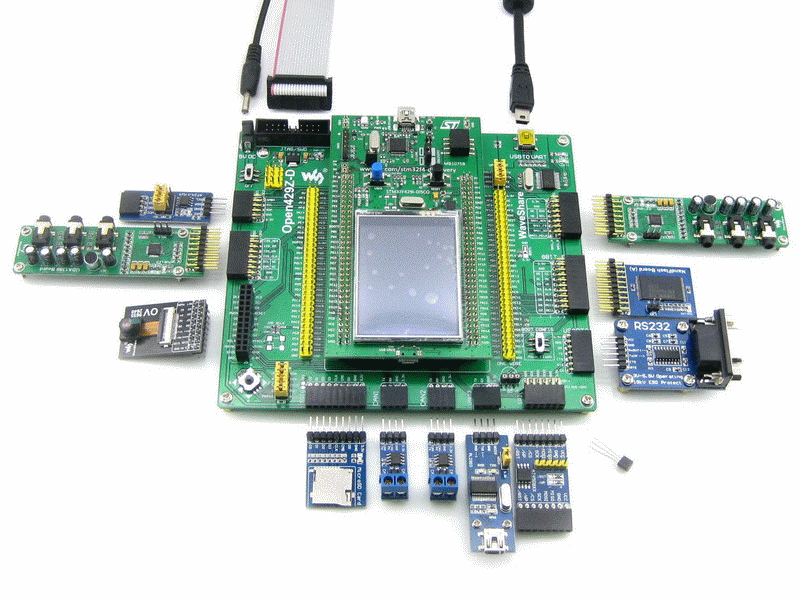

Connecting to various peripherals

STM32 Cortex-M4 MCU board

STM32 Cortex-M4 MCU board

STM32 Cortex-M4 MCU board

STM32 Cortex-M4 MCU board

Connecting to USB device via convertor cable

Connecting to audio Board

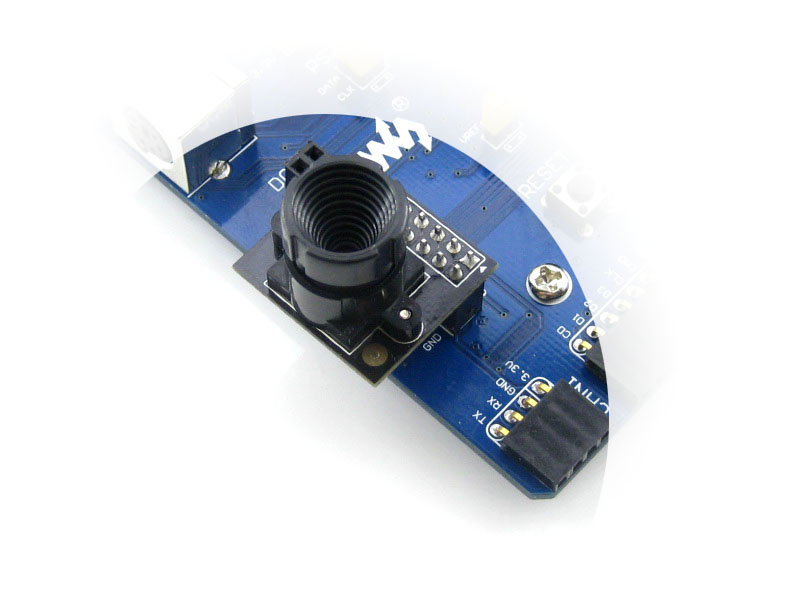

Connecting to OV7670 Camera Board

Connecting to RS232 Board

Connecting to RS485 Board

Connecting to USB UART Board

Connecting to CAN Board

Connecting to 8 Push Buttons

Connecting to 5 IO Keypad

Connecting to AD Keypad

Test Board on the AD/DA port

Connecting to FRAM Board

Multi I2C peripheral Module connected to the I2C bus

Connecting to DataFlash Board

Connecting to VS1003B MP3 Board

Connecting to NRF24L01 RF Board

Connecting to Micro SD Storage Board

Connecting to NandFlash Board

Connecting to any accessory board you need

Note:
The 32F429IDISCOVERY integrates ST-LINK/V2-B for programming/debugging (SWD only).

JTAG/SWD interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout

Figure 2. SWD Header Pinout

Development Resources

• Schematic
• Demo code (examples in C, μC/OS-II)
• Related software (KEIL etc.)
• STM32 Datasheets
• STM32 development documentations

Wiki: www.waveshare.com/wiki/Open429Z-D

The "Standard Package" and "Accessory Boards Package" below are included.

Standard Package

1. Open429Z-D mother board x 1
2. 4-pin 2-pin wires pack x 1
3. USB power cable x 1

1

2

3

Accessory Boards Package

1. 32F429IDISCOVERY x 1
2. WM8960 Audio Board x 1
3. Analog Test Board x 1
4. Micro SD Storage Board x 1
5. OV2640 Camera Board x 1
6. NandFlash Board (A) x 1
7. USB type A plug to mini-B plug cable x 1

1

2

3

4

5

6

7
