Interface / Expansion / Power, Interface Expansion, Raspberry Pi 5

PCIe To 2-Ch M.2 Adapter Type B for Raspberry Pi 5, Compatible with 2280 / 2260 / 2242 / 2230 size NVMe Protocol M.2 SSD, Raspberry Pi 5 NVMe HAT

SKU:27710
Part No.:PCIe TO 2-CH M.2 HAT+ (B)
Brand:Waveshare

$17.99 Qty:

PriceQuantity
1
$17.592
$17.393
$17.314+

Related Products:

PCIe To M.2 Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, HAT + Standard

PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, Compatible with SIMCom/Quectel 4G/5G modules, Raspberry Pi 5 HAT, High-speed Networking

PCIe To M.2 Adapter Board (C) for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

PCIe TO Gigabit ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter

PCIe To USB 3.2 Gen1 HAT for Raspberry Pi 5, PCIe to USB HUB, 4x High Speed USB Ports, driver-free, plug and play, HAT + Standard

Official Raspberry Pi PCIe To M.2 HAT, Designed for Raspberry Pi 5, HAT + Standard, Supports NVMe Protocol M.2 Solid State Drive, Raspberry Pi 5 HAT

PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter

PCIe To M.2 Adapter Board (D) for Raspberry Pi 5, Compatible with 2280 / 2260 / 2242 / 2230 size NVMe Protocol M.2 SSD, Raspberry Pi 5 NVMe

PCIe To M.2 Adapter Board (E) For Raspberry Pi 5, With Cooling Fan, Compatible With 2242 / 2230 Size NVMe Protocol M.2 SSD, High-speed Reading/Writing, Raspberry Pi 5 NVMe

Details

PCIe To 2-Ch M.2 Adapter Type B for Raspberry Pi 5, Compatible with 2280 / 2260 / 2242 / 2230 size NVMe Protocol M.2 SSD, 5Gbps Data Rate, High-speed Reading/Writing, Raspberry Pi 5 NVMe HAT

PCIe To 2-Ch M.2 Adapter

Designed for Raspberry Pi 5

2-Ch NVMe Protocol M.2 Solid State Drive Adapter, High-Speed Reading/Writing

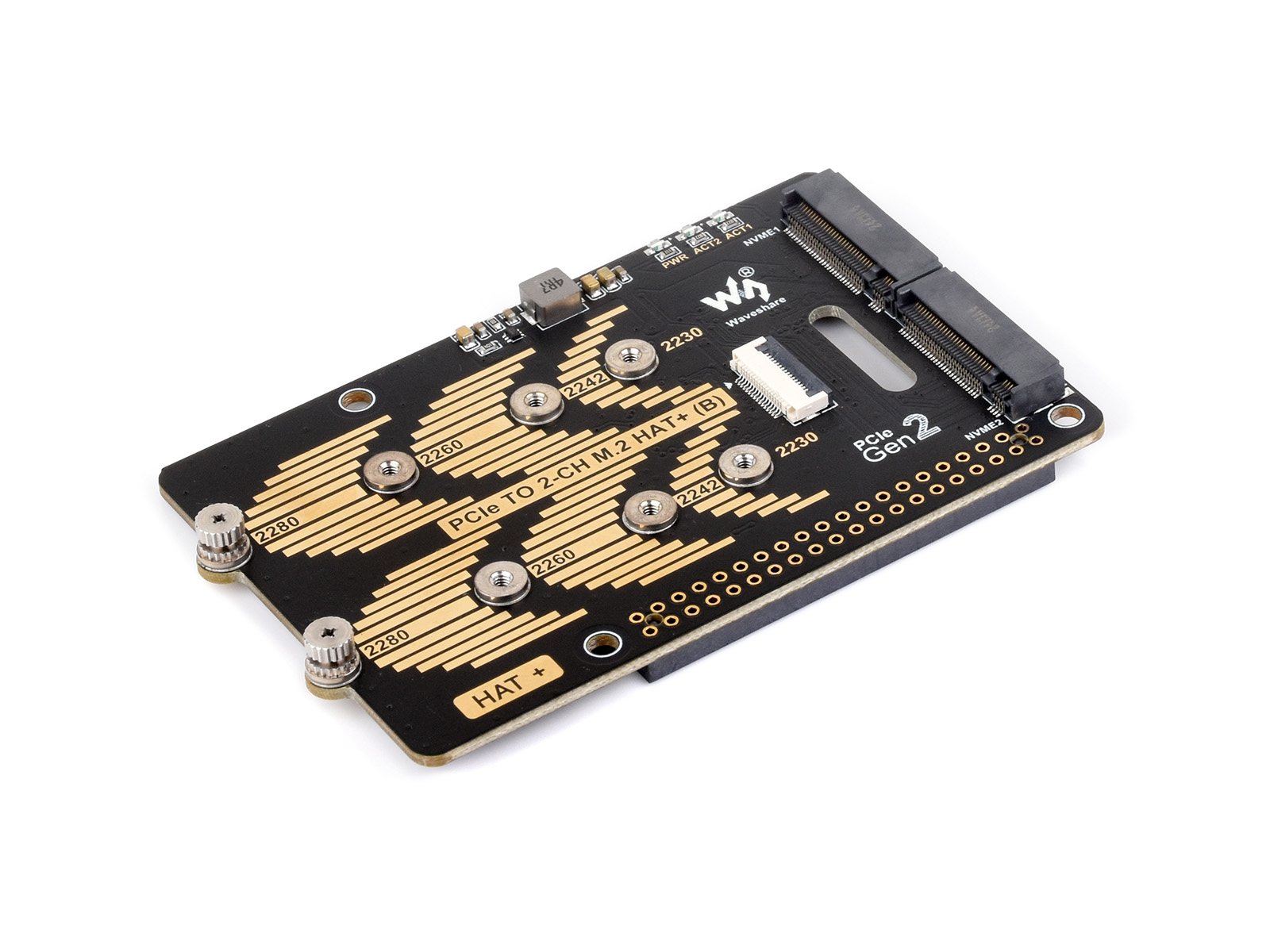

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, front view and features

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

Dual NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports PCIE X1 Gen2 Only, Supports Booting PI5 From Solid State Drive

PCIe To 2-Ch M.2 Adapter for Raspberry Pi 5, compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drive

NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

Adopts Anti-Oxidation Immersion Gold Process

Improves reading/writing speed of your Pi

Faster reading/writing speed compared to the TF card slot of Raspberry Pi , greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive.
