BMM150 3-axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement

SKU:24657
Part No.:BMM150 3-Axis Magnetometer Sensor
Brand:Waveshare

$6.99
PriceQuantity
$6.592+
$6.393+
$6.314+
Description

Details

BMM150 3-axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement
BMM150 3-axis Magnetometer Sensor

Suitable for compass, electronic compass applications

Supports Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32 ...

This is a digital compass sensor based on BMM150, supports magnetic field measuring in three perpendicular axes, I2C / SPI interfaces, can be used in robot navigation and positioning, electronic compass, magnetic heading devices, etc.


Features At A Glance
  • Onboard BMM150 for measuring magnetic field in three perpendicular axes
  • Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
  • Onboard voltage translator, compatible with 3.3V/5V level
  • Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)
Specifications
Communication interface I2C / SPI (I2C bus by default)
Power supply 3.3V~5V
Magnetic measuring range 1300μt (X, Y axis), 2500μt (Z axis)
Resolution 0.3μT
Operating temperature -40℃ ~ +85 ℃
Dimensions 29 × 20mm

Supports I2C and SPI Interfaces Control

For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

PIN I2C PIN SPI
VCC 3.3V/5V power supply VCC 3.3V/5V power supply
GND Ground GND Ground
SDA I2C data SDO SPI data, can be connected to host MISO
SCL I2C clock SDI SPI data, can be connected to host MOSI
INT interrupt output, can be connected to I/O SCK SPI clock input
CS Chip selection, can be connected to I/O
DRY Data sending/receiving ready state, can be connected to I/O

Product Show

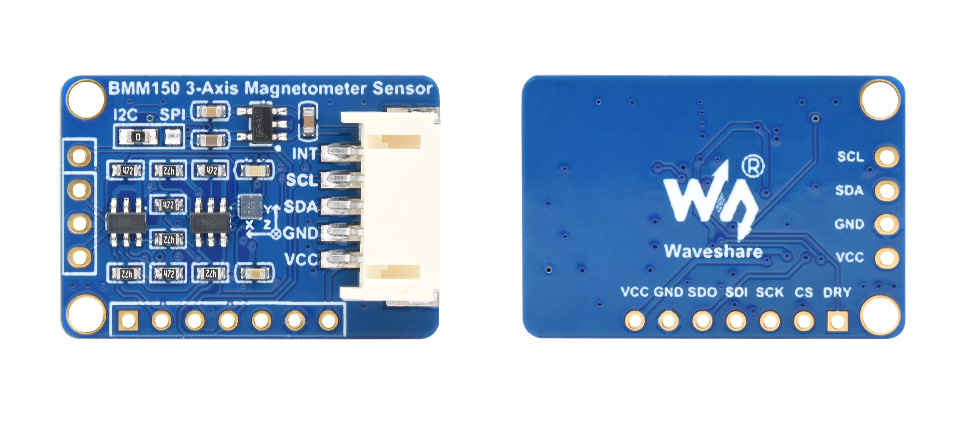

outline dimensions

Weight: 0.007 kg

Quick Overview

  1. BMM150 3-Axis Magnetometer Sensor x1
  2. PH2.0 5PIN cable x1
