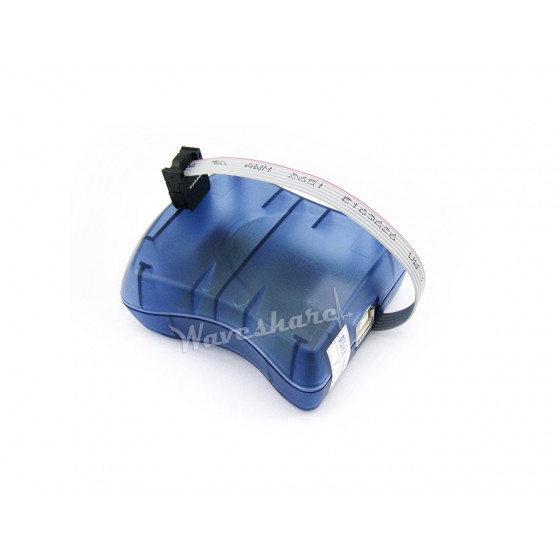

USB AVRISP CH, AVR Programmer

SKU:14224
Part No.:USB AVRISP CH
Brand:Waveshare

$21.99
PriceQuantity
$21.292+
$20.793+
$20.494+
Description

Details

AVR ISP Programmer, compatible with AT AVRISP from ATMEL, supports AVR Studio 4/5/6/7

Features

  • Resolution
    • Using the same MCU and core circuit as AT AVRISP, easy to use, stable and reliable
    • Based on ATMEL official STK500 firmware, identified as AVRISP/STK500 in AVRStudio, high speed programming
  • Standard ISP_6PIN connector
  • CH340G USB to UART converter, supports most popular OS, including WIN10, more stable, faster programming
  • Supports AVR Studio 4/5/6/7
  • Supports 0~3.6864MHz frequency output (via the two through holes on the backside, round=GND, square=PCLK, frequency is configurable by software)

Supported Software

  • AVR Studio or WINAVR(GCC) is used as front-end software
  • Supports files generated by IAR, ICCAVR, CVAVR, etc.

Supported Devices

Same as AT AVR ISP:

  • Supports most AVR MCU with ISP programming option
  • Supports AT86RF401/AT89S51/AT89S52 (when programming S51/S52, the MCU.RESET is recommended to be connected with the programmer, not the external reset circuit)

Refer to AVRStudio 4.18 SP3, the following devices are supported:

Classic Tiny* Mega* Other
AT90S1200
AT90S2313
AT90S/LS2323
AT90S/LS2343
AT90S/LS2333
AT90S4414
AT90S/LS4433
AT90S/LS4434
AT90S8515
AT90S/LS8535
ATtiny12
ATtiny13
ATtiny15
ATtiny22
ATtiny2313
ATtiny24
ATtiny25
ATtiny26
ATtiny44
ATtiny45
ATtiny461
ATtiny84
ATtiny85
ATtiny861
ATmega48 ATmega48P
ATmega8 ATmega88
ATmega88P ATmega8515
ATmega8535 ATmega16
ATmega162 ATmeg164P
ATmega165 ATmega165P
ATmega168 ATmega168P
ATmega169 ATmega169P
ATmega32 ATmega324
ATmega324P ATmega325
ATmega325P ATmega3250
ATmega3250P ATmega329
ATmega329P ATmega3290
ATmega3290P ATmega64
ATmega640 ATmega644P
ATmega645 ATmega6450
ATmega649 ATmega6490
ATmega128 ATmega1280
ATmega1281 ATmega2560
ATmega2561
AT86RF401
AT89S51
AT89S52
AT90PWM2
AT90PWM2B
AT90PWM3
AT90PWM3B
AT90CAN32
AT90CAN64
AT90CAN128
AT90USB162
AT90USB646
AT90USB647
AT90USB1286
AT90USB1287
*Supports all low voltage versions of the devices with suffix of L/V, such as ATmega16L, ATmega48V

Performance

  • High speed programs FLASH ROM, EEPROM, Fuses, and Lock Bit
  • It takes only 5.5s to program a 45K program file with verification (the test MCU uses 8MHz external crystal, and programming speed is set as 1.8MHz)

Connects to PC

  • Uses a quasi-USB interface (USB To COM)
  • The COM port is configurable, a PC could connects to several USB AVRISP CH at the same time

Note: the COM port should be configured as COM1-COM4 for the first time, refer to the user manual for more details.

Connects to the Target Board

The USB AVRISP CH connects to the target board through 3 optional cables. Depending on the existed connector on the target board, the cable has to be changed accordingly.

  • For standard 6-pin ISP connector, use the default 6-pin ISP cable, the header pinout is shown in the figure below:
    pinouts for 6-pin ISP Connector
  • For standard 10-pin ISP connector, use 6-pin to 10-pin ISP cable, the header pinout is shown in the figure below:
    pinouts for 10-pin ISP Connector
  • For custom ISP connector, use the 6-wire multicolour separated cable

Note: the programmer is powered from USB connection, however, it will not power the target board, which should be powered from another supply.

Development Resources

Wiki : www.waveshare.com/wiki/USB_AVRISP_CH

Selection Guide

Programmer ISP-6PIN ISP-10PIN ISP Custom Connect to PC Speed Supported AVR Studio
USB AVRISP CH directly support via adapter cable via adapter cable USB TO COM (CH340G) ★★★☆ 4/5/6/7
USB AVRISP PL via adapter cable directly support via adapter cable USB TO COM (PL2303TA) ★★★ 4 or lower version
AT AVRISP - directly support - Serial port ★★★ 4 or lower version
USB AVRISP XPII directly support via adapter cable via adapter cable USB(PDIUSBD12) ★★★★★ 4/5/6/7
AT AVRISP MKII directly support via adapter cable - USB(PDIUSBD12) ★★★★★ 4/5/6/7

Weight: 0.148 kg

Quick Overview

  1. USB AVRISP CH x1
  2. USB cable x1
  3. 6-pin to 10-pin ISP cable x1
  4. 6-wire multicolour separated cable x1
1
2
3
4
