Details
Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections
Industrial USB 3.2 HUB, Switchable
dual hosts
dual hosts
Sharing USB devices for two hosts, free up the crowded desktop
Features at a glance
- 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
- Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
- ESD protection for each USB port, preventing electric surge damage and data loss
- Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
- Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
- Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
| Standard | high speed USB 3.2 Gen 1 |
|---|---|
| Data rate | up to 5Gbps |
| USB output | 5V@Imax:1.2A, USB-A connector |
| USB HUB input | 5V, switchable dual USB-A connectors (standalone power supply, no crossed power) |
| External power | DC power supply terminal 7~36V (Additional power supply is required for this HUB when connecting to high power devices) |
| Operating environment | -40℃ ~ 85℃ |
| OS support | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
Sharing USB devices for two hosts
Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.
Multiple protections, more safe
over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection...
Multiple OS support, plug & play
compatible with OS including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...
Application environments
suitable for industrial/office environments with higher level device requirements
2 in 4 out
small size, easy installation
mounting support
Interface introduction

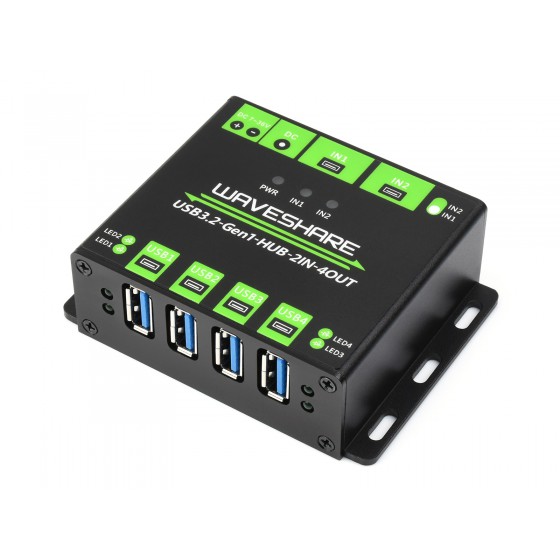

Product Show
Outline dimensions
Weight: 0.204 kg
Quick Overview
- USB3.2-Gen1-HUB-2IN-4OUT x1
- Dual plug USB3.0 cable x2
