Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out

SKU:20987
Part No.:POE-SPLITTER-TYPE-C
Brand:Waveshare

$16.99
PriceQuantity
$16.592+
$16.393+
$16.314+
Description

Details

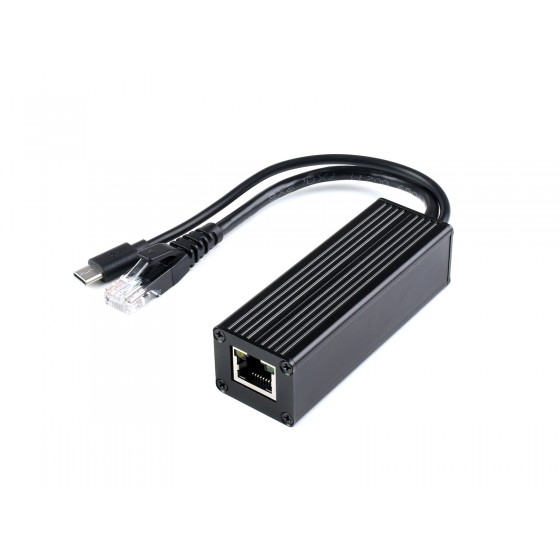

Industrial Gigabit PoE Splitter, metal case protection, 5V 2.5A Type-C power output
Industrial Gigabit PoE Splitter

5V 2.5A Type-C power output

IEEE 802.3af/at-compliant Gigabit Ethernet

Features at a glance
  • Incorporates SD4950 chip, high-efficiency, high-safety, stable-performance
  • 10/100/1000Mbps auto-negotiation Ethernet port
  • 802.3af/at-compliant PoE (Power over Ethernet) standard
  • Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
  • 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
  • Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
Power supply supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
PoE input voltage 37V ~ 57V
Type-C output 5V 2.5A (MAX)
Cable Cat-5 UTP
Standard IEEE 802.3 af/at PoE Ethernet
Data rate 10/100/1000Mbps
LED indicator PoE power input indicator
Dimensions 86 × 30 × 25mm (l × w × h)
Operating temperature -40℃ ~ 85℃

Switching Mode Power Supply (SMPS)

Isolated circuit protection, effectively protecting the powered device

Industrial grade protection case

aluminum alloy case, sturdy and rugged, higher protection level, better heat dissipation

Interface introduction

Application examples

Powering the Raspberry Pi or other 5V-powered network devices by PoE switch

for reference ONLY, Raspberry Pi and switch are NOT included.
Outline dimensions
Resources & Services

Weight: 0.087 kg

Quick Overview

  1. POE-SPLITTER-TYPE-C x1
