PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe HAT
Interface / Expansion / Power, Ethernet, Raspberry Pi 5

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe HAT

SKU:27541
Part No.:PCIe TO Gigabit ETH USB3.2 HAT+
Brand:Waveshare

$29.99
PriceQuantity
$29.192+
$28.793+
$28.634+
Share:
Description

Details

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe HAT
PCIe TO GigE & USB HUB HAT

PCIe To Gigabit Ethernet And USB 3.2 Gen1

Designed for Raspberry Pi 5, driver-free, plug and play

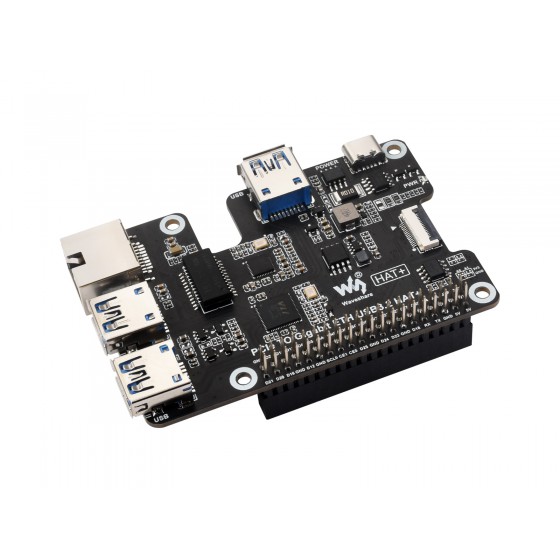

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, front view and features

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, how to connect the Pi5

* for reference only, please refer to the Package Content for detailed part list


More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports for connecting more peripherals

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, extends to 3x High Speed USB 3.2 Gen1 ports

Extends 1x Gigabit Ethernet port

Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, extends to 1x Gigabit Ethernet port

network Speed Measurement

Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable
and reliable network speed

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, network speed measurement
Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of power status, supports USB port power control via software

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, onboard power monitoring chip and EEPROM

What's On Board
PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, onboard components
  1. VL805
    PCIe to USB 3.2 Gen1 HUB chip
  2. RTL8153B
    USB to Gigabit ETH chip
  3. INA219
    Power monitoring chip
  4. EEPROM
    for saving HAT ID and product information
  5. 16PIN PCIe interface
    for connecting to the PCIe interface of Raspberry Pi 5
  1. Raspberry Pi GPIO header
    for connecting Raspberry Pi 5
  2. Gigabit Ethernet port
    up to 1000Mbps data rate, compatible with 100Mbps
  3. USB 3.2 Gen1 expanded ports
    USB1~USB3
  4. Power port
    for external Type-C 5V DC power supply
  5. PWR LED
    Power indicator
How to install
PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, how to install

* for reference only, the Raspberry Pi 5 and cooling fan are NOT included, please refer to the Package Content for detailed part list


Outline dimensions
PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, outline dimensions

Weight: 0.091 kg

Quick Overview

  1. PCIe TO Gigabit ETH USB3.2 HAT+ x1
  2. Network cable ~1.5m x1
  3. 16P-Cable-40mm x1
  4. Standoff pack x1
PCIe TO Gigabit ETH USB3.2 HAT+
