Modbus RTU Protocol, Multi Isolation Protection Circuits, Safe & Stable & Reliable

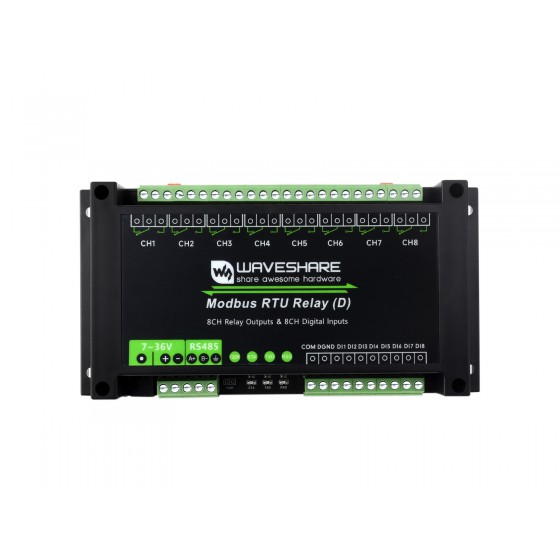

This is an industrial 8-ch relay module controlled via RS485 bus, with 8-ch digital input, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay (D) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
- Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
- High quality relay, contact rating: ≤10A 250VAC/30VDC
- Rail-mounted ABS plastic enclosure, easy to install, safe to use
- Multiple LEDs for indicating the MCU status and signal transceiving status
| Power supply | 7~36V |
|---|---|
| Communication interface | RS485 |
| Baudrate | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 |
| Default communication format | 9600, N, 8, 1 |
| Relay channels | 8 |
| Contact form | 1NO 1NC |
| contact rating | ≤10A 250VAC/30VDC |
| Digital input | 8DI, 5~36V, passive / active input (NPN or PNP), built-in bi-directional optocoupler isolation |
| Communication protocol | Standard Modbus RTU protocol |
| RS485 address | 1~255 |
| LED indicators | STA: MCU indicator, keeps flashing when the MCU normally working TXD: TX indicator, lights up when sending data RXD: RX indicator, lights up when receiving data |
Supports reading digital input by sending Modbus RTU protocol commands via RS485 for relay output control
Multiple protections for safer and more reliable use
Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation
With Multiple LED Indicators, Easy To Monitor The Operating Status
Supports multiple relay control modes, each channel supports independent
control mode setting
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters
for reference only, the USB TO RS232/485/TTL converter is Not included
Contact rating of the onboard relay up to 10A 250VAC/30VDC
Directly controlling 220VAC home appliances, or devices below 30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
| product | Modbus POE ETH Relay | Modbus POE ETH Relay (B) | Modbus POE ETH Relay 30CH | Modbus RTU Relay | Modbus RTU Relay (B) | Modbus RTU Relay (D) | Modbus RTU Relay 16CH | Modbus RTU Relay 32CH |
|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
|
| Communication parameters | ||||||||
| Communication interface | Ethernet port (PoE support) | RS485 port | ||||||
| Baud rate | - | 4800，9600，19200，38400，57600，115200，128000，256000 (configurable) | ||||||
| Default communication format | - | 9600, N, 8, 1 | ||||||
| Communications protocol | TCP/UDP/MQTT | RS485 protocol | ||||||
| Modbus protocol | Modbus RTU Protocol or Modbus TCP Protocol | Modbus RTU Protocol | ||||||
| Device address | Unconfigurable, identify the devices by IP address | 1~255 (configurable, supports cascading multiple devices) | ||||||
| control interface | ||||||||
| Output control (DO) | 8-ch relay | 30-ch relay | 8-ch relay | 16-ch relay | 32-ch relay | |||
| Contact form | 1NO 1NC | |||||||
| Contact rating | ≤10A 250VAC/30VDC | |||||||
| DIGITAL INPUT | - | 8DI, 5~36V, passive / active input (NPN or PNP), built-in bi-directional optocoupler isolation | - | 8DI, 5~36V, passive / active input (NPN or PNP), built-in bi-directional optocoupler isolation | - | |||
| Others | ||||||||
| Power Supply | PoE port, DC 5.5*2.1 power port, or screw terminal | DC 5.5*2.1 power port, or screw terminal | ||||||
| Power range | 7~36V wide range | 5V | 7~36V wide range | 5V | 7~36V wide range | |||
| Dimensions | 145×90×40mm | 175×90×40mm | 300×110×60mm | 145×90×40mm | 175×90×40mm | 200×110×60mm | 300×110×60mm | |
| Installation | Standard DIN 35mm rail mounting, wall mounting | |||||||
Weight: 0.296 kg
Quick Overview
- The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.
- It is also recommended to purchase USB TO RS232/485/TTL or USB TO RS485 at the same time for easy testing.
- Modbus RTU Relay (D) x1
- Screwdriver x1
