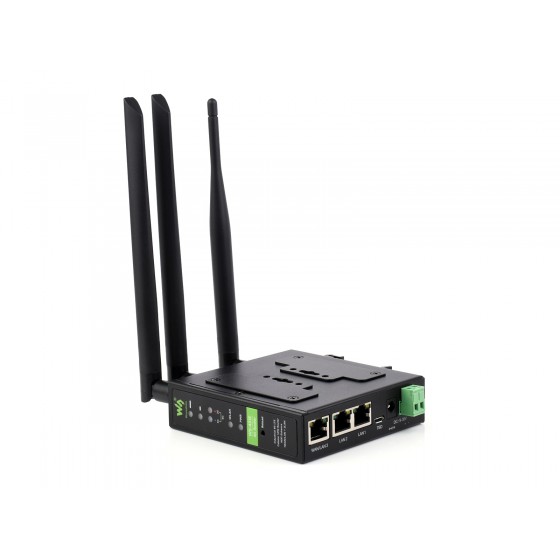

Industrial 4G LTE Router, multiple VPN protocols support, 3-ch Ethernet Ports, WIFI high-speed internet access, dual Qualcomm chips

SKU:24769
Part No.:WS-431E 4G Router
Brand:Waveshare

$99.99
PriceQuantity
$97.992+
$96.993+
$96.594+
Description

Details

Industrial 4G LTE Router, multiple VPN protocols support, 3-ch Ethernet Ports, WIFI high-speed internet access, dual Qualcomm chips
Industrial 4G LTE Router
Enhanced WiFi, 1WAN/LAN+2LAN

Supports multiple modes and frequency bands, suitable for countries or regions including Europe, Middle East and Africa, South Korea, Thailand, India,
and Southeast Asia

Features at a glance

The WS-431E 4G Router is a new Qualcomm solution Wi-Fi enhanced industrial router with excellent anti-interference capability and stable connection performance, supports WIFI hotspot, WIFI client, and WIFI relay modes, and is integrated with 4G LTE, Wi-Fi, Ethernet ports (2LAN and 1WAN/LAN) and VPN technologies.

The WS-431E can provide advanced Internet connectivity and high-speed data access for the devices, allowing users to quickly build their own application network, and also helping enterprise customers achieve efficient large-scale network deployment and management. It is suitable for various IoT and M2M solutions such as service robots, inspection robots, unmanned vehicle networking, massage chair networking, AGV car, and other industrial application scenarios.


Specifications
Cellular network parameters
Frequency band TDD-LTE: B38/40/41
FDD-LTE: B1/3/7/8/20/28A
WCDMA: B1/8
GSM/EDGE:B3/8
WiFi
Standard IEEE 802.11b/g/n, 2.4GHz
Data speed 300Mbps
MIMO 2×2
Transmission distance 500 meters with an open field, the actual transmission distance depends on the environment of the site
Interfaces
WAN/LAN 1× WAN RJ45 port (can be configured as LAN), 10/100 Mbps, supports auto MDI/MDIX, 1.5KV electromagnetic isolation protection
LAN 2× LAN RJ45 port, 10/100 Mbps, supports auto MDI/MDIX, 1.5KV electromagnetic isolation protection
SIM card slot Supports standard Nano (3 V/1.8 V)
Antenna SMA-K standard antenna connector, comes with 1x 4G antennas, 2x WiFi antennas by default
TBD Debug interface
Reload button Supports factory restore
Grounding screw Grounding protection
Indicators
PWR Power indicator, lights up after powered on
WIFI Lights up when WiFi is enabled
2/3/4G network indicator 2G led lights up after being connected to 2G network
3G led lights up after being connected to 3G network
Both leds light up after being connected to 4G network
SIG 2× signal strength indicator: lights up one indicates that the signal is average; lights up two indicates that the signal is strong
Power Supply
Power adapter DC 12V/1A
Input voltage DC 9-36V
Power consumption Average 260mA/12V
Physical Characteristics
Operating temperature -20℃~+70℃
Storage temperature -40℃~+125℃(non-condensing)
Relative humidity 5%~95%(non-condensing)
Case material Metal case, IP30 protection level
Dimensions
(L × W × H)
104.0×102.0×28.0mm
Installation DIN rail mounting, wall mounting, tabletop
EMC level 3

multiple VPN protocols support for data security

Comprehensive VPN protocols support ensures your data security,
including OpenVPN, IPsec, PPTP, L2TP and GRE
Supports multiple encryption methods for financial-grade data transmission

Enhanced OpenVPN Design
Easy to use, but also professional
  • Allows connecting to three different OpenVPN servers as a client and also supports functioning as an OpenVPN server
  • One-click to import ovpn config-file and PKCS# 12 cert-file, Say goodbye to the complex parameter.
  • Compatible with multiple Openvpn Servers such as OpenVPN® Cloud Connexa™, OpenVPN® Access Server, OpenVPN® @AWS EC2, Open source OpenVPN , Opnsense, pfsense, etc.
Easy for Subnet Device Interconnection

Multiple Remote Access Methods

Dual Qualcomm chips, more stable

The core Wi-Fi chip (master control) and 4G cellular module both adopt the industry-leading Qualcomm solution to ensure the performance and stability of the device

WIFI enhance, more coverage
Rich Networking modes, Smooth and reliable

Cellular, wired and Wi-Fi internet access modes can be switched freely;
The Service can be recovered in time when there is a network abnormality;
allows connecting Ethernet & Wi-Fi terminal to this router for data transmission

Industrial Grade Design, High Reliability

Watchdog
Hardware & software dual watchdog
7*24 hours stable operation without downtime

Surge Protection (level 3)
Prevent equipment hardware against damage caused by instantaneous current in the circuit, lightningproof & transient spike voltage proof

Wide Operation Temperature
-20℃ ~ +70℃

ESD Protection (level 3)
Prevent damage to equipment from static electricity, such as dust static electricity, electric arc, etc.

Wall Mounting & DIN Rail Mounting
Interface Introduction
Applications

features hardware industrial-grade design and powerful software functionality, suitable for various industrial fields and IoT application scenarios

Product show
Outline Dimensions
Resources & Services

Weight: 0.66 kg

Quick Overview

  1. WS-431E 4G Route x 1
  2. SMA Protective Cap 3pcs x 1
  3. 12V 1A EU head Power Supply x 1
  4. WIFI Antenna 2pcs x 1
  5. 4G Antenna x 1
