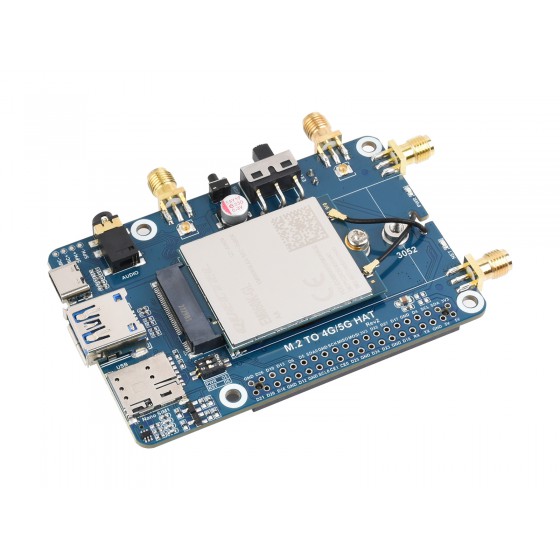

Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-band, GNSS Positioning, comes with EM060K-GL Module

SKU:24387
Part No.:EM060K-GL LTE Cat-6 HAT

$94.99
PriceQuantity
$93.392+
$92.593+
$92.274+
Description

Details

Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-band, GNSS Positioning, comes with EM060K-GL Module
EM060K-GL LTE Cat-6 HAT

Supports multiple network standards such as LTE-A and UMTS/HSPA(+)

Integrated multi-constellation high-precision global GNSS positioning, supports cloud platform communication and LTE-A network access

* for reference only, Raspberry Pi board is NOT included

The EM060K-GL LTE Cat-6 HAT integrates LTE-A Cat 6 communication and GNSS positioning, up to 300Mbps downlink and 50Mbps uplink rate, nearly covers all the mainstream carriers worldwide. It can be connected to a PC, Raspberry Pi or Jetson Nano, etc. to easily enable high-speed LTE-A network, supports cloud platform communication, sending SMS, global GNSS positioning, etc.

Features at a glance
  • Integrated multi-constellation high-precision GNSS positioning: GPS, GLONASS, BDS, Galileo
  • Integrates rich network protocols, with multi drivers and software support, compatible with different systems including Windows / Linux / Android
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano to enable high-speed LTE-A network
  • Standard M.2 B KEY slot, compatible with QUECTEL and SIMCOM series 4G/5G M.2 modules
  • Onboard PWR and RST control pins, enabled via DIP switch, for connecting external IO ports to control module power on/off and reset
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, stable and flexible, supports more loads
  • Onboard power supply switch, reset button and LED indicator, easy to turn on/off the module and monitor the operating status
  • Reserved 4x SMA to IPEX antenna connectors, easy to install and change the SMA antenna positions
  • High efficiency power supply circuit, up to 3A output current
EM060K-GL Specifications
LTE Cat 6
Region / Provider Global
Dimensions 42.0 × 30.0 × 2.3 (mm)
Temperature Range
Operating temperature -30 °C ~ +70 °C
Extension temperature -40 °C ~ +85 °C
Frequency band
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 (B29/B32 support RX only, and are only for secondary component carrier)
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B46 (LAA), B48 (CBRS) (B46 supports RX only, and are only for secondary component carrier)
2xCA Intra-band, Inter-band
WCDMA B1, B2, B3, B4, B5, B6, B8, B19
GNSS GPS/GLONASS/BDS/Galileo
Data rate
LTE-FDD 300Mbps (DL) / 50Mbps (UL)
DC-HSPA+ 42Mbps (DL) / 5.76Mbps (UL)
WCDMA 384kbps (DL) / 384kbps (UL)

Designed for IoT/M2M applications

Supports multiple network standards such as LTE-A and UMTS/HSPA(+)
nearly covers all the mainstream carriers worldwide

Multi system support, easy to use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...Just plug it into USB port, go through some simple configuration, the high-speed LTE-A network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

Connecting with Raspberry Pi 4B

Connecting with Raspberry Pi 3B+

Connecting with CM4 baseboard

Support GNSS positioning

Supports GPS, GLONASS, BDS, Galileo and base station positioning


Standard Raspberry Pi 40PIN GPIO Header

Compatible with Raspberry Pi series and Jetson Nano, stackable design for more HATs

for reference only, please check the Package Content for the detailed part list

M.2 B KEY slot

Compatible with EM06-E and EM060K-GL series modules

LTE Cat 6 EM06-E EM060K-GL
Region / Provider EMEA/APAC①/Brazil Global
Operating temperature -30 °C ~ +70 °C
Extension temperature -40 °C ~ +85 °C
Dimensions 42.0 × 30.0 × 2.3 (mm)
Power supply 3.135~4.4 V, typical 3.7 V
Power consumption 50 μA @ shutdown
4.1 mA @ hibernate, typical
22.1mA @ idle
62 μA @ shutdown
2.71 mA @ hibernate, typical
16.57mA @ idle
Frequency band
LTE-FDD B1, B3, B5, B7, B8, B20, B28, B32② B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29③, B30, B32③, B66, B71
LTE-TDD B38, B40, B41 B34, B38, B39, B40, B41, B42, B43, B46③ (LAA), B48 (CBRS)
2xCA B1+B1, B5, B8, B20, B28;
B3+B3, B5, B7, B8, B20, B28;
B7+B5, B7, B8, B20, B28;
B20+B32②; B38+B38; B40+B40; B41+B41
Intra-band, Inter-band
WCDMA B1, B3, B5, B8 B1, B2, B3, B4, B5, B6, B8, B19
GNSS GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(optional) GPS/GLONASS/BDS/Galileo
Data rate
LTE-FDD 300Mbps (DL); 50Mbps (UL) 300Mbps (DL); 50Mbps (UL)
LTE-TDD 226Mbps (DL); 28Mbps (UL)
DC-HSPA+ 42Mbps (DL); 5.76Mbps (UL)
WCDMA 384kbps (DL); 384kbps (UL)
Note ① Japan and CMCC are NOT included.
② For EM06-E, B32 is only used for receiving in LTE-FDD, and is only for secondary component carrier in 2×CA.
③ For EM060K-GL, LTE-FDD B29/B32 and LTE-TDD B46 are used for receiving only, and are only for secondary component carrier.

What's On Board
  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. DIP switches
    Enables the power control and reset pins
  3. M.2 slot
    Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor
  4. SIM card slot 1
    one of the 2x SIM card slots, dual card single standby
  5. USB3.1 port
    USB 2.0 compatible, for connecting with different hosts
  6. USB Type-C port
    5V 3A input, stable and flexible power supply
  1. Audio jack
    SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function
  2. Antenna connector
    Supports quad antennas
  3. Reset button
  4. Power supply switch
    Switch the power supply mode:
    When set to USB, the module is powered via the "5. USB3.1 port"
    When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port"
  5. Indicator
    Easy to monitor the operating status of module
  1. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
  2. SIM card slot 2
    Switchable via AT command
  3. Module settings switch
    Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
    Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
    Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules
  1. USB 2.0 interface pads
  2. NAU8810X Audio Chip
    For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function
  3. Fan Header
    5V cooling fan power supply

Application examples

LTE-A Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a LTE-A wireless router, providing WiFi hotspot for smartphones to easily access the LTE-A Network.

LTE-A Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities
Outline Dimensions

Weight: 0.21 kg

Quick Overview

The case of this product is NOT included, please purchase separately if you need: 4G/5G HAT case (suitable for Raspberry Pi 4B).
  1. M.2 TO 4G/5G HAT x1
  2. EM060K-GL x1
  3. Antenna 2pcs x1
  4. IPEX adapter cable 2pcs x1
  5. 2*20PIN pin header x1
  6. GNSS antenna x1
  7. Dual plug USB3.0 cable x1
  8. USB3.0 adapter x1
  9. USB2.0 adapter x1
  10. SMA protective cap 2pcs x1
  11. Screws pack x1
