BG95 EVB Development Board Designed For QuecPython, Low Power Consumption, Supports LTE / EGPRS Communication And GNSS Positioning

SKU:27094
Part No.:BG95-M3 Zero
Brand:QUECTEL

$54.99
PriceQuantity
$53.792+
$53.193+
$52.954+
Description

Details

BG95 EVB development board Designed for QuecPython, low power consumption, Supports LTE / EGPRS Communication and GNSS Positioning
BG95 EVB Development Board

Compact & Portable Development Board Designed for QuecPython

Supports LTE Cat M1 / LTE Cat NB2 / EGPRS Communication, GNSS Positioning

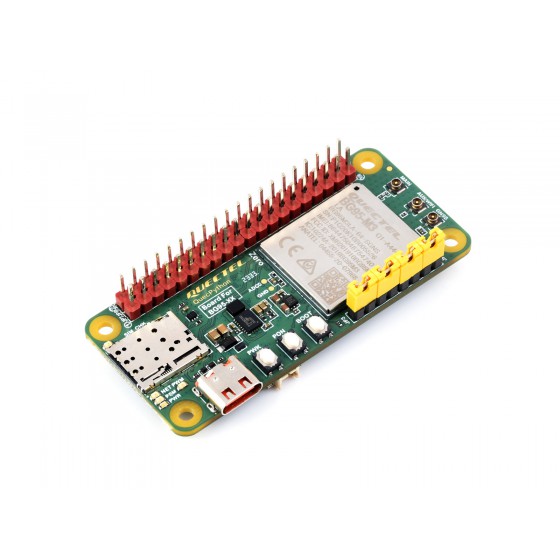

BG95 EVB development board, front view
Features at a glance

The BG95-M3 Zero development board is equipped with BG95-M3 module, which is a multi-mode LPWA module supporting LTE Cat M1 / LTE Cat NB2 / EGPRS. It is 3GPP Rel-14 compliant and offers maximum data rate of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. Features ultra-low power consumption with built-in MCP as well as the ARMCortex A7 processor supporting ThreadX.

  • Equipped with BG95-M3 main module, supports LTE Cat M1 / LTE Cat NB2 / EGPRS networking, applicable across global regions
  • Onboard 40PIN GPIO header, compatible with most Raspberry Pi HATs
  • 5 LEDs for indicating module operating status
  • Onboard Type-C port for easy development with just a USB Type-C cable
  • Supports PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6 protocols, etc.
  • Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)
  • Onboard Nano SIM card slot, supports 1.8V SIM card, and is designed near the edge of the board for easy insertion and removal of SIM card
  • Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development
  • Comes with online development resources and manual (example in QuecPython)

Specifications
Model BG95-M3 EC200U-EU EC200U-AU
Product Picture BG95-M3 EC200U-EU EC200U-AU
Applicable Region Global Europe, Middle East, Africa, Australia, New Zealand, Brazil Australia/Latin America
Frequency Band
LTE-FDD Cat M1:
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85
Cat NB2:
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85
B1, B3, B5, B7, B8, B20, B28 B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD N/A B38, B40, B41
GSM / GPRS / EDGE 850, 900, 1800, 1900 MHz GSM: B2, B3, B5, B8
GNSS GPS, GLONASS, BDS, Galileo, QZSS
Bluetooth N/A Bluetooth 4.2 (BR/EDR)
Wi-Fi Scan N/A 2.4 GHz 11b (Rx)
Data transmission
CAT 1 N/A LTE-FDD: DL 10 Mbps; UL 5 Mbps
LTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps
NB-IoT Cat NB2:
DL 127 Kbps; UL 158.5 Kbps
Cat NB1:
DL 32 Kbps; UL 70 Kbps
N/A
Cat-M DL 588 Kbps; UL 1119 Kbps N/A
GSM / GPRS / EDGE EDGE: DL 296 Kbps; UL 236.8 Kbps
GPRS: DL 107 Kbps; UL 85.6 Kbps
GSM: DL 85.6 Kbps; UL 85.6 Kbps
Others
Type-C USB Port Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
Communication Protocol PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6 TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS
SIM Card Nano SIM card (supports 1.8V only) Nano SIM and eSIM, dual card single standby
Indicator SIM_CHK: lights up when a SIM card is inserted into the card slot
NET: Network indicator
PSM: Sleep indicator
PWM: PWM function indicator
PWR: Power indicator
P01: Module Pin 1, default as EC200A-XX PWM0
P05: Module Pin 5, NET_MODE indicator
SCK1: SIM1 detection indicator, lights up when SIM1 card is inserted
SCK2: SIM2 detection indicator, lights up when SIM2 card is inserted
PWR: Power indicator
Buttons PWK: Power ON/OFF
PON: PSM wake-up
BOOT: Forcing into firmware burning mode
USB ON/OFF: USB power consumption detection switch
PWK: Power ON/OFF
RST: Reset
BOOT: Forcing into firmware burning mode
USB ON/OFF: USB power consumption detection switch
Antenna Connectors LTE main antenna + DIV antenna + GNSS antenna LTE main antenna + DIV / WIFI (scanning only) / Bluetooth antenna + GNSS antenna
Operating Temperature -30 ~ 75°C
Storage Temperature -45 ~ 90°C

Type-C interface

easy to develop with just a USB Type-C cable

BG95 EVB development board with Type-C interface

Onboard 40PIN GPIO header

Compatible with most Raspberry Pi HATs

BG95 EVB development board with 40PIN GPIO pin header

Supports various development tools

Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development

BG95 EVB development board supports various development tools

What’s onboard
BG95 EVB development board onboard components

Onboard Components

  1. BG95-M3 module
  2. TPS63020DSJR power IC
  3. TLV75533PDRVR power IC
  4. NCP114AMX180TBG power IC
  5. TXS0104EYZTR voltage level translator
  6. Nano-SIM card slot
  7. NET Network indicator
  8. PSM Sleep indicator
  9. PWM function indicator
  10. PWR Power indicator
  11. SIM_CHK indicator
    lights up when SIM card is inserted
  12. Power ON/OFF button
  13. PSM wake-up button
  14. BOOT button
    Press before powering on to force firmware burning mode
  15. USB detection ON/OFF
    Normally closed: USB can be connected normally;
    Normally open: Type-C supplies power only to the evaluation board, used for module power consumption measurement

Interfaces

  1. Raspberry Pi GPIO Header
    Compatible with Raspberry Pi HATs, for more details, please refer to Pinout Definition
  2. Power ON/OFF jumper
    Connect: auto turn on, short press PWK button to restart
    Disconnect: short press PWK button to power on, long press to power off
  3. 1.8V output jumper
    Connect: outputs 1.8V externally
    Disconnect: used to test power consumption
  4. Module power supply jumper
    Connect: DCDC to power the module
  5. GNSS active power supply selection
    Connect: enable GNSS active power supply
  6. USB Type-C port
  7. Main antenna connector
  8. AUX antenna connector
  9. GNSS antenna connector
  10. Battery power supply header
    Supports 2.5V-5.5V battery (Note: the board cannot be powered by USB port and battery at the same time)

Pinout definition
BG95 EVB development board pinout definition
Outline dimensions
BG95 EVB development board outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.193 kg
