IC51-0644-824-5, Test & Burn-in Socket

SKU:6934
Part No.:IC51-0644-824-5
Brand:Yamaichi

$71.99
PriceQuantity
$70.992+
$69.993+
$68.994+
Description

Details

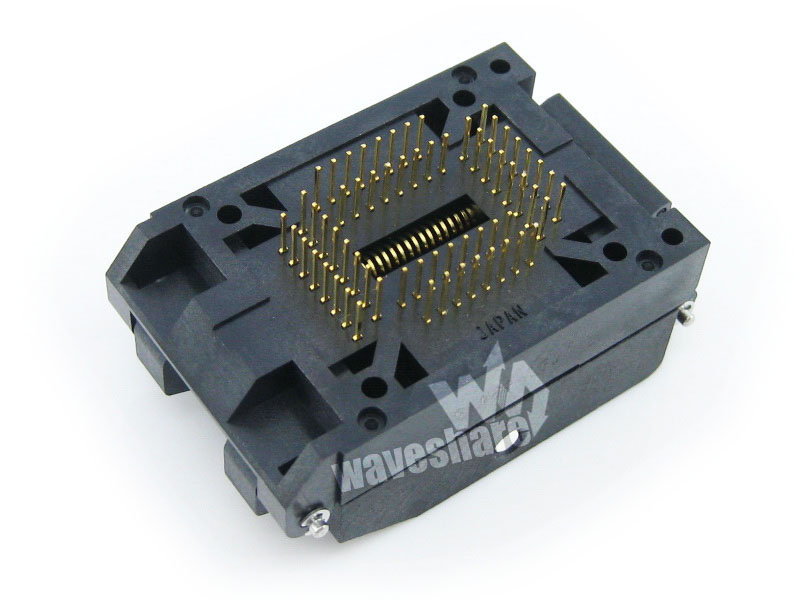

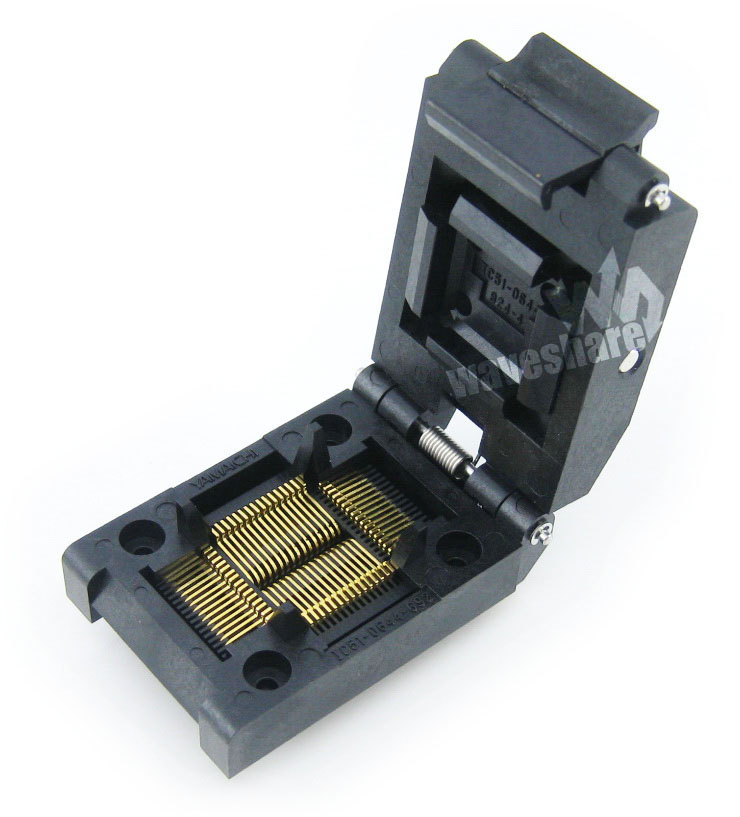

Yamaichi IC Test & Burn-in Socket, for QFP64/TQFP64/FQFP64/PQFP64 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Supported Devices

  • Package
    • QFP64
    • TQFP64
    • FQFP64
    • PQFP64
  • Pitch: 0.8mm

Socket PN

  • IC51-0644-824-5

Download

Outline and Dimensions

Note: please pay attention especially to the value E, which should be fit to the chip.

Unit: mm
Part NumberPitchPinsApplicable IC Dimensions (REF.)Outside Dimensions (REF.)
A x BC x DEFG x H
IC51-0644-824-5 0.8 64 14 x 14 16 x 16 15.2 - 30 x 42.5


Weight: 0.03 kg

Quick Overview

  • IC51-0644-824-5 Socket x 1
