Details
Electronic Shelf Label Series
low power, wide viewing angle, paper-like effect without electricity
Ideal for price tags, shelf labels, industrial instruments...
- Red/yellow/black/white 4-color e-paper display, options for 2.13inch / 2.66inch / 2.9inch / 3.5inch
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Cloud platform support, enabling image refresh via ESL-Gateway-AP base station
- 0 ~ 40°C operating temperature, suitable for common usage scenarios
- Built-in replaceable battery, with ultra-long battery life of approx. 5 years
- ABS plastic case, dustproof and better protection
ESL-ePaper-2.13G
2.13inch e-paper display
ESL-ePaper-2.66G
2.66inch e-paper display
ESL-ePaper-2.9G
2.9inch e-paper display
ESL-ePaper-3.5G
3.5inch e-paper display
| ESL-ePaper-2.13G | |||
|---|---|---|---|
| Display Technology | E-Paper display | Active Display Area | 48.55 × 23.7mm |
| Standard | BLE 5.1 | Operating Frequency | 2.4 ~ 2.485GHz |
| Resolution | 250 × 122 pixels | Battery Life | up to 5 years |
| Pixel Density (DPI) | 130 | Battery Capacity | 1200mAh |
| Display Color | Red/Yellow/Black/White | Operating Temperature | 0~40℃ |
| ESL-ePaper-2.66G | |||
|---|---|---|---|
| Display Technology | E-Paper display | Active Display Area | 60.09 × 30.7mm |
| Standard | BLE 5.1 | Operating Frequency | 2.4 ~ 2.485GHz |
| Resolution | 296 × 152 pixels | Battery Life | up to 5 years |
| Pixel Density (DPI) | 125 | Battery Capacity | 1200mAh |
| Display Color | Red/Yellow/Black/White | Operating Temperature | 0~40℃ |
| ESL-ePaper-2.9G | |||
|---|---|---|---|
| Display Technology | E-Paper display | Active Display Area | 66.9 × 29.06mm |
| Standard | BLE 5.0 | Operating Frequency | 2.4 ~ 2.485GHz |
| Resolution | 296 × 128 pixels | Battery Life | up to 5 years |
| Pixel Density (DPI) | 112 | Battery Capacity | 1200mAh |
| Display Color | Red/Yellow/Black/White | Operating Temperature | 0~40℃ |
| ESL-ePaper-3.5G | |||
|---|---|---|---|
| Display Technology | E-Paper display | Active Display Area | 79.68 × 38.18mm |
| Standard | BLE 5.1 | Operating Frequency | 2.4 ~ 2.485GHz |
| Resolution | 384 × 184 pixels | Battery Life | up to 5 years |
| Pixel Density (DPI) | 122 | Battery Capacity | 1200mAh |
| Display Color | Red/Yellow/Black/White | Operating Temperature | 0~40℃ |
Meets viewing needs from all angles, with a nearly 180° viewing angle
Working with ESL ePaper series for wireless image refreshing
| Dimension | 180 × 180 × 33mm | Data transmission | WiFi |
|---|---|---|---|
| Operating Temperature | -10 ~ 60℃ | WiFi Frequency | 2.4GHz+5GHz |
| Power supply | 48V POE | Speed | 1167Mbps |
| weight | 500g | Coverage Range | radius 10~30m indoor |
* Note: the ESL-Gateway-AP Base Station is required to refresh ESL ePaper series
* for reference only, please refer to the Package Content for the detailed part list.
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
ESL-ePaper-2.13G
ESL-ePaper-2.66G
ESL-ePaper-2.9G
ESL-ePaper-3.5G
ESL-Gateway-AP
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
| Model | dimensions | Active Display Area | Display Color |
|---|---|---|---|
ESL-ePaper-2.13G |
71 × 34.7 × 11.6mm | 48.55 × 23.7mm | Red/Yellow/Black/White |
ESL-ePaper-2.66G |
85 × 41 × 9.7mm | 60.09 × 30.7mm | |
ESL-ePaper-2.9G |
92 × 41.5 × 7.5mm | 66.9 × 29.06mm | |
ESL-ePaper-3.5G |
101.5 × 50 × 11.8mm | 79.68 × 38.18mm |
Quick Overview
- There is a battery inside the ESL ePaper display.
- The ESL e-Paper displays need to be used with ESL-Gateway-AP base station.
ESL-ePaper-2.13G
ESL-ePaper-2.13G x1
ESL-ePaper-2.66G
ESL-ePaper-2.66G x1

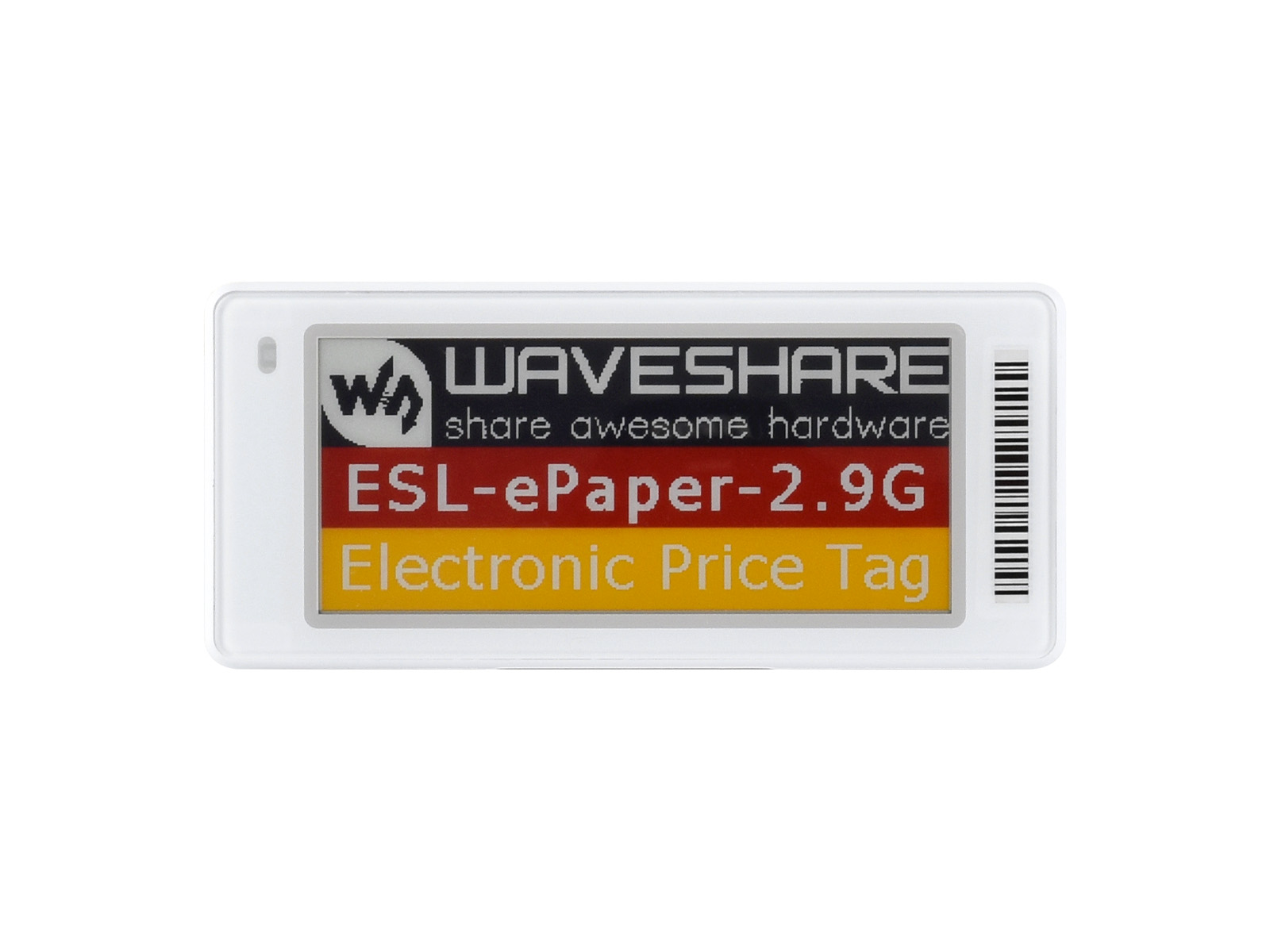

ESL-ePaper-2.9G
ESL-ePaper-2.9G x1

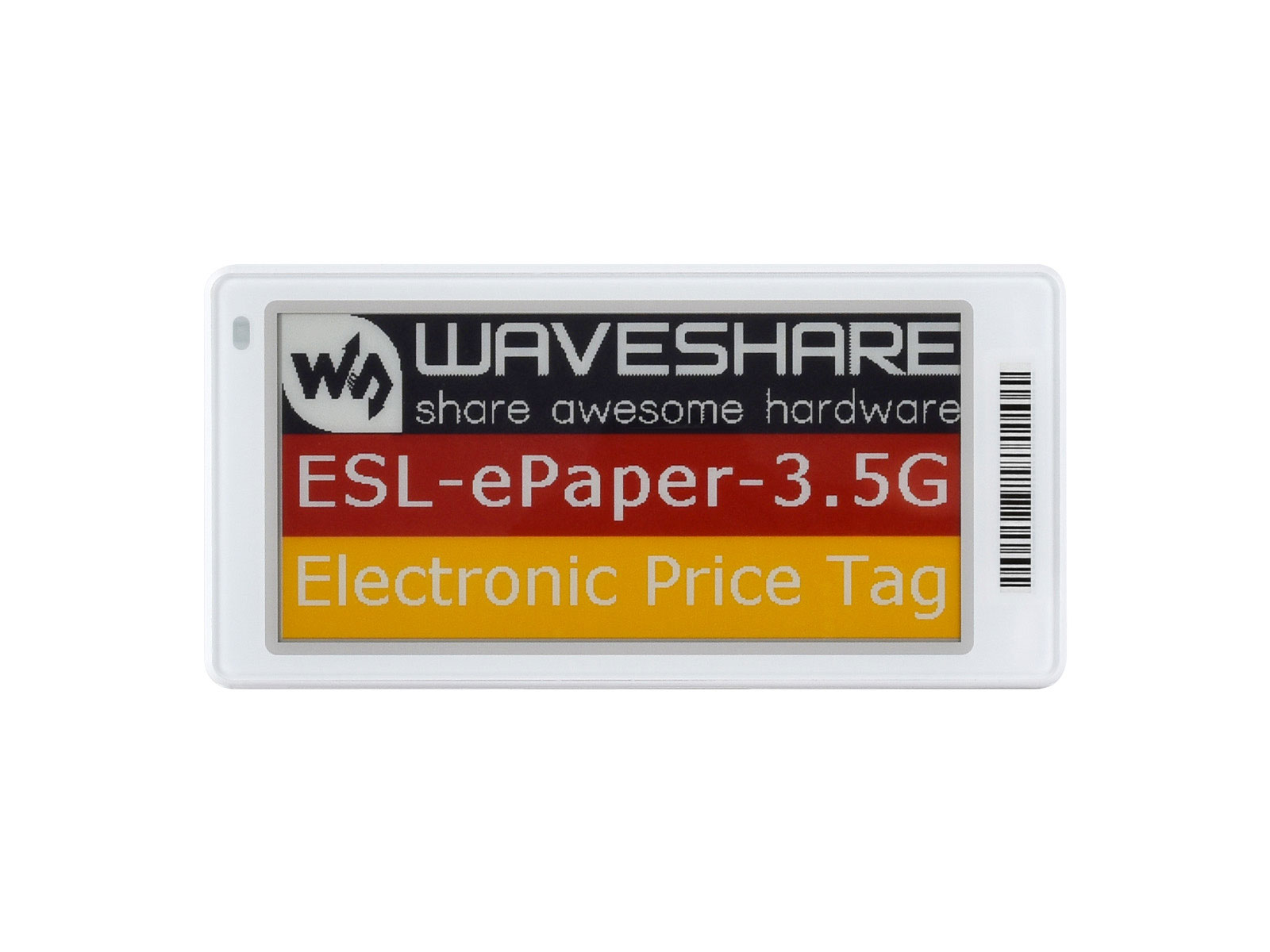

ESL-ePaper-3.5G
ESL-ePaper-3.5G x1
ESL-Gateway-AP
- ESL-Gateway-AP x1
- Mounting base x1
- Network cable ~1m x1
- PoE power supply (EU Plug) x1
- Screws pack x1
ESL-Eval-Kit
- ESL-Gateway-AP x1
- ESL-ePaper-2.13G x1
- ESL-ePaper-2.9G x1
- ESL-ePaper-2.66G x1
- ESL-ePaper-3.5G x1
- Mounting base x1
- Network cable ~1m x1
- PoE power supply (EU Plug) x1
- Screws pack x1
