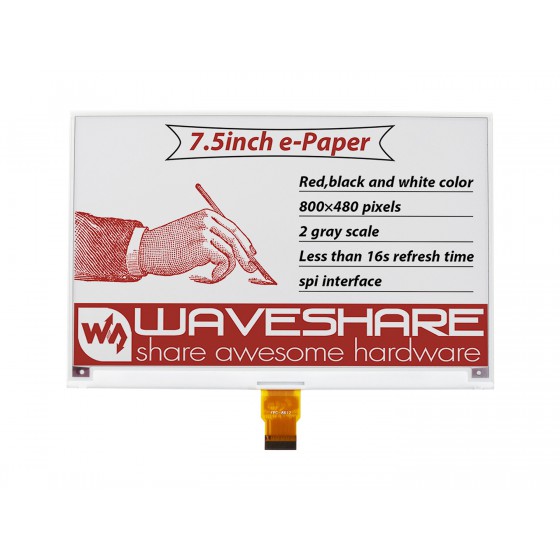

7.5inch e-Paper (B) E-Ink Raw Display, 800×480 pixels, Red / Black / White Three-Color, SPI Interface, without PCB
7.5" e-Paper (B)
low power consumption, wide viewing angle, paper-like displaying without electricity
Ideal for price tags, shelf labels, industrial instruments...
- Size
7.5" - Resolution
800×480 - Viewing Angle
>170° - Display Color
Red / Black / White - Grey Scale
2 - Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective - Refreshing
Black & White Color
Partial Refresh Support
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| operating voltage | 3.3V | display color | red, black, white |
|---|---|---|---|
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | 170.2 × 111.2 × 1.18mm | full refresh time | 26s |
| resolution | 800 × 480 pixels | Fast Refresh time | 16s |
| display size | 163.2 × 97.92mm | Black & White Partial Refresh time |
1.5s |
| refresh power | 48mW (typ.) | standby current | <0.01uA (almost none) |
| dot pitch | 0.205 × 0.204mm | viewing angle | >170° |
