7.3inch ACeP 7-Color E-Paper E-Ink Display Module, 800×480 Pixels, SPI Communication
e-Paper, e-Paper, 5.65″ - 13.3″

7.3inch ACeP 7-Color E-Paper E-Ink Display Module, 800×480 Pixels, SPI Communication

SKU:23434
Part No.:7.3inch e-Paper HAT (F)
Brand:Waveshare

$75.99
PriceQuantity
$73.9910+
$72.9950+
$72.59100+
Related Products:
Share:
Description

Details

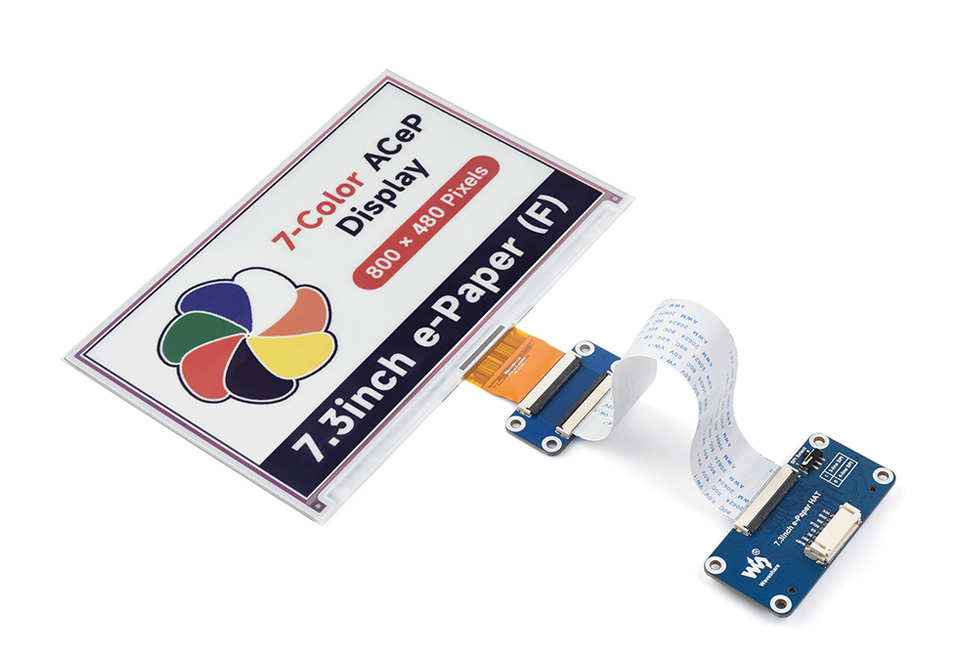

7.3inch ACeP 7-Color E-Paper E-Ink Display Module, 800×480 Pixels, SPI Communication
7.3″ 7-Color E-Paper Module

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

  • Size7.3″
  • Resolution800×480
  • Viewing Angle>170°
  • Display Color7-color
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features at a glance
  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Specifications
operating voltage 3.3V/5V display color 7-Color
interface 3-wire SPI, 4-wire SPI grey scale 2
outline dimensions 170.2 × 111.2mm full refresh time 35s
display size 160 × 96mm refresh power <49.4mW (typ.)
DOT PITCH 0.2 × 0.2 mm standby current <0.01uA (almost none)
RESOLUTION 800×480 pixels viewing angle >170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
SCLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin
Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh1 Pi Head-er2 Flexi-ble Interface
1.02inch e-Paper Module black, white 2 128×80 21.76 × 14.00 42.0 × 27.0 2 √     SPI
1.54inch e-Paper Module black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 2 √     SPI
1.54inch e-Paper Module (B) red, black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 14       SPI
1.54inch e-Paper Module (C) yellow, black, white 2 152×152 27.51 × 27.51 48.0 × 33.0 27       SPI
1.64inch e-Paper Module (G) red, yellow, black, white 2 168×168 29.568 × 29.568 47 × 38 12       SPI
2.13inch e-Paper HAT black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 2 √ √   SPI
2.13inch e-Paper HAT+ black, white 2 250×122 48.55 × 23.70 65.0 × 30.5 2 √ √   SPI
2.13inch e-Paper HAT (B) red, black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 15   √   SPI
2.13inch e-Paper HAT (C) yellow, black, white 2 212×104 48.55 × 23.70 65.0 × 30.2 15   √   SPI
2.13inch e-Paper HAT (D) black, white 2 212×104 48.55 × 23.70 59.2 × 29.2 2 √ √ √ SPI
2.13inch e-Paper HAT (G) red, yellow, black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 25   √   SPI
2.13inch Touch e-Paper HAT black, white 2 250×122 48.55 × 23.70 69.15 × 38.90 2 √ √   SPI
2.13inch Touch e-Paper HAT (with case) black, white 2 250×122 48.55 × 23.70 72.20 × 41.90 2 √ √   SPI
2.15inch e-Paper HAT+ (B) red, black, white 2 296×160 48.10 × 26.00 65.0 × 34.0 23   √   SPI
2.15inch e-Paper HAT+ (G) red, yellow, black, white 2 296×160 48.10 × 26.00 65.0 × 34.0 20   √   SPI
2.36inch e-Paper Module (G) red, yellow, black, white 2 296×168 52.096 × 29.568 69.5 × 38.5 12       SPI
2.66inch e-Paper Module black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 6 √     SPI
2.66inch e-Paper Module (B) red, black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 15       SPI
2.66inch e-Paper Module (G) red, yellow, black, white 2 360×184 60.05 × 30.69 85.0 × 38.5 26       SPI
2.7inch e-Paper HAT black, white 4 264×176 57.29 × 38.19 85.0 × 56.0 6 √ √   SPI
2.7inch e-Paper HAT (B) red, black, white 2 264×176 57.288 × 38.192 73.5 × 56.0 15   √   SPI
2.9inch e-Paper Module black, white 4 296×128 66.89 × 29.05 89.5 × 38.0 3 √     SPI
2.9inch e-Paper Module (B) red, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15       SPI
2.9inch e-Paper Module (C) yellow, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15       SPI
2.9inch e-Paper HAT (D) black, white 2 296×128 66.90 × 29.06 79.0 × 36.7 2 √ √ √ SPI
2.9inch Touch e-Paper HAT black, white 4 296×128 66.89 × 29.05 89.10 × 42.70 3 √ √   SPI
3inch e-Paper Module (G) red, yellow, black, white 2 400×168 70.4 × 29.568 88.5 × 41 12       SPI
3.52inch e-Paper HAT black, white 2 360×240 74.51 × 49.67 86.5 × 57 1.5   √   SPI
3.52inch e-Paper HAT (B) red, black, white 2 360×240 74.51 × 49.67 86.5 × 57 16   √   SPI
3.7inch e-Paper HAT black, white 4 480×280 47.32 × 81.12 58.0 × 96.5 3 √ √   SPI
4inch e-Paper HAT+ (E) E6 full color 2 600×400 84.6 × 56.40 101.00 × 68.00 19   √   SPI
4.01inch e-Paper HAT (F) 7-Color 2 640×400 86.40 × 54.00 98.5 × 70.0 30   √   SPI
4.2inch e-Paper Module black, white 4 400×300 84.80 × 63.60 103.0 × 78.5 5 √     SPI
4.2inch e-Paper Module (B) red, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15       SPI
4.26inch e-Paper HAT black, white 4 800×480 92.80 × 55.68 107.0 × 64.0 4 √ √   SPI
4.3inch e-Paper UART Module black, white 4 800×600 88.00 × 66.00 118.0 × 75.0 1.5       UART
4.37inch e-Paper Module (G) red, yellow, black, white 2 512×368 90.11 × 64.77 101.5 × 81.5 14       SPI
5.65inch e-Paper Module (F) 7-Color 2 600×448 114.9 × 85.8 138.5 × 100.5 <35       SPI
5.79inch e-Paper Module black, white 4 792×272 139.00 × 47.74 152.50 × 58.50 3.5 √     SPI
5.79inch e-Paper Module (B) red, black, white 2 792×272 139.00 × 47.74 152.50 × 58.50 24       SPI
5.79inch e-Paper Module (G) red, yellow, black, white 2 792×272 139.00 × 47.74 152.50 × 58.50 21       SPI
5.83inch e-Paper HAT black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 5   √   SPI
5.83inch e-Paper HAT (B) red, black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 20   √   SPI
6inch e-Paper HAT black, white 16 800×600 122.4 × 90.6 138.4 × 101.8 <1 √ √   USB/SPI/
I80
6inch HD e-Paper HAT black, white 16 1448×1072 122.4 × 90.6 138.4 × 101.8 <1 √ √   USB/SPI/
I80
7.3inch E-Paper HAT (E) E6 full color 2 800×480 160 × 96 170.2 × 111.2 12   √   SPI
7.3inch E-Paper HAT (F) 7-Color 2 800×480 160 × 96 170.2 × 111.2 35   √   SPI
7.3inch E-Paper HAT (G) red, yellow, black, white 2 800×480 160 × 96 170.2 × 111.2 16   √   SPI
7.5inch e-Paper HAT black, white 4 800×480 163.20 × 97.92 170.2 × 111.2 4 √ √   SPI
7.5inch HD e-Paper HAT black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 5   √   SPI
7.5inch e-Paper HAT (B) red, black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 26 √ √   SPI
7.5inch HD e-Paper HAT (B) red, black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 21   √   SPI
7.5inch e-Paper HAT (C) yellow, black, white 2 640×384 163.20 × 97.92 170.2 × 111.2 16   √   SPI
7.8inch e-Paper HAT black, white 16 1872×1404 158.18 × 118.64 173.8 × 127.6 <1 √ √   USB/SPI/
I80
9.7inch e-Paper HAT black, white 16 1200×825 202.8 × 139.43 218.8×156.4 <1 √ √   USB/SPI/
I80
10.3inch e-Paper HAT black, white 16 1872×1404 209.66 × 157.25 216.7 × 174.4 <1 √ √   USB/SPI/
I80
10.3inch e-Paper HAT (D) black, white 16 1872×1404 209.66 × 157.25 227.7 × 165.8 <1 √ √ √ USB/SPI/
I80
10.3inch e-Paper HAT (G) black, white 16 1872×1404 209.66 × 157.25 225.70 × 183.40 <1 √ √   USB/SPI/
I80
12.48inch e-Paper Module black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <8   √   SPI
12.48inch e-Paper Module (B) red, black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 37   √   SPI
13.3inch e-Paper HAT black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 <1 √ √   USB/SPI/
I80
13.3inch e-Paper HAT (B) red, black, white 2 960×680 275.52 × 195.16 286.32 × 212.26 22 √ √   SPI
13.3inch e-Paper HAT (K) black, white 4 960×680 275.52 × 195.16 286.32 × 212.26 5 √ √   SPI
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
e-Paper panels comparing

Weight: 0.156 kg

Quick Overview

  1. 7.3inch e-Paper (F) x1

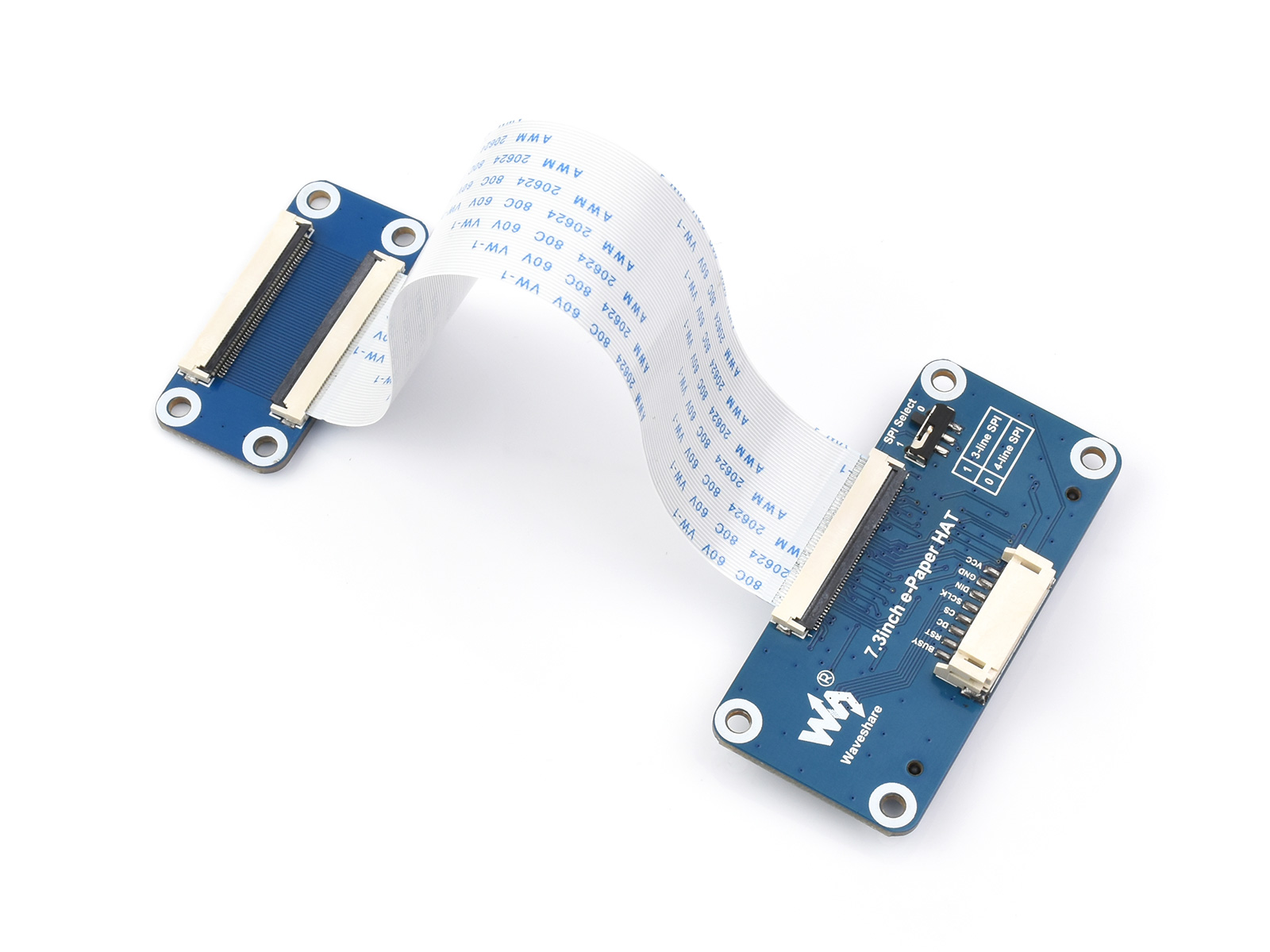

  2. Driver Board and FFC cable x1
  3. PH2.0 20cm 8Pin x1
  4. RPi screws pack (2pcs) x1
