2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 240×320 Resolution
0.71″ - 2.4″

2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 240×320 Resolution

SKU:29063
Part No.:2inch Capacitive Touch LCD
Brand:Waveshare

$13.99
PriceQuantity
1~9
$13.3910~49
$13.0950~99
$12.97100+

Details

2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 262K Colors, 240×320 Resolution, Faster Response and More Durable
2inch Capacitive Touch LCD Module

Embedded ST7789T3 driver and CST816D capacitive touch control chip

Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino

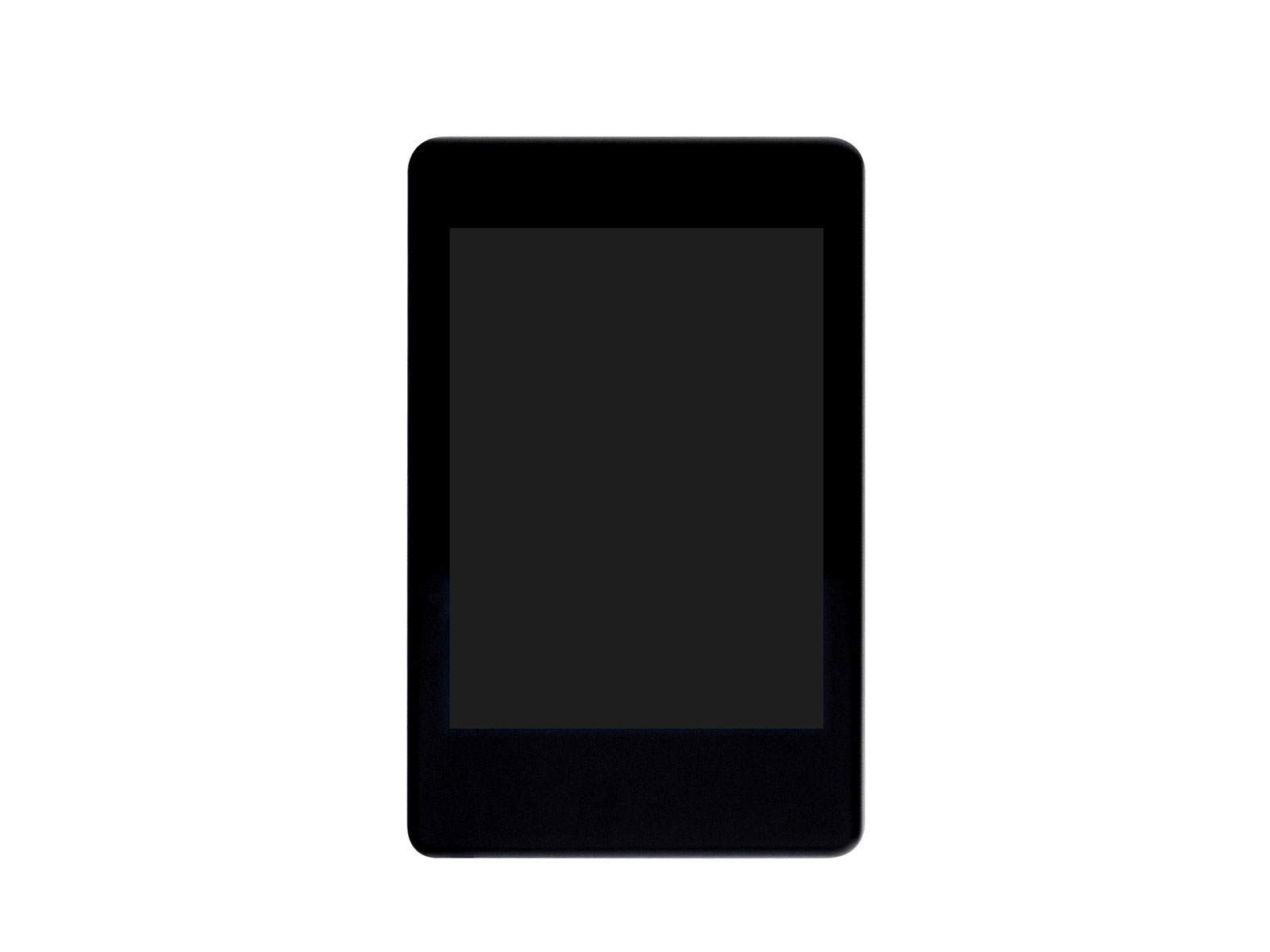

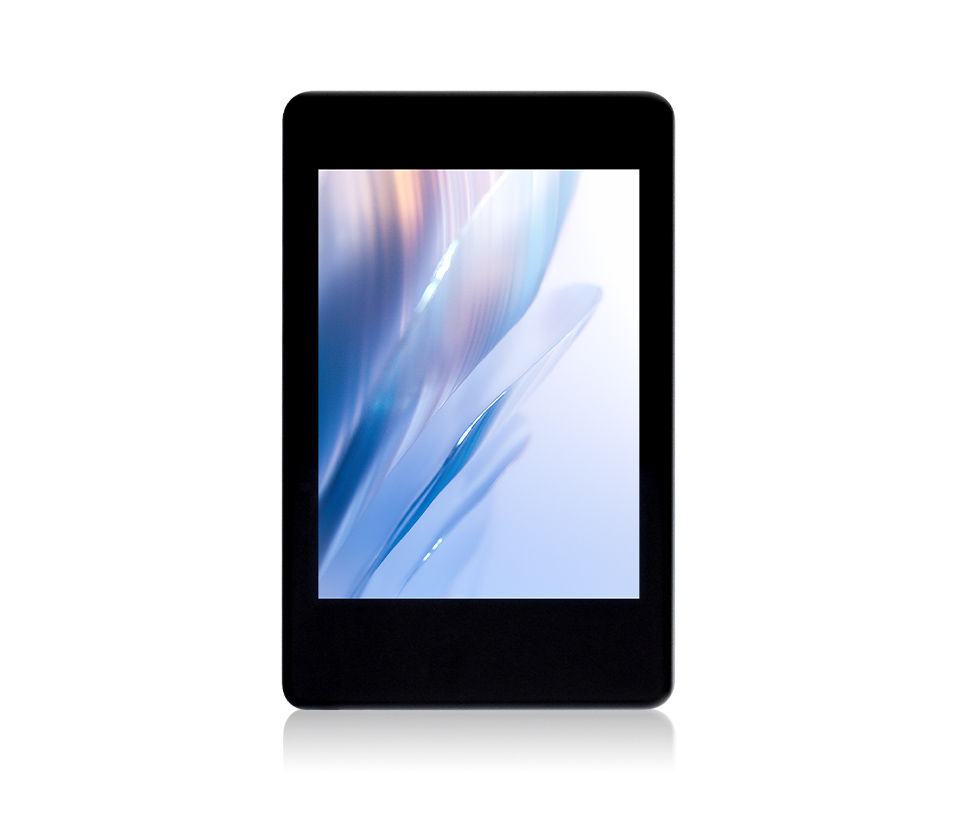

2inch Capacitive Touch LCD display, front view

  • Size2"
  • Resolution240×320
  • Display Color262K
  • Display PanelIPS

  • Display DriverST7789T3
  • Display InterfaceSPI
  • Touch DriverCST816D
  • Touch InterfaceI2C
Features at a glance
  • 240×320 resolution, 262K colors, clear and colorful displaying effect
  • High touch screen transmittance, fast response and long lifetime
  • Embedded with ST7789T3 driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
  • Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
  • Onboard voltage translator, compatible with 3.3V / 5V operating voltage
  • Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)

Specifications
Operating Voltage 3.3V / 5V Resolution 240 × 320 pixels
Display Driver ST7789T3 Touch Driver CST816D
Display Interface 4-wire SPI Touch Interface I2C
Display Panel IPS Touch Type Capacitive
Pixel Pitch 0.1275 × 0.1275 (mm) Touch Points single point touch
Display Size 30.6 × 40.8 (mm) Module Size 37.1 × 58.8 (mm)

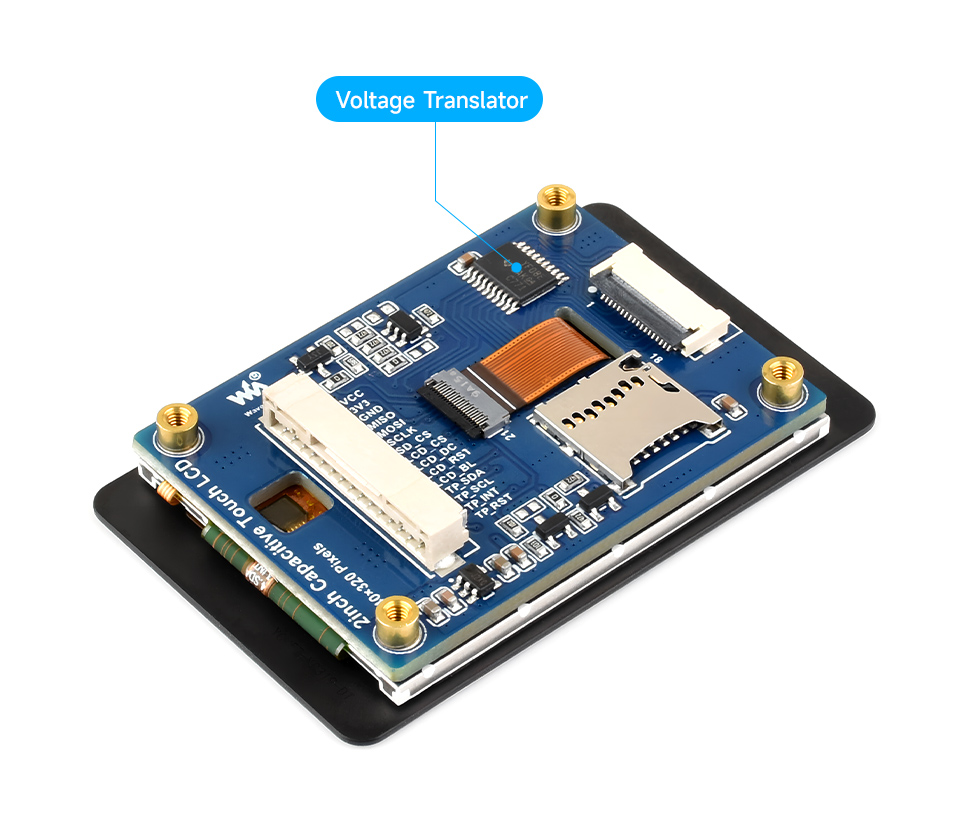

Onboard Voltage Translator

Compatible With 3.3V / 5V Operating voltage

2inch Capacitive Touch LCD display, onboard voltage translator

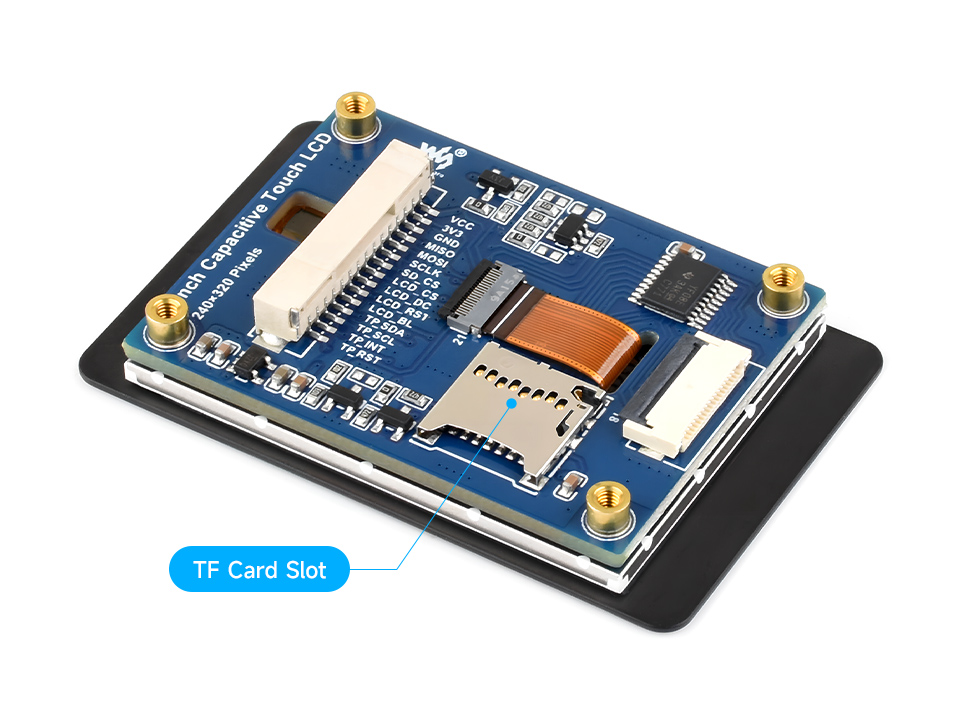

Onboard TF Card Slot

For storing more pictures or files

2inch Capacitive Touch LCD display, supports 5-Point touch

Suitable For Multiple Programming Platforms

Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility



Raspberry Pi

Raspberry Pi Pico

ESP32

Arduino Boards



SPI and I2C Control Interfaces

Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board

2inch Capacitive Touch LCD display, pin description
Pin Description 15PIN
Pin No.		 18PIN
Pin No.
VCC Power (3.3V / 5V input) 1 1
3V3 Power (3.3V input) 2 NC
GND Ground 3 3
MISO SPI MISO pin 4 6
MOSI SPI MOSI pin 5 5
SCLK SPI CLK pin 6 4
SD_CS TF card chip selection, low active 7 10
LCD_CS LCD chip selection, low active 8 9
LCD_DC LCD data/command selection (high for data, low for command) 9 7
LCD_RST LCD reset pin, low active 10 8
LCD_BL LCD backlight pin 11 2
TP_SDA Touch panel data pin 12 14
TP_SCL Touch panel clock pin 13 13
TP_INT Touch panel interrupt pin 14 15
TP_RST Touch panel reset pin, low active 15 12



Hardware Connection

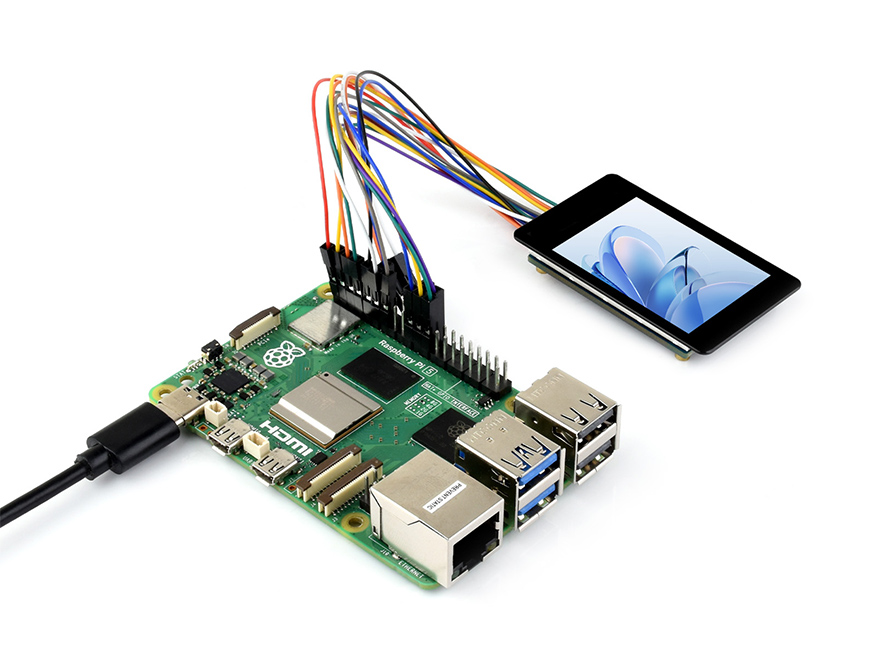

Connecting with Raspberry Pi 5

2inch Capacitive Touch LCD display usage demo, connecting with Raspberry Pi 5

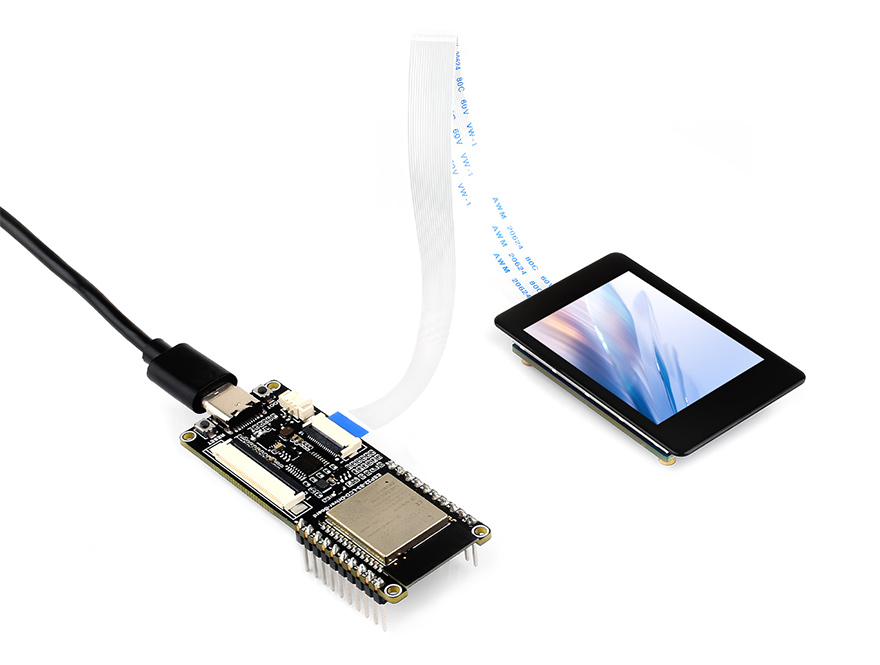

Connecting with ESP32-S3

2inch Capacitive Touch LCD display usage demo, connecting with ESP32-S3

* for reference only, the Raspberry Pi 5 and ESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.



Outline dimensions
2inch Capacitive Touch LCD display, outline dimensions

Selection Guide

Part NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader
0.49inch OLED Module OLED White 64×32 14.40×11.50 I2C SSD1315 15.5×13.0 MX1.25 connector
0.71inch LCD Module IPS 65K colorful 160×160 18×18 4-wire SPI GC9D01 20.1×22.3 SH1.0 connector
0.71inch DualEye LCD Module IPS 65K colorful 160×160 18×18 SPI GC9D01 20.00×51.00 SH1.0 connector
0.85inch LCD Module IPS 65K colorful 128×128 15.21×15.21 4-wire SPI GC9107 19.0×22.5 GH1.25 connector
0.91inch OLED Module OLED White 128×32 22.38×5.58 I2C SSD1306 36.0×12.5 PH2.0 connector
0.95inch RGB OLED (A) OLED 65K colorful 96×64 20.14×13.42 4-wire SPI SSD1331 31.7×37.0 angled/horizontal
0.95inch RGB OLED (B) OLED 65K colorful 96×64 20.14×13.42 4-wire SPI SSD1331 31.7×37.0 straight/vertical
0.96inch LCD Module IPS 65K colorful 160×80 21.70×10.80 4-wire SPI ST7735S 32.5×26.0 PH2.0 connector
0.96inch OLED (A) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.70×11.20 3/4-wire SPI, I2C SSD1306 33.0×33.5 angled/horizontal
0.96inch OLED (B) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.70×11.20 3/4-wire SPI, I2C SSD1306 33.0×33.5 straight/vertical
0.96inch OLED Module (C) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.74×11.18 4-wire SPI, I2C SSD1315 26.0×26.0 straight/vertical
0.96inch OLED Module (D) OLED White 128×64 21.74×11.18 4-wire SPI, I2C SSD1315 26.0×26.0 straight/vertical
0.96inch OLED Module (E) OLED Blue 128×64 21.74×11.18 4-wire SPI, I2C SSD1315 26.0×26.0 straight/vertical
0.96inch RGB OLED Module OLED 65K colorful 64×128 10.862×21.736 3/4-wire SPI SSD1357 32.5×26.0 GH1.25 connector
1.14inch LCD Module IPS 65K colorful 240×135 24.91×14.86 4-wire SPI ST7789 35.0×32.0 PH2.0 connector
1.27inch RGB OLED Module OLED 262K colorful 128×96 25.708×19.28 3/4-wire SPI SSD1351 42.2×29.0 GH1.25 connector
1.28inch LCD Module IPS 65K colorful 240×240 Φ32.4mm 4-wire SPI GC9A01 40.4×37.5
Φ37.5		 PH2.0 connector
1.28inch Touch LCD IPS
(with touch)		 65K colorful 240×240 Φ32.4mm 4-wire SPI, I2C GC9A01, CST816S 39.89×38.5
Φ38.5		 GH1.25 connector
1.3inch LCD Module IPS 65K colorful 240×240 23.40×23.40 4-wire SPI ST7789 45.0×31.0 PH2.0 connector
1.3inch OLED (A) OLED Blue 128×64 29.42×14.70 3/4-wire SPI, I2C SH1106 40.5×37.5 angled/horizontal
1.3inch OLED (B) OLED Blue 128×64 29.42×14.70 3/4-wire SPI, I2C SH1106 40.5×37.5 straight/vertical
1.3inch OLED Module (C) OLED White 64×128 14.70×29.42 4-wire SPI, I2C SH1107 30.0×39.5 PH2.0 connector
1.32inch OLED Module OLED White (16 gray scale) 128×96 26.86×20.14 4-wire SPI, I2C SSD1327 34.3×30.5 GH1.25 connector
1.47inch LCD Module IPS 262K colorful 172×320 17.39×32.35 4-wire SPI ST7789V3 22.0×38.5 PH2.0 connector
1.5inch LCD Module IPS 262K colorful 240×280 24.77×28.90 4-wire SPI NV3030B 28.5×35.0 GH1.25 connector
1.5inch OLED Module OLED White (16 gray scale) 128×128 26.86×26.86 4-wire SPI, I2C SSD1327 44.5×37.0 PH2.0 connector
1.5inch OLED Module (B) OLED White 128×128 26.855×26.855 4-wire SPI, I2C SH1107 38.5×44.5 GH1.25 connector
1.5inch RGB OLED Module OLED 65K colorful 128×128 26.86×26.86 3/4-wire SPI SSD1351 44.5×37.0 PH2.0 connector
1.54inch LCD Module IPS 65K colorful 240×240 27.72×27.72 4-wire SPI ST7789 50.0×35.0 PH2.0 connector
1.54inch OLED Module OLED White 128×64 35.05×17.52 4-wire SPI, I2C SSD1309 43.0×37.5 GH1.25 connector
1.54inch OLED Module (B) OLED Blue 128×64 35.05×17.52 4-wire SPI, I2C SSD1309 43.0×37.5 GH1.25 connector
1.69inch LCD Module IPS 262K colorful 240×280 27.972×32.634 4-wire SPI ST7789V2 31.5×39.0 GH1.25 connector
1.69inch Touch LCD Module IPS 262K colorful 240×280 27.972×32.634 4-wire SPI, I2C ST7789V2 33.13×41.13 GH1.25 connector
1.8inch LCD Module TFT 65K colorful 128×160 28.30×34.50 4-wire SPI ST7735S 56.5×34.0 PH2.0 connector
1.83inch LCD Module IPS 65K colorful 240×280 30.20×35.23 4-wire SPI NV3030B 33.0×40.0 GH1.25 connector
1.9inch LCD Module IPS 262K colorful 170×320 22.70×42.72 4-wire SPI ST7789V2 51.2×27.3 GH1.25 connector
2inch Capacitive Touch LCD IPS 262K colorful 240×320 30.60×40.80 4-wire SPI, I2C ST7789T3 37.1×58.8 GH1.25 connector, 18Pin FPC slot
2inch LCD Module IPS 262K colorful 240×320 30.60×40.80 4-wire SPI ST7789VW 58.0×35.0 PH2.0 connector
2.4inch LCD Module TFT 65K colorful 240×320 36.72×48.96 4-wire SPI ILI9341 70.5×43.3 PH2.0 connector
2.42inch OLED Module OLED White 128×64 55.01×27.49 4-wire SPI, I2C SSD1309 61.50×39.50 GH1.25 connector
2.42inch OLED Module (C) OLED Yellow 128×64 55.01×27.49 4-wire SPI, I2C SSD1309 61.50×39.50 GH1.25 connector
2.8inch Capacitive Touch LCD TFT 262K colorful 240×320 43.20×57.60 4-wire SPI, I2C ST7789T3 50.54×73.06 GH1.25 connector, 18Pin FPC slot
3.5inch Capacitive Touch LCD IPS 262K colorful 320×480 48.96×73.44 4-wire SPI, I2C ST7796S 61.00×92.44 GH1.25 connector, 18Pin FPC slot

*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Weight: 0.042 kg

Quick Overview

  1. 2inch Capacitive Touch LCD x1
  2. GH1.25 15Pin cable x1
