CP2102 USB to UART Module, USB mini connector

Overview

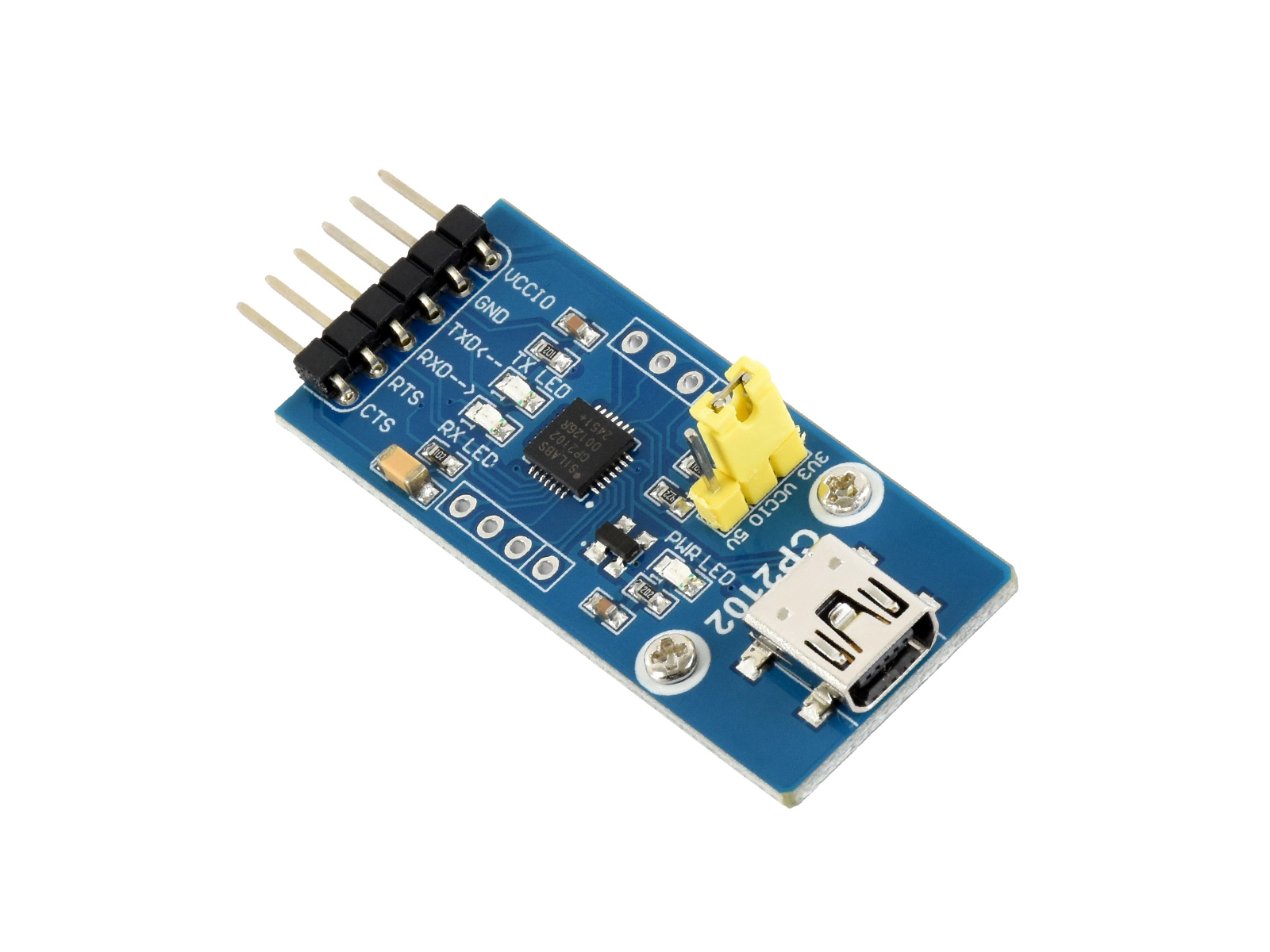

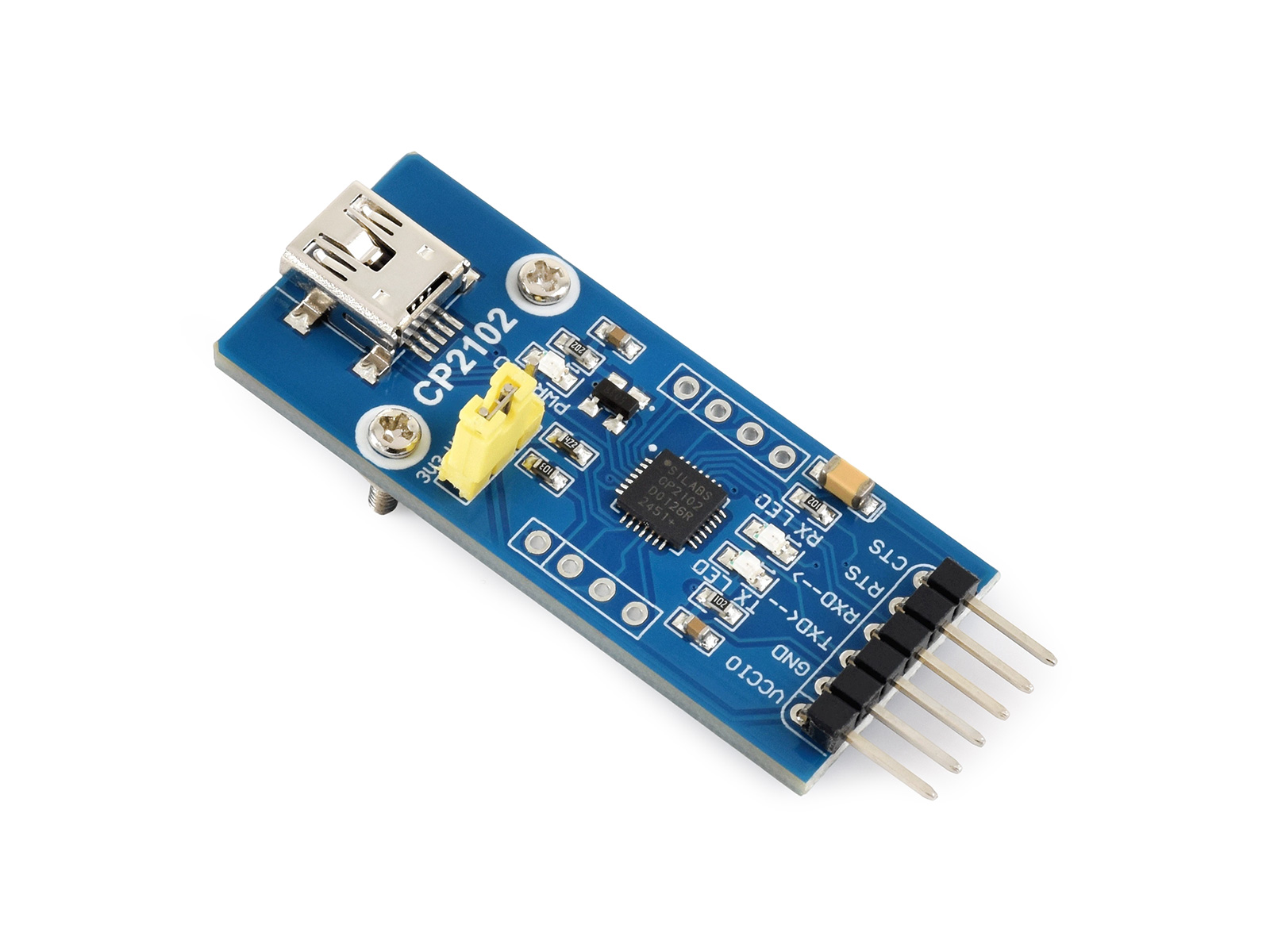

The CP2102 USB UART Board (mini) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard.

CP2102 features:

  • Single-Chip USB to UART Data Transfer
    • No external resistors required, no external crystal required
    • On-chip power-on reset circuit and voltage regulator
    • Integrated 1024-Byte EEPROM
  • USB Function Controller
    • USB Specification 2.0 compliant; full-speed (12 Mbps)
    • USB suspend states supported via SUSPEND pins
  • UART
    • All handshaking and modem interface signals
    • Data formats supported:
      • Data bits: 5, 6, 7, and 8
      • Stop bits: 1, 1.5, and 2
      • Parity: odd, even, no parity
    • Baud rates: 300 bps to 1 Mbits
    • 576 Byte receive buffer; 640 byte transmit buffer
    • Hardware or X-On/X-Off handshaking supported
    • Event character support
  • Virtual COM Port Device Drivers
    • Windows 8/7/Vista/Server 2003/XP/2000
    • MAC OS-X/OS-9
    • Linux 2.40 or higher
  • USBXpress Direct Driver Support
    • Windows 7/Vista/Server 2003/XP/2000
    • Windows CE
  • Temperature Range
    • –40 to +85 °C

Features

  • Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
  • Voltage output support: 5V or 3.3V
  • Integrated USB protection device: SP0503
  • 3 LEDs: TXD LED, RXD LED, POWER LED
  • Pins accessible on pinheaders: TXD, RXD, RTS, CTS

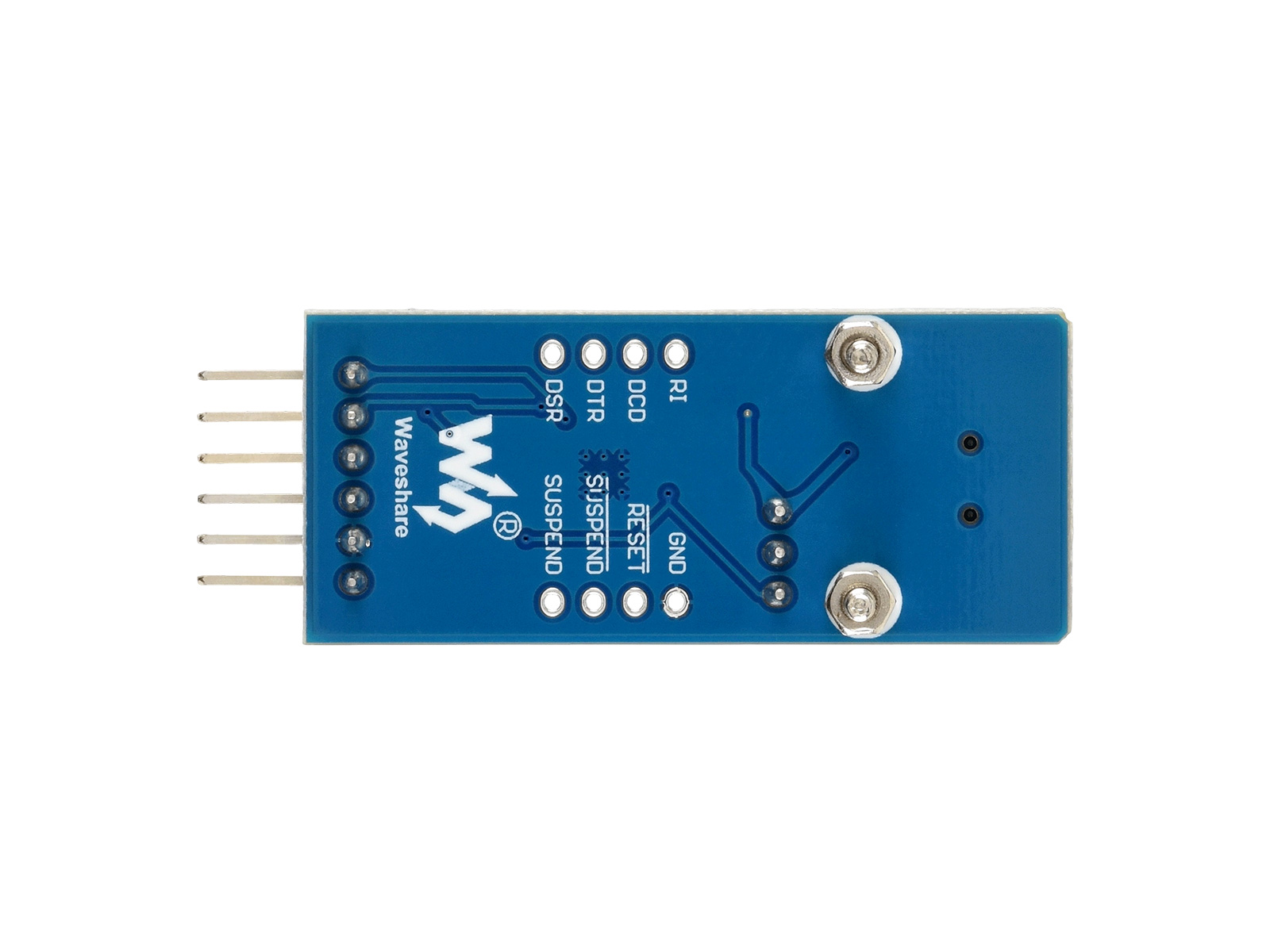

  • Other pins are accessible on drilled holes, easily connected to user application system (separate pinheaders are provided)

How to Use

In the case of working with a MCU:

  • VCCIO: 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
  • GND: connects to GND
  • TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
  • RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
  • RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
  • CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)

Note: VCP examples and USBXpress driver program library are provided.

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/CP2102_USB_UART_Board_(mini)

Weight: 0.012 kg
