Powered By Luckfox Core3576 Module To Enable AI Edge Computing,
Making It Easy For You To Explore The World Of AI
![Luckfox Core3576 Edge Computing Development Board, front view](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-1.jpg)
![Luckfox Core3576 Edge Computing Development Board, features](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-3.jpg)

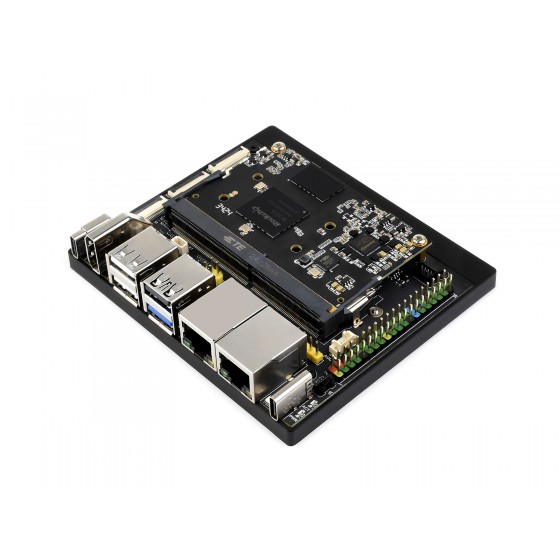

![Luckfox-Omni3576 Development Board](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-5-1.jpg)
Luckfox-Omni3576 Development Board
Core3576 module + base board, without case
![Luckfox-Omni3576-04000-Box](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-5-2.jpg)
Luckfox-Omni3576 Box Kit
Core3576 module + base board + Aluminum alloy case
Processor | Quad-core Arm [email protected] + Quad-core Arm [email protected] |
RAM | Options for 4 / 8GB LPDDR4X RAM |
eMMC | Options for 0 / 32 / 64GB eMMC Flash |
NPU | 6 TOPS@INT8, supports INT4, INT8, INT16, FP16, BF16, TF32 mixed operation |
GPU | ARM Mali G52 [email protected], supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1, built-in high-performance 2D/3D acceleration hardware |
ISP | Built-in 16MP ISP, supports multiple algorithm accelerators such as HDR, 3A, CAC, 3DNR, 2DNR, Sharpening, Dehaze, Enhance, Debayer, and small-angle lens distortion correction, etc. |
Video | Decoding: 4K@120fps (H.265/HEVC, VP9, AVS2, AV1); 4K@60fps (H.264/AVC) |
Encoding: 4K@60fps (H.265/HEVC, H.264/AVC) | |
Storage | TF card slot |
M.2 connector × 1 (PCIe NVMe SSD support, compatible with 2242/2260/2280 size) | |
Connectivity | 1000M Ethernet port × 2 |
Onboard wireless module supporting 2.4GHz/5GHz dual-band Wi-Fi6 and Bluetooth 5.2/BLE | |
Video Output | HDMI2.1 (4K@120fps) port × 1 |
4-lane MIPI DSI (2K@60fps) interface × 1 | |
Video Input | 4-lane MIPI CSI camera interface × 2 |
USB | USB Type-C (5Gbps/DP) × 1, supports OTG and image burning |
USB3.2 Gen1 port (5Gbps) × 1 | |
USB2.0 port × 3 | |
CAN | Supports high-speed CAN FD and CAN2.0A/B data communication. |
Audio | Onboard microphone |
3Pin MX1.25 audio output header | |
GPIO | 40Pin GPIO header (compatible with most Raspberry Pi HATs) |
System Support | Buildroot, Debian, Ubuntu, Android 14 |
Power input | 5V DC |
Ambient temperature | Operating temperature: 0°C ~ 60°C Storage temperature: 0°C ~ 70°C Storage humidity: 10% ~ 90%RH (no condensation) |
Others | Onboard IR receiver with 38KHz carrier frequency |
2Pin SH1.0 RTC battery header | |
5V fan header |
Equipped with high-performance RK3576 processor, integrated with quad-core Cortex-A72 and quad-core Cortex-A53, providing strong performance and high energy efficiency
![Luckfox Core3576 Edge Computing Development Board, with Octa-Core AIoT processor](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-7.jpg)
Equipped with 6 TOPS computing power, easy to convert a variety of neural network models based on TensorFlow, MXNet, PyTorch, and Caffe frameworks.
![Luckfox Core3576 Edge Computing Development Board, Object Recognition demo](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-1.jpg)
Object Recognition
![Luckfox Core3576 Edge Computing Development Board, Face Recognition demo](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-2.jpg)
Face Recognition
![Luckfox Core3576 Edge Computing Development Board, Vehicle Recognition demo](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-3.jpg)
Vehicle Recognition
![Luckfox Core3576 Edge Computing Development Board, Pedestrian Detection demo](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-4.jpg)
Pedestrian Detection
![Luckfox Core3576 Edge Computing Development Board, Text Recognition demo](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-5.jpg)
Text Recognition
![Luckfox Core3576 Edge Computing Development Board, Semantic Segmentation demo](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-6.jpg)
Semantic Segmentation
![Luckfox Core3576 Edge Computing Development Board, supports a variety of neural network models](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-9-7.jpg)
Supports 4K@120fps (H.265/HEVC, VP9, AVS2, AV1), 4K@60fps (H.264/AVC) decoding and 4K@60fps (H.265/HEVC, H.264/AVC) encoding, easy to deal with HD video tasks
![Luckfox Core3576 Edge Computing Development Board, supports 4K encoding and decoding](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-11.jpg)
Different types of traffic can be distributed to different network interfaces: one for external Internet connection and another for internal LAN, which improves security and management flexibility
![Luckfox Core3576 Edge Computing Development Board, supports dual gigabit ethernet](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-13.jpg)
Note: the ETH1 port can support PoE power supply function through a PoE module.
Suitable for vision robotics, depth vision, stereo vision and other AI vision applications
![Luckfox Core3576 Edge Computing Development Board, with dual camera interfaces](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-15.jpg)
Optional for customized Aluminum alloy case with fins for Omni3576 development board, increases the contact and heat dissipation area between the metal case and the air to make the heat dissipation more efficient, with no frequency dropout for 24 hours at full load. Adopts passive fanless cooling design to greatly reduce dust accumulation, thus minimizing malfunctions.
![Luckfox Core3576 Edge Computing Development Board, optional for customized Aluminum Alloy case](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-17.jpg)
![Luckfox Core3576 Edge Computing Development Board, with rich peripheral interfaces](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-19.jpg)
![Luckfox Core3576 Edge Computing Development Board, with case](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-21.jpg)
Widely used in edge computing, local deployment of large models, intelligent commercial displays, cloud terminal products, industrial control hosts, automotive electronics, and more
![Luckfox Core3576 Edge Computing Development Board, application examples](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-23.jpg)
![Luckfox Core3576 Edge Computing Development Board, outline dimensions](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-details-size.jpg)
![](/img/devkit/Core3566002000/Core3566-details-19.jpg)
Quick Overview
Luckfox-Omni3576-0xxxx
OPTIONS Luckfox-Omni3576 Development Board (including Core3576 module + base board) x 1
![Core3576 Edge Computing Development Board](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-pack.jpg)
Luckfox-Omni3576-0xxxx-Box
OPTIONS Luckfox-Omni3576 Box Kit (including Core3576 module + base board + Aluminum alloy case) x 1
![Luckfox-Omni3576 Box Kit](/img/devkit/Luckfox-Omni3576-04000-Box/Luckfox-Omni3576-04000-Box-pack.jpg)
