IMX462 2MP IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, Options for 127.9° / 100.0° FOV

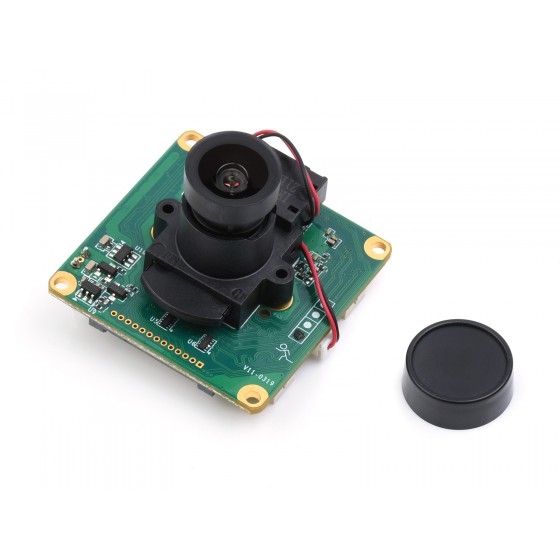

IMX462 Starlight Camera
2MP | IR-CUT | ISP
Compatible with Raspberry Pi series boards and Jetson Nano
Version Options
IMX462-127 2MP Starlight Camera
127.9° FOV
IMX462-100 2MP Starlight Camera
100.0° FOV
Device Support
Raspberry Pi series
Supports Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required)
Jetson Series
Support for Jetson series development kits
Specifications
| Sensor | IMX462-127 | IMX462-100 |
|---|---|---|
| CMOS SIZE | 1/2.8 inch | |
| PIXELS | 2MP (1920 × 1080) | |
| CAMERA TYPE | Color | |
| FOCUSING | Fixed focus | |
| SHUTTER | Rolling Shutter | |
| APERTURE | F1.61 | F1.0 |
| FOCAL LENGTH | 3.18mm | 3.9mm |
| FIELD OF VIEW | 127.9° | 100.0° |
| DISTORTION | < -51% | < -32.0% |
Starlight Camera
Clear Imaging even in Low Light Conditions
Built-in IR-CUT
Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect
Onboard ISP
Integrated Image Signal Processing Circuit, Clearer Imaging Effect
Working with Raspberry Pi
directly connect to Raspberry Pi different variants including 5/4B/3B+/3A+/3B/2B/B+/A+,
extra FPC cable is required for Zero / Zero 2 W series
- for reference only, Raspberry Pi 4B and 2W are NOT included.
- Specific driver is required for Raspberry Pi to use the IMX462 camera.
Working With Jetson Nano
Directly Connect To Jetson Nano Developer Kit
for reference only, Jetson Nano Developer Kit is NOT included.
Outline dimensions
Quick Overview
IMX462-127 2MP Starlight Camera
IMX462-127 2MP Starlight Camera x1
IMX462-100 2MP Starlight Camera
IMX462-100 2MP Starlight Camera x1
