IMX290-83 IR-CUT Camera, Starlight Camera Sensor, Fixed-Focus, 2MP

SKU:22025
Part No.:IMX290-83 IR-CUT Camera
Brand:Waveshare

$29.99
PriceQuantity
$29.392+
$29.093+
$28.974+
Description

Details

IMX290-83 IR-CUT Camera, Starlight Camera Sensor, Fixed-Focus, 2MP
IMX290-83 IR-CUT Camera

2MP | Starlight Camera | IR-CUT  | 83° FOV 

Compatible with Raspberry Pi series boards

Device Support

Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)

Note: a 15pin to 22pin FPC cable is required for connecting with Pi Zero / Zero 2 W and some CM3 / 3+ / 4 baseboards with a 22pin camera connector, please purchase separately.

Specifications
Sensor IMX290 CMOS size 1/2.8 inch
PIXELS 2MP (1920 × 1080) APERTURE F2
FOCAL LENGTH 3.95mm FIELD OF VIEW 83°
CAMERA TYPE Color FOCUSING Fixed focus
DISTORTION < 33% SHUTTER Rolling Shutter
Starlight Camera

Clear Imaging even in Low Light Conditions

Built-in IR-CUT

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

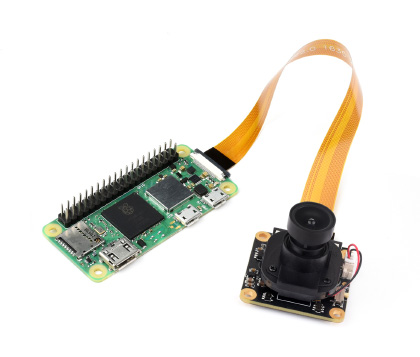

Working with Raspberry Pi

direct connect to Raspberry Pi different variants including 4B/3B+/3A+/3B/2B/B+/A+,
extra FPC cable is required for Zero / Zero 2 W series

* for reference only, Raspberry Pi and yellow FPC are NOT included.

outline dimensions

Weight: 0.019 kg

Quick Overview

  1. IMX290-83 IR-CUT Camera x1
  2. 15-pin FFC (opposite sides contact) x1
