Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, Optional Jetson Nano Core Module

SKU:21802
Part No.:JETSON-NANO-DEV-KIT

$159.99
PriceQuantity
1
$158.792
$158.193
$157.954+
Description

Details

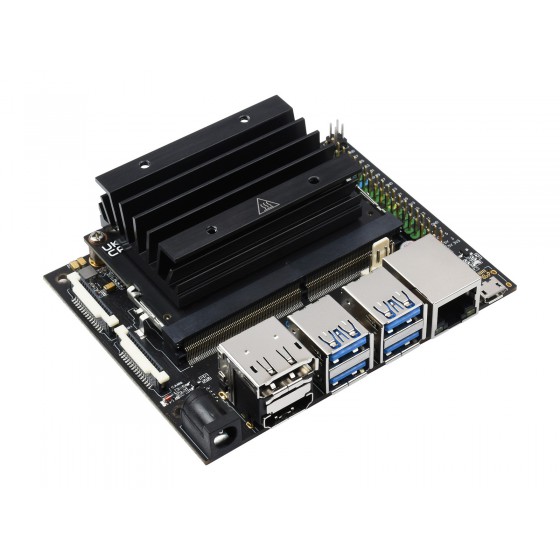

Jetson Nano Development / Expansion Kit, alternative solution of B01 kit, Optional Jetson Nano core module
Jetson Nano Development / Expansion Kit

Alternative solution of B01 kit

Based on AI computers Jetson Nano, providing almost the same peripheral interfaces, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.

comparing the appearance

compatible with expansion modules and cases of the Jetson Nano Developer Kit (B01)

Jetson Nano Developer Kit (B01)

JETSON-NANO-DEV-KIT

comparing the storage solution

default storage

Jetson Nano Developer Kit (B01)
The Nano module included in the B01 kit has no storage onboard, external TF card is required to be used as the system startup disk

JETSON-NANO-DEV-KIT
Includes a Nano module with onboard 16GB eMMC, more stable reading/writing, no extra TF card required for startup disk, providing adequate space for installing system image and development/study requirement in most cases

external storage option

Jetson Nano Developer Kit (B01)
The B01 kit requires an external TF card to be used as the system startup disk

JETSON-NANO-DEV-KIT
Comes with a 64GB TF card, no need to purchase separately, competent for complicate development projects

external TF card slot

Jetson Nano Developer Kit (B01)
There is no external TF card slot on the expansion board, it needs to be equipped with a Nano module with a TF card interface

JETSON-NANO-DEV-KIT
Support TF card. To use this function, you need to modify the device tree file, which is difficult for users who are just getting started. Can be used as memory expansion or startup disk

comparing the specifications

  Jetson Nano Developer Kit (B01) JETSON-NANO-DEV-KIT
GPU 128-core Maxwell
CPU Quad-core ARM A57 @ 1.43 GHz
Memory 4 GB 64-bit LPDDR4 25.6 GB/s
Storage TF card
(NOT included)
16GB eMMC + 64GB TF card
Video Encoder 250 MP/s
1x 4K @ 30 [HEVC]
2x 1080p @ 60 [HEVC]
4x 1080p @ 30 [HEVC]
Video Decoder 500 MP/s
1x 4K @ 60 [HEVC]
2x 4K @ 30 [HEVC]
4x 1080p @ 60 [HEVC]
8x 1080p @ 30 [HEVC]
Camera 2x MIPI CSI-2 DPHY lanes
Connectivity Gigabit Ethernet, M.2 Key E expansion connector
Display HDMI and DP
USB 4x USB 3.0, USB 2.0 Micro-B
Extension Interfaces GPIO, I2C, I2S, SPI, UART
Dimensions 100 × 80 × 29mm
Other 260-pin connector

Compatible with Jetson Nano Module
play around with binocular vision

Supports 2-lanes CSI Camera, suitable for binocular vision applications such as parallax algorithm ranging, facial recognition, organism detection, VR video recording...

Dual 4K outputs

supports DisplayPort and HDMI high definition ports

4x high speed USB3.0

USB3.0 high speed data transmission, allows more USB peripherals



color-coded 40PIN GPIO header

color-coded header pins with clear labels, handy for use

Introduction
  1. Core module socket
  2. TF card slot
  3. M.2 Key E connector
  4. 1.25mm Fan header
  5. PoE pins: PoE module is not included
  6. 40PIN GPIO header
  7. 2.54mm Fan header
  8. Micro USB port: for 5V power input or for USB data transmission
  9. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
  10. 4x USB 3.0 port
  11. HDMI output port
  12. DisplayPort connector
  13. DC jack: for 5V power input
  14. 2x MIPI CSI camera connector
  15. Multi-function 12PIN header
  16. PWR button: Power ON/OFF control (same function as the PWR BTN pin)
Outline dimensions
Ordering options

JETSON-IO-BASE-A
The carrier board ONLY, compatible with Jetson Nano

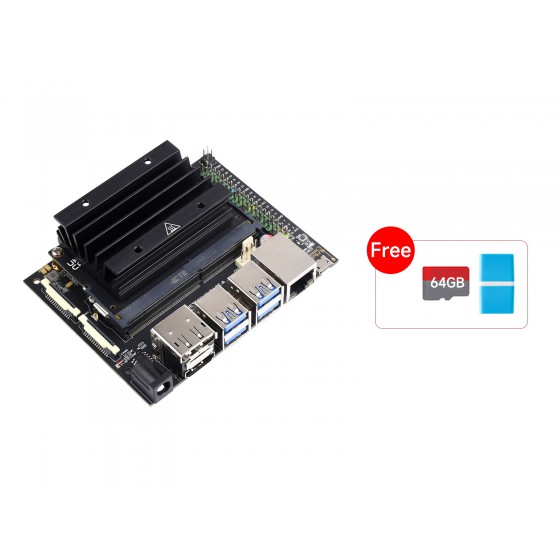

JETSON-NANO-DEV-KIT
The carrier board, along with Jetson Nano module, 64GB TF card, card reader and official heatsink

More available kits
Kit A B C D E F G
JETSON-NANO-DEV-KIT
Necessary accessories
(USB cable, cooling fan, ~1.5m Ethernet cable, 5V 4A power supply)
AC8265 dual-mode NIC
IMX219-77 Camera
7inch HDMI LCD (H)
IMX219-83 Stereo Camera
Jetson Nano Case (C)
Jetson Nano Case (A)
Jetson Nano Case (F)

JETSON-NANO-DEV-KIT-A: wireless NIC kit
With drive-free 5G (867 Mbps) / 2.4 G (300 Mbps) wireless NIC, it supports Bluetooth and WiFi dual modes, and 6DB high-gain dual antennas effectively improve penetration, and make data transmission wider and smoother, which is suitable for mobile networking scenarios. Note that only the Jetson Nano system is drive-free.

JETSON-NANO-DEV-KIT-B: single camera vision kit
If you want to play AI intelligent applications such as face recognition, road sign recognition and license plate recognition, this package is very suitable for you. With an 8 megapixel (3280 x 2464) high-definition camera, it can be used easily in various application scenarios.

JETSON-NANO-DEV-KIT-C: touch display kit
If the single camera vision package can't meet the requirements, this package with 7-inch IPS touch screen is undoubtedly a better choice. The 1024 x 600 pixel screen can display the images taken by the camera in real time. If you are a beginner, you can also benefit from the graphical operating system, killing two birds with one stone.

JETSON-NANO-DEV-KIT-D: binocular vision kit
In addition to realizing AI applications such as face recognition, road marking line recognition and license plate recognition of conventional single camera, Binocular cameras can achieve effects that single camera can't, For example, binocular parallax algorithm ranging, stereo vision, depth vision, and VR video recording. This package is equipped with an 8 megapixel (3280 x 2464, each channel) IMX219 camera. On the basis of basic camera functions, it also has additional functions such as gyroscope, accelerometer and magnetometer. Sounds not bad?!

JETSON-NANO-DEV-KIT-E: binocular all-in-one kit
It is a good idea to add an aluminum alloy case on the basis of binocular vision package, and all accessories into the mini box. The camera bracket rotating at 180 degrees is one of its major features. The whole case is firm, dustproof and beautiful, and it also has good performance in heat dissipation capability.

JETSON-NANO-DEV-KIT-F: acrylic case kit
Give the lovely host an acrylic case. Compared with the bulkiness of aluminum alloy case, acrylic is light and concise, which can play a basic protective role.

JETSON-NANO-DEV-KIT-G: aluminum alloy case kit
On the basis of package A, add a dedicated Jetson Nano aluminum alloy case. In addition to better protection, the aluminum alloy case reserved more airflow vents, which can provide good heat dissipation and protection at the same time.

Resources & Services

Weight: 0.226 kg

Quick Overview

JETSON-IO-BASE-A

  1. JETSON-IO-BASE-A (carrier board)
1

JETSON-NANO-DEV-KIT

  1. JETSON-IO-BASE-A (carrier board)
  2. Jetson Nano module
  3. Official heatsink
  4. 64GB TF Card
  5. Card reader
1
2
3
4
5

JETSON-NANO-DEV-KIT-A

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. AC8265 dual-mode NIC
  3. USB cable (~1.2m)
  4. Ethernet cable (~1.5m)
  5. Cooling fan
  6. OPTIONS 5V 4A power adapter
  7. 64GB TF Card
  8. Card reader

JETSON-NANO-DEV-KIT-B

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. IMX219-77 Camera
  3. USB cable (~1.2m)
  4. Ethernet cable (~1.5m)
  5. Cooling fan
  6. OPTIONS 5V 4A power adapter
  7. 64GB TF Card
  8. Card reader

JETSON-NANO-DEV-KIT-C

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. IMX219-77 Camera
  3. 7inch HDMI LCD (H)
  4. HDMI cable
  5. HDMI to micro HDMI adapter
  6. USB-A to micro-USB cable
  7. RPi screw pack (4PCS)
  8. USB cable (~1.2m)
  9. Ethernet cable (~1.5m)
  10. Cooling fan
  11. OPTIONS 5V 4A power adapter
  12. 64GB TF Card
  13. Card reader

JETSON-NANO-DEV-KIT-D

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. IMX219-83 Stereo Camera
  3. FPC 15pin (2PCS)
  4. PH2.0 4PIN wire
  5. USB cable (~1.2m)
  6. Ethernet cable (~1.5m)
  7. Cooling fan
  8. OPTIONS 5V 4A power adapter
  9. 64GB TF Card
  10. Card reader

JETSON-NANO-DEV-KIT-E

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. IMX219-83 Stereo Camera
  3. FPC 15pin (2PCS)
  4. PH2.0 4PIN wire
  5. Aluminum alloy case kit
  6. Cooling fan
  7. USB cable (~1.2m)
  8. Ethernet cable (~1.5m)
  9. OPTIONS 5V 4A power adapter
  10. 64GB TF Card
  11. Card reader

JETSON-NANO-DEV-KIT-F

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. Acrylic case kit
  3. Cooling fan
  4. USB cable (~1.2m)
  5. Ethernet cable (~1.5m)
  6. OPTIONS 5V 4A power adapter
  7. 64GB TF Card
  8. Card reader

JETSON-NANO-DEV-KIT-G

  1. JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
  2. AC8265 dual-mode NIC
  3. Cooling fan
  4. USB cable (~1.2m)
  5. Ethernet cable (~1.5m)
  6. OPTIONS 5V 4A power adapter
  7. Jetson Nano Case (F)
  8. 64GB TF Card
  9. Card reader
