DIY HDMI Cable: HDMI Adapter Vertical

$2.79 - $2.99
Related Products:
Description

Details

Multi-Type HDMI Adapters, for DIY HDMI Cable
HDMI Adapter

For DIY HDMI Cable

Multi-Type Adapters Are Available For Different Applications


Parameters Comparison
Model Version Interface Dimensions(mm)

HDMI Adapter Vertical
HDMI Vertical HDMI Male Plug To Female Connector 18.0 × 16.5 × 16.5

HDMI Adapter Horizontal
HDMI Horizontal HDMI Male Plug To Female Connector 29.5 × 18.0 × 4.5

HDMI Adapter Horizontal (B)
HDMI Horizontal B HDMI Female To Female Connector 20.5 × 17.0

MINI HDMI Adapter Vertical
Mini HDMI Vertical Mini HDMI Male Plug To Female Connector 17.5 × 16.0 × 12.0

Mini HDMI Adapter Horizontal
Mini HDMI Horizontal Mini HDMI Male Plug To Female Connector 26.4 × 18.0 × 4.5

Mini HDMI Adapter Horizontal (B)
Mini HDMI Horizontal B Mini HDMI Female To Female Connector 17.5 × 16.0

Micro HDMI Adapter Vertical
Micro HDMI Vertical Micro HDMI Male Plug To Female Connector 17.5 × 16.0

Micro HDMI Adapter Horizontal
Micro HDMI Horizontal Micro HDMI Male Plug To Female Connector 27.6 × 18.0 × 4.5

Micro HDMI Adapter Horizontal (B)
Micro HDMI Horizontal B Micro HDMI Female To Female Connector 17.5 × 16.0

Usage Example
  • To DIY an HDMI cable, 2 adapters and 1 FFC are required, there are different options for each part
  • Adapter: HDMI Vertical /HDMI Horizontal / HDMI Horizontal (B) / Mini HDMI Vertical / Mini HDMI Horizontal / Mini HDMI Horizontal (B) / Micro HDMI Vertical / Micro HDMI Horizontal / Micro HDMI Horizontal (B)
  • FFC: 0.2m / 0.5m / 1m

Outline dimensions

Quick Overview

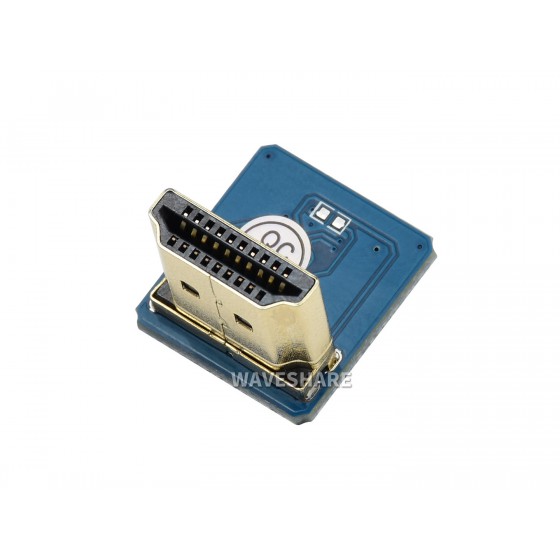

  1. HDMI Adapter Vertical x1
1
