Monocrystalline silicon solar panel (5.5V 6W), Toughened Glass surface

SKU:24166
Part No.:Solar Panel (5.5V 6W)

$9.99
PriceQuantity
$9.592+
$9.393+
$9.314+
Related Products:
Description

Details

Monocrystalline silicon solar panel (5.5V 6W), Toughened Glass surface
Monocrystalline silicon Solar Panel
Specifications
Solar cell type Monocrystalline silicon
Solar panel power 6W
Operating voltage 5.5V ± 5%
Operating current 1000mA ± 5% (Max)
Open circuit Voltage 7.2V ± 5%
Short circuit current 1090mA ± 5% (Max)
Output interfaces micro USB, USB Type-C (with adapter)
cable length 3m
Outline Dimensions 225.0 × 195.0 × 17.6mm
Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.

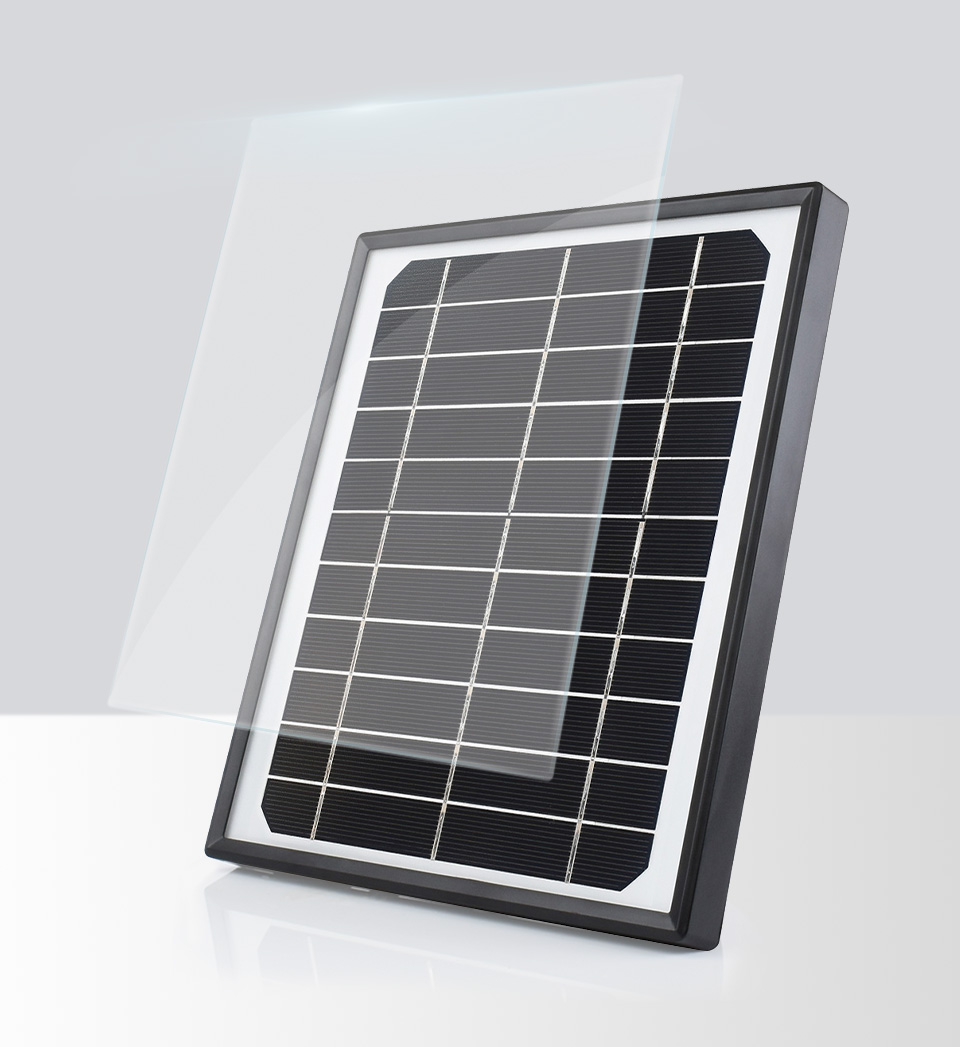

Toughen Glass Panel

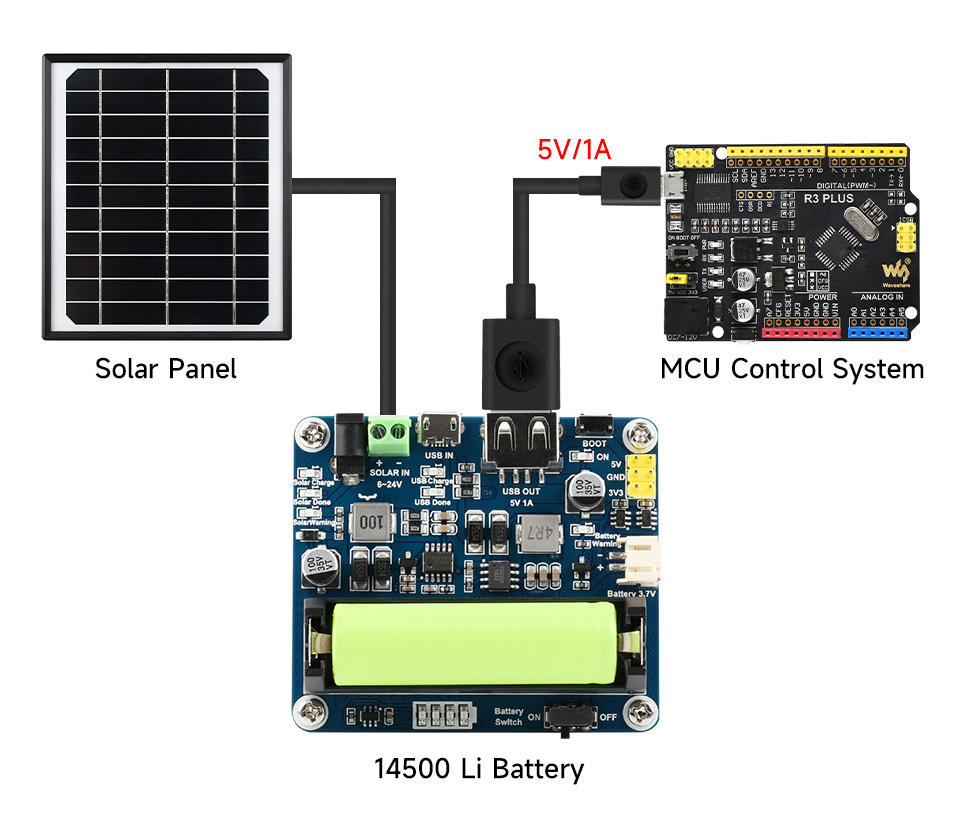

Connecting to power management module

Connecting to power management module or other control boards which support 5.5V solar panels for charging or power supply, compatible with Solar Power Manager.

for reference only, the Solar Power Manager module and the MCU board are not included.

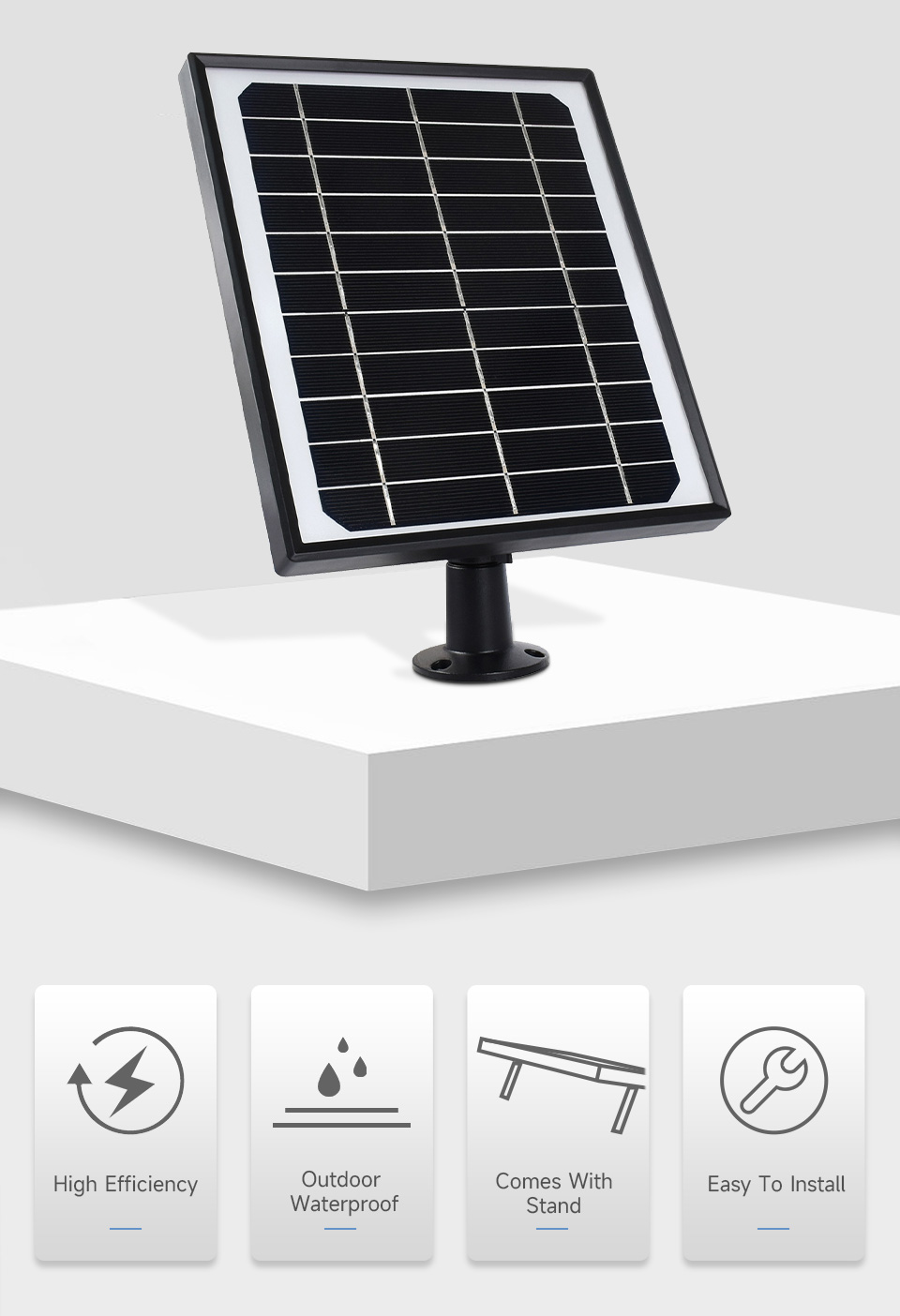

Comes With Foldable Stand

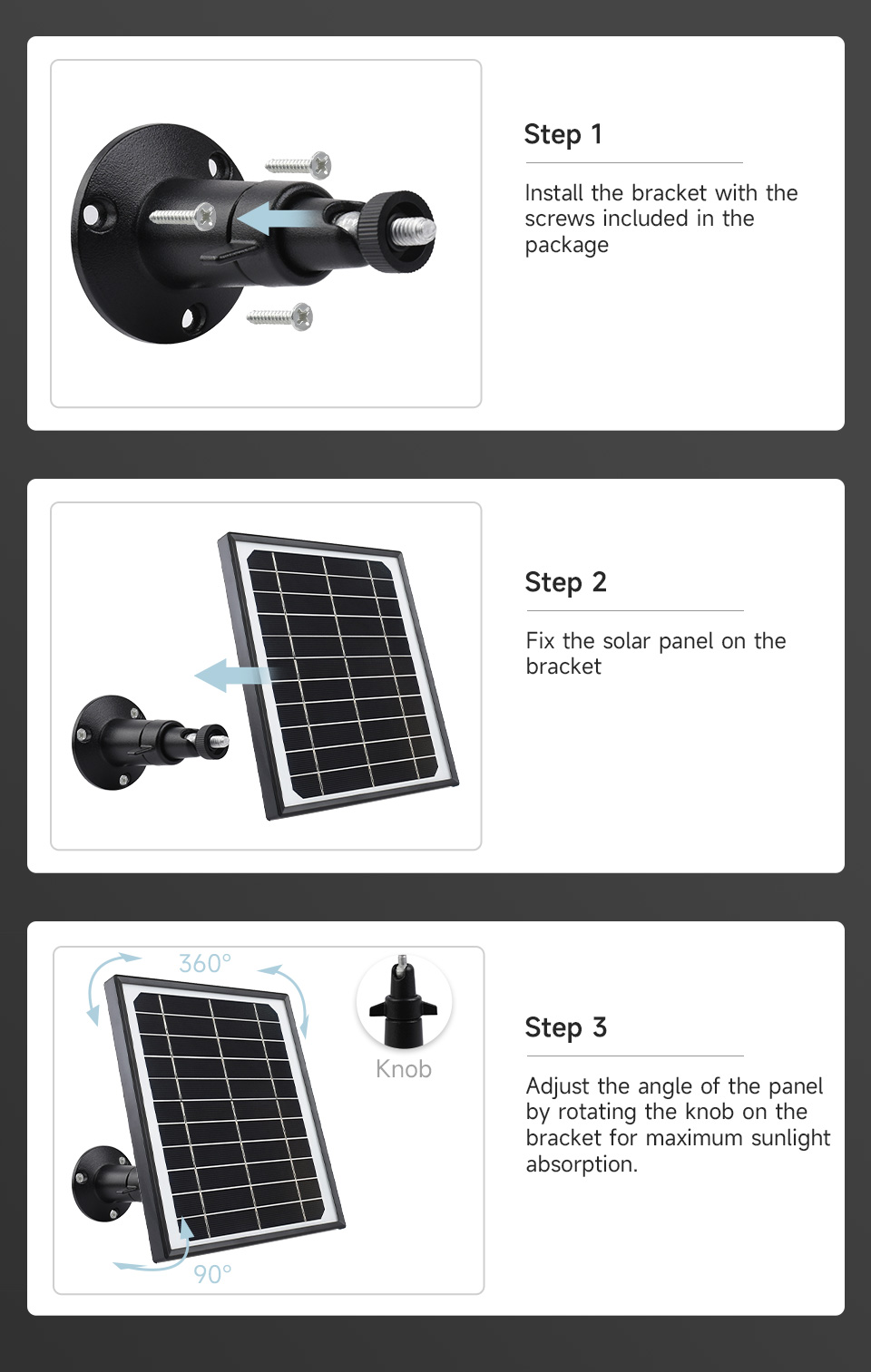

Easy To Install

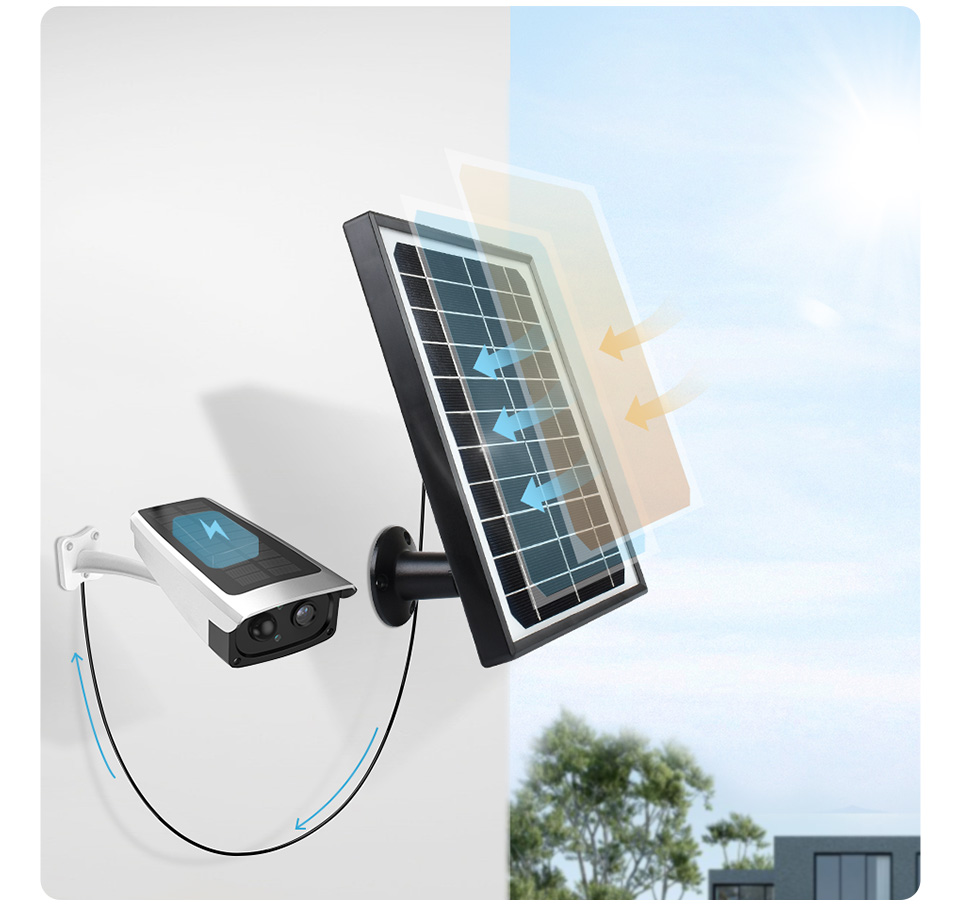

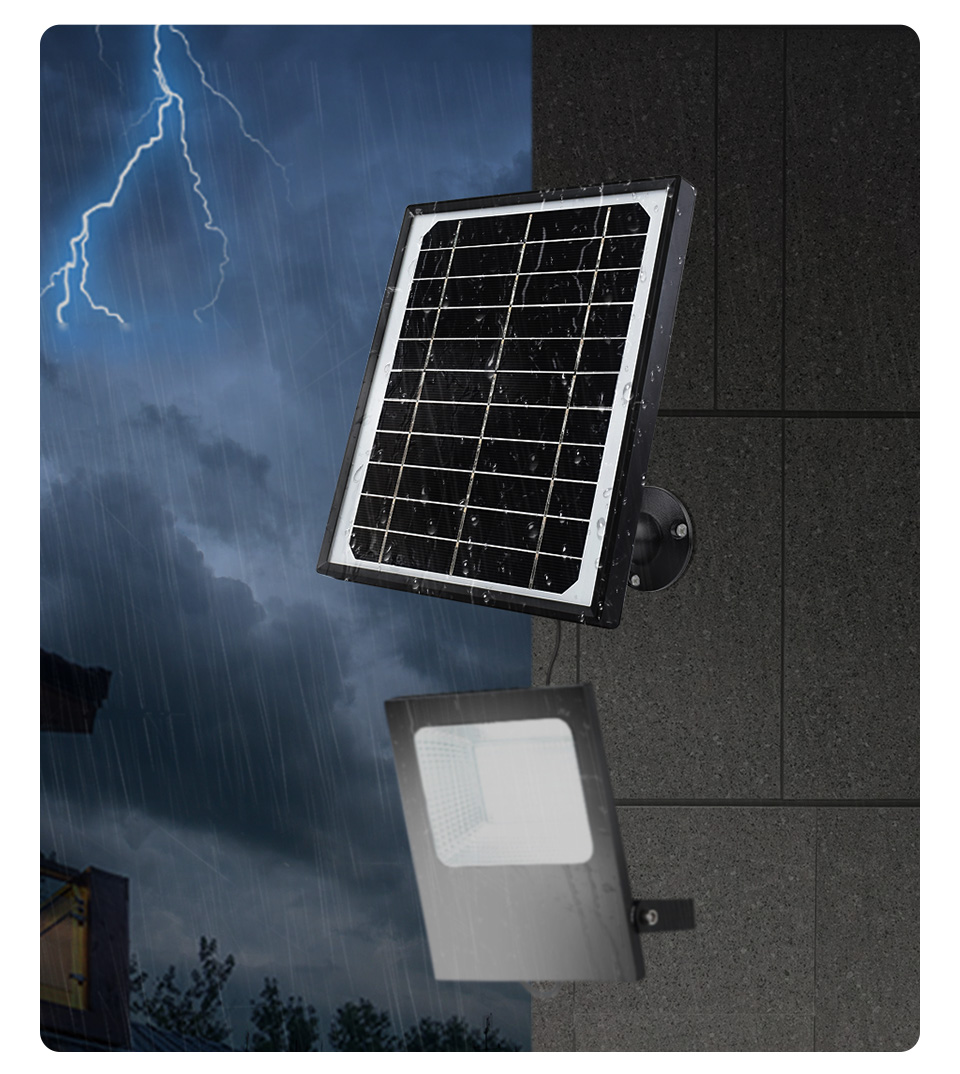

Application Examples

Can be directly connected to low-power outdoor smart electronic devices which support 5.5V solar panel via USB port, such as monitoring devices, doorbells, fans, emergency lights, etc.

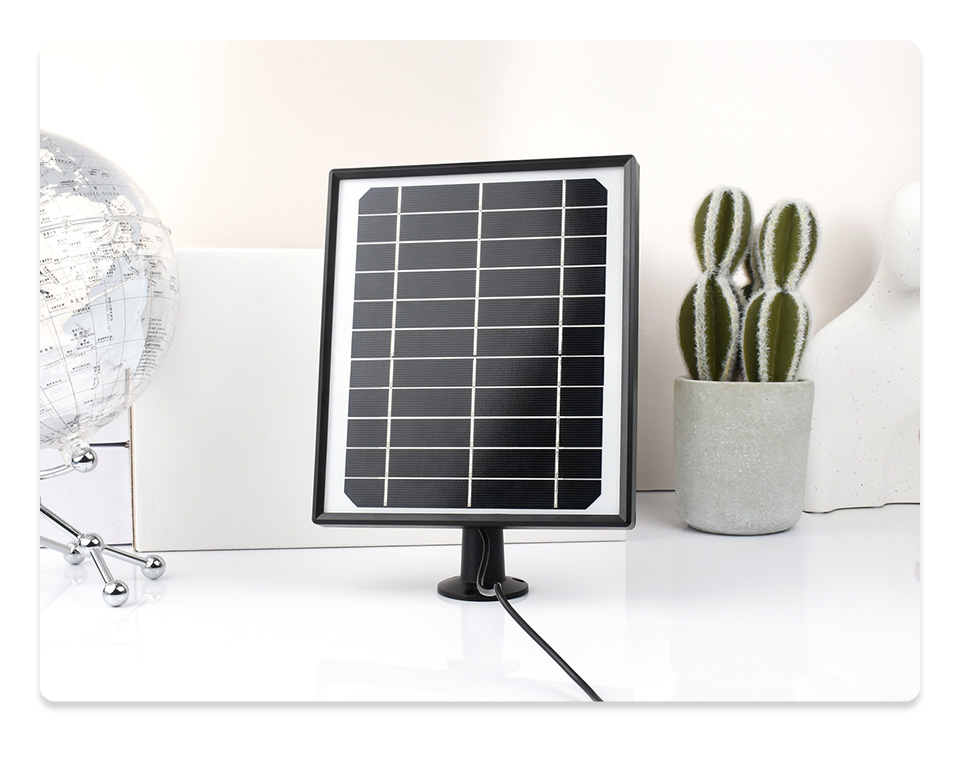

Product Show

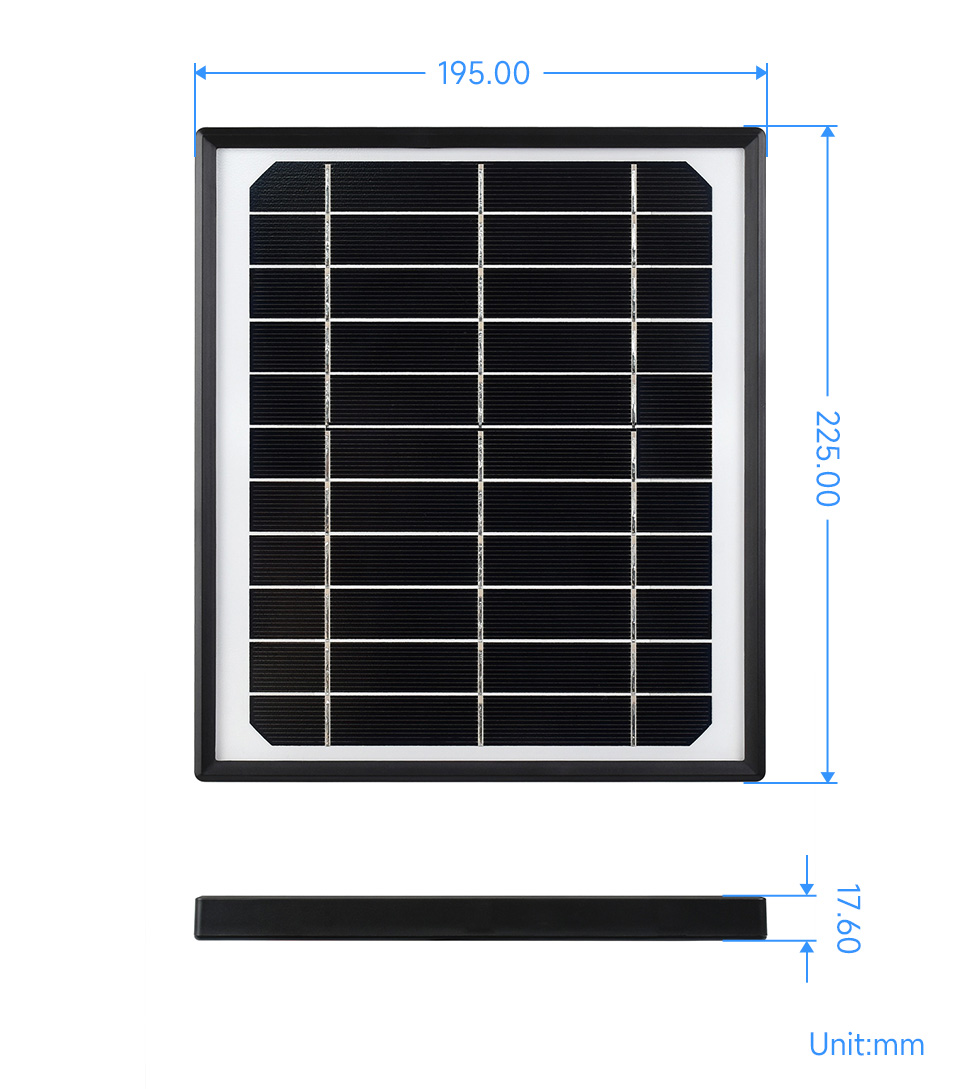

Outline dimensions
These dimensions are manually measured, and there may be some deviations

Weight: 0.455 kg

Quick Overview

Solar Panel (5.5V 6W) x1
