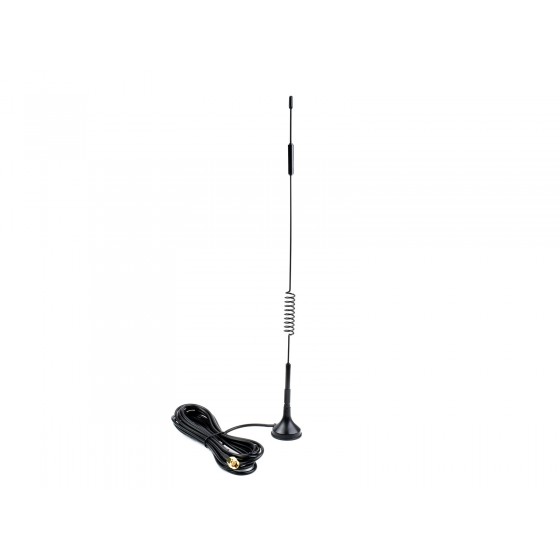

4G High Gain SMA Antenna for Outdoor Condition, 4G/3G/2G/LPWA Support, Waterproof, Magnetic Base

SKU:21371
Part No.:4G/3G/2G/LPWA Outdoor Antenna

$2.69
PriceQuantity
1
$2.492
$2.393
$2.354+
Description

Details

4G high gain SMA antenna for outdoor condition, 4G/3G/2G/LPWA support, waterproof, magnetic base
4G outdoor waterproof antenna

4G/3G/2G/LPWA support, high gain, with magnetic base

Specifications
Network support 4G/3G/2G/LPWA Gain 12DBI
Frequency range 700~2700 MHz Connector SMA inner pin
Band width 2300 MHz Input power 10W MAX
Output impedance 50Ω Antenna height 32 cm
VSWR ≤ 1.5 Cable length ~3m
Polarisation Vertical Color Black
Waterproof IP65 Operating temp. -40℃ ~ +85℃
Design details
4G antenna connection example

working with SIM7600G-H 4G DTU

for reference ONLY, the SIM7600G-H 4G DTU is not included.
Outline dimensions

Weight: 0.056 kg

Quick Overview

  1. 4G/3G/2G/LPWA Outdoor Antenna x1
