XBee USB Adapter

SKU:11293
Part No.:XBee USB Adapter
Brand:Waveshare

$6.99
PriceQuantity
$6.492+
$6.193+
$5.994+
Description

Details

UART communication board, XBee interface, USB interface

XBee USB Adapter Overview

XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging.

It can be used in the following situations :

  • Test XBee modules: onboard buttons/LEDs for easy testing
  • Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently
  • USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily

Note : XBee modules above refer to modules with XBee-compatible interface, like: Core2530 (B), Dual-mode Bluetooth, etc.

Photos

Note : the XBee/ZigBee modules in the photos are NOT included.

Pin Definition

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/XBee_USB_ Adapter

Weight: 0.059 kg

Quick Overview

  1. XBee USB Adapter x 1

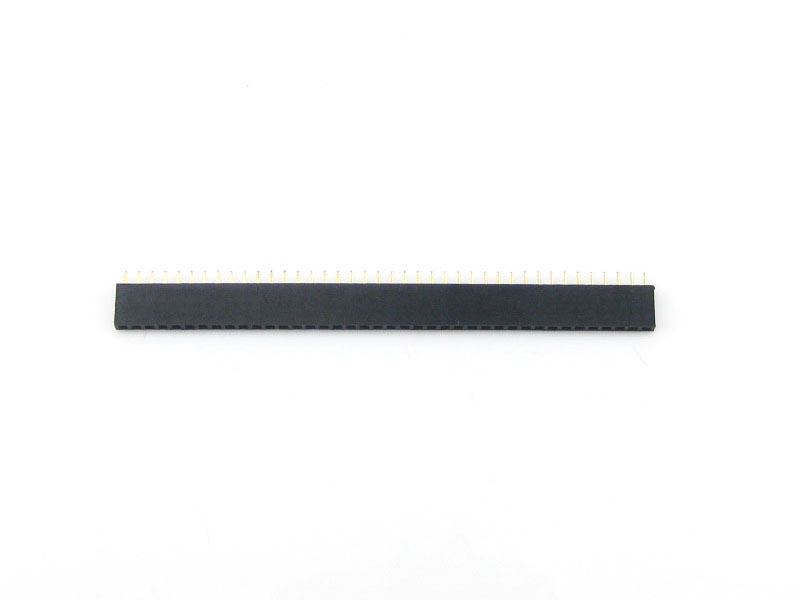

  2. 40-pin male pinheader & 40-pin female pinheader x 1
  3. USB Type A Plug to Micro B Plug Cable x 1
