Details
1.51inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, light blue color display
1.51inch Transparent OLED
Embedded independent driver chip, Using SPI/I2C Interfaces
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-1.jpg)
- Size
1.51"
- Resolution
128×64
- Display Color
Light Blue
- Interface
SPI/I2C
- Display Panel
OLED
- Driver
Embedded driver
Features at a glance
- OLED transparent module, full viewing angle
- Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
Operating voltage | 3.3V / 5V | Resolution | 128 × 64 pixels* |
---|---|---|---|
Pixel pitch | 0.274 × 0.274mm | Module size | 42.04 × 27.22mm |
Communication Interface | 4-wire SPI/I2C | Display size | 35.05 × 15.32 mm |
DISPLAY PANEL | OLED | PIXEL SIZE | 0.254 × 0.254 mm |
Driver | Embedded driver | Driver Board size | 41 × 22.5 mm |
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-13.jpg)
* there is a non-transparent white area on the side of the cable, but it can be displayed
SPI and I2C control interface switching
supports controller boards like Raspberry Pi/Arduino/STM32
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-3.jpg)
VCC | Power (3.3V / 5V input) |
---|---|
GND | Ground |
DIN | SPI / I2C data input |
CLK | SPI / I2CI clock input |
CS | Chip selection, low active |
DC | Data/Command selection (high for data, low for command) |
RST | Reset, low active |

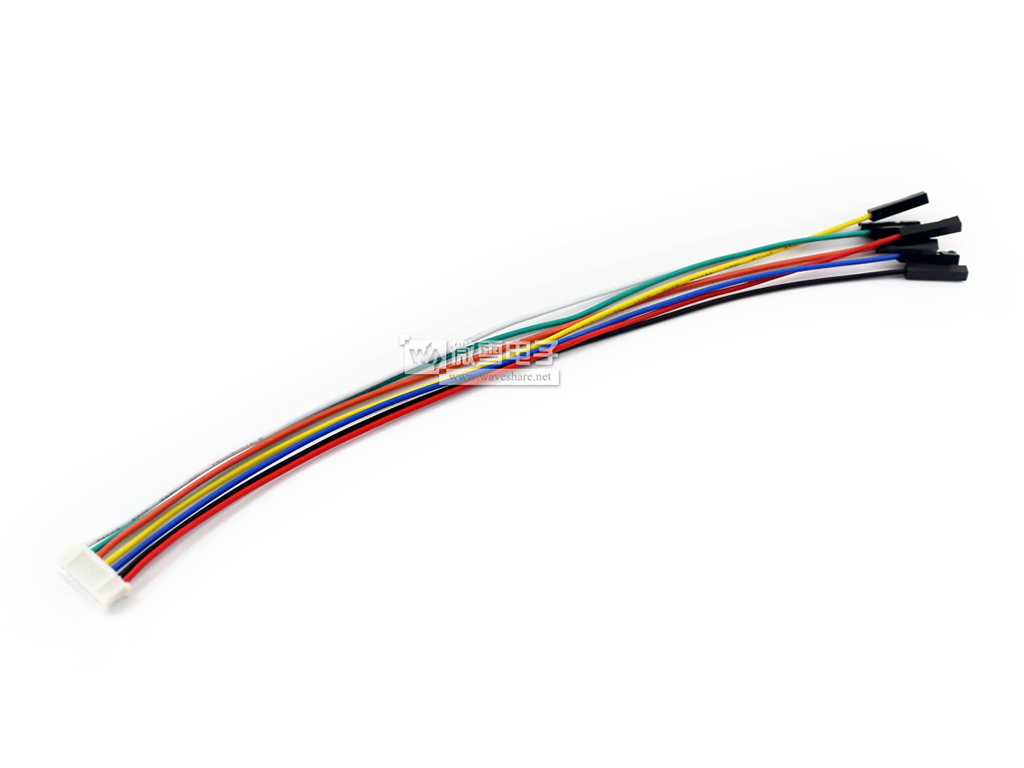

Hardware connection
connecting with Raspberry Pi
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-5.jpg)
connecting with Arduino board
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-7.jpg)
Usage Example
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-9.jpg)
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-13.png)
FPC cable Connection
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-4.jpg)
Outline dimensions
![](/img/devkit/LCD/1.51inch-Transparent-OLED/1.51inch-Transparent-OLED-details-size.jpg)
