PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
Interface / Expansion / Power, Raspberry Pi 5

PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT

SKU:29320
Part No.:PoE M.2 HAT+ (B)
Brand:Waveshare

$23.99
PriceQuantity
1
$23.192
$22.793
$22.634+
Share:
Description

Details

PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT
PCIe To M.2 with PoE HAT (B)

Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

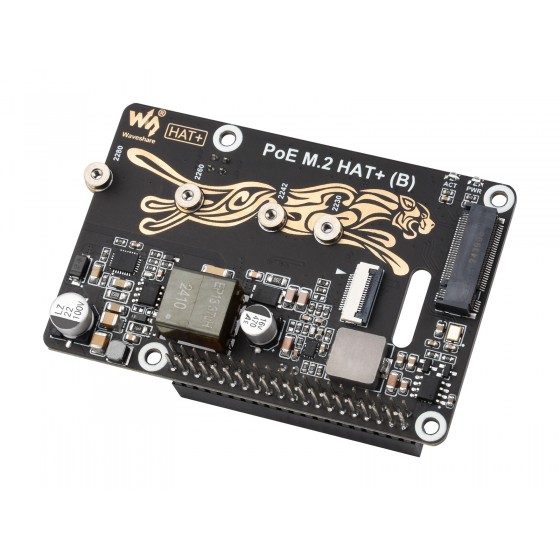

PCIe To M.2 with PoE HAT (B), front view and features

Specifications
PoE power input 37V ~ 57V DC in
Power output GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
Dimensions 56.0 × 85.0 (mm)
Network standard IEEE 802.3af/at PoE


Improves reading/writing speed of your Pi
PCIe To M.2 with PoE HAT (B), improves reading/writing speed

* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.


NVMe Drive Slot Support

PCIe To M.2 with PoE HAT (B), NVMe Drive slot support

Note: Only supports the NVMe Protocol Solid State Drives.


Adopts Immersion Gold Process

Better appearance | Anti-oxidation | Anti-corrosion | Strong welding

PCIe To M.2 with PoE HAT (B), adopts anti-Oxidation Immersion Gold Process

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

PCIe To M.2 with PoE HAT (B), connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list


Onboard Dual LED Indicators

Easy to monitor the Working Status

PCIe To M.2 with PoE HAT (B), onboard dual LED indicators
NVMe Drive Protocol Support

Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

PCIe To M.2 with PoE HAT (B), compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

PCIe To M.2 with PoE HAT (B), with PoE function
* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.


Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

PCIe To M.2 with PoE HAT (B), onboard 5V & 12V header outputs

How to Install

Attach the thermal tapes first, then install the cooling fan and fix the HAT

PCIe To M.2 with PoE HAT (B), how to install

* for reference only, please refer to the Package Content for detailed part list


PCIe To M.2 with PoE HAT (B), Hat+ standard

Outline dimensions
PCIe To M.2 with PoE HAT (B), outline dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(B)
PCIe adapter board selection
Product Model Extended Interface PCIe Version mounting solution Power monitoring features

PCIe TO M.2 Board (D)		 M.2_M_KEY PCIe ×1 Gen2/3 on top NVME, 2280

PCIe TO 2-CH M.2 HAT+ (B)		 M.2_M_KEY × 2 PCIe ×1 Gen2 HAT+ √ 2-ch NVME, 2280

PCIe TO 2-CH M.2 HAT+		 M.2_M_KEY × 2 PCIe ×1 Gen2 HAT+ √ 2-ch NVME, 2242

PCIe TO M.2 HAT+		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ √ NVME, 2242

PCIe TO M.2 MINI		 M.2_M_KEY PCIe ×1 Gen2/3 on top NVME, 2242, compact size

PCIe TO M.2 Board (C)		 M.2_M_KEY PCIe ×1 Gen2/3 on side NVME, 2280, side-mounting

PCIe TO Gigabit ETH Board (C)		 Gigabit ETH PCIe ×1 Gen2 on side Gigabit ETH port, side-mounting

PCIe TO 4G/5G M.2 USB3.2 HAT+		 M.2_B_KEY, USB3.2 × 3 PCIe ×1 Gen2 HAT+ √ supports 4G/5G modules, expanded USB3.2 ports

PCIe TO USB 3.2 Gen1 Board (C)		 USB3.2 × 4 PCIe ×1 Gen2 on side expanded USB3.2 ports, side-mounting

PCIe TO USB 3.2 Gen1 HAT+		 USB3.2 × 4 PCIe ×1 Gen2 HAT+ √ expanded USB3.2 ports

PCIe TO Gigabit ETH USB3.2 HAT+		 USB3.2 × 3, Gigabit ETH PCIe ×1 Gen2 HAT+ √ expanded USB3.2 ports and Gigabit ETH port

PCIe TO MiniPCIe GbE USB3.2 HAT+		 USB3.2 × 2, MiniPCIe, Gigabit ETH PCIe ×1 Gen2 HAT+ √ expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port

RM520N-GL 5G HAT+		 M.2_B_KEY PCIe ×1 Gen2 HAT+ √ access to 5G networking via PCIe interface, multiple 5G modules compatible

PoE M.2 HAT+		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2242

PoE M.2 HAT+ (B)		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2280

PCIe TO ETH M.2 HAT+		 M.2_M_KEY, Gigabit ETH PCIe ×1 Gen2 HAT+ √ with Gigabit ETH port, NVME, 2280

Weight: 0.023 kg

Quick Overview

  1. PoE M.2 HAT+ (B) x1
  2. 16PIN PCIe cable x1
  3. SSD mounting screw x1
  4. Screws pack x1
1PoE M.2 HAT+ (B)
2
3
4
