PL2303 USB To UART (TTL) Communication Module, Micro / Mini / Type A / Type C Connector
PL2303 USB To UART (TTL)
Communication Module

Stable transmission | Multi-device Applicable | Windows compatible

Features at a glance
  • Adopts PL2303GS new version chip
  • Supports windows XP/7/8/10/11/...
  • 3x VCCIO power mode via jumper setting:
    • VCCIO - 5V: 5V output
    • VCCIO - 3.3V: 3.3V output
    • open the jumper: powered from target board (1.8V/2.5V/3.3V/5V)
  • 3x LED indicators: TXD, RXD, PWR

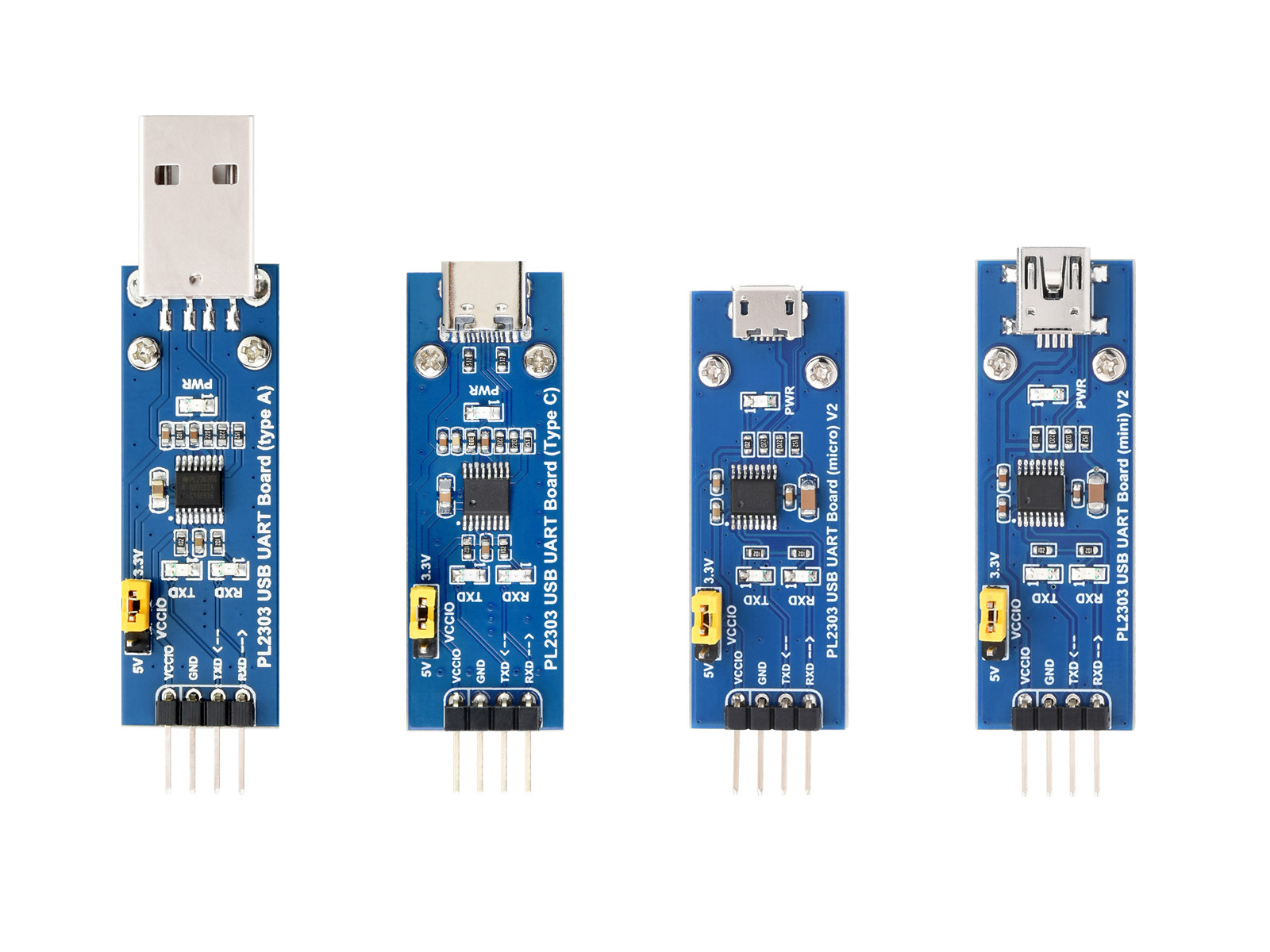

Version Options

USB Type A Connector

USB Type C Connector

USB micro Connector

USB mini Connector


PL2303 solution

Adopts PL2303GS new version chip

Hardware connection

In the case Of PL2303 USB UART Board (type A) Working With MCU

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)
CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
Product show
Outline Dimensions

Quick Overview

  1. OPTIONS PL2303 USB UART Board x1
  2. 4-pin custom connector jumper wire x1
