- Description
Details
Including 15 common modules such as LED, button, buzzer, etc.
out of the box as a whole kit, or can be separated to use independently
Comes with online development resources and manual
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- All-in-one design, all modules are connected to Pico via PCB castellated holes, no soldering or wiring required.
- Including 15 common modules such as LED, button, buzzer, etc., which can be separated to use independently
- Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++ and MicroPython)
Note: the PH2.0 cables are required for the connection with pico after the modules are separated.
| Model | Note |
|---|---|
| Pico-Sensor-Kit-B | the Sensor Kit only |
| Raspberry-Pi-Pico-Sensor-Kit-B | Raspberry Pi Pico H + Sensor Kit |
| Raspberry-Pi-Pico-W-Sensor-Kit-B | Raspberry-Pi-Pico-W-M + Sensor Kit |
| RP2040-Plus-Pico-Sensor-Kit-B | RP2040-Plus-M + Sensor Kit |
| ESP32-S3-Pico-Sensor-Kit-B | ESP32-S3-Pico-M + Sensor Kit |

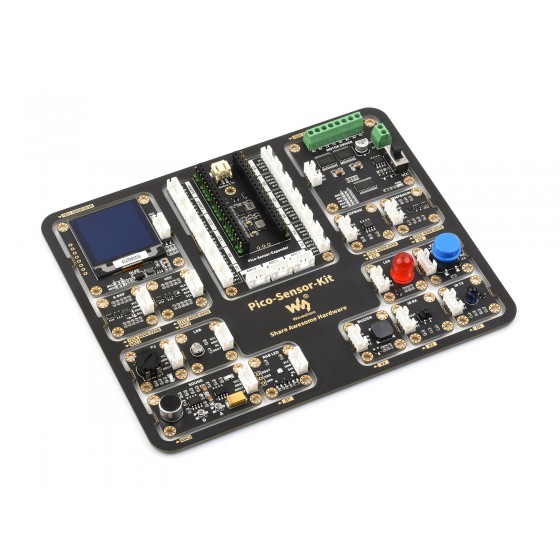

Pico-Sensor-Kit-B
The pico sensor kit, with IR remote controller, PH2.0 dual-plug 4PIN cable, and PH2.0 4PIN cable.
Raspberry-Pi-Pico-Sensor-Kit-B
On the basis of the Pico-Sensor-Kit-B, it is equipped with Raspberry Pi Pico H and Type A to Micro B USB cable. The Raspberry Pi Pico H is a low-cost, high-performance microcontroller board with flexible digital interfaces. Comes with online development resources and tutorials to help you get started easily.
Raspberry-Pi-Pico-W-Sensor-Kit-B
On the basis of the Pico-Sensor-Kit-B, it is equipped with Raspberry-Pi-Pico-W-M and Type A to Micro B USB cable. Based on Raspberry Pi Pico, Raspberry Pi Pico W comes with a wireless communication module which supports Wi-Fi 4 wireless networks, making it the perfect solution for wireless network control and communication.
RP2040-Plus-Pico-Sensor-Kit-B
On the basis of the Pico-Sensor-Kit-B, it is equipped with RP2040-Plus-M and Type A to Type C USB cable. The RP2040-Plus is based on Pico with onboard 4MB Flash, Type C connector, recharge header, and higher current DC-DC chip, which can meet more application requirements.
ESP32-S3-Pico-Sensor-Kit-B
On the basis of the Pico-Sensor-Kit-B, it is equipped with ESP32-S3-Pico-M and Type A to Type C USB cable. The ESP32-S3-Pico adopts ESP32-S3R2 as the main chip, which is equipped with a dual-core Xtensa 32-bit LX7 processor, with built-in 512 KB SRAM and 2MB PSRAM. Supports 2.4GHz Wi-Fi and Bluetooth LE, suitable for artificial intelligence IoT application development.
Suitable for Raspberry Pi Pico series boards, adapting 40PIN color-coded header
Comes with relevant resources and tutorials to help you get started quickly
① Onboard PH2.0 header for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time.
② Onboard PH2.0 4PIN headers for connecting modules
- Built in controller: SSD1327
- Resolution: 128×128
- 16 gray scale display
- I2C and SPI communication, switchable via onboard BS1 and BS2 resistors
- Onboard QMI8658C (3-axis accelerometer, 3-axis gyroscope), for detecting motion and orientation
- 16-bit resolution for both accelerometer and gyroscope
- Onboard SGP40 digital VOC gas sensor for air quality detection
- Measurement range: 0~1000ppm ethanol equivalents
- Communication interface: I2C (constant address: 0x59)
- Operating voltage: 3.3V/5V
Adjustable voltage output, after the output voltage exceeds the LED conduction voltage, the LED brightness will increase with voltage
For detecting the ambient light brightness, the output voltage will decrease as the brightness increases
For converting the sound signal into electrical signal, which is amplified through operational amplifier and then inputted to the comparator, providing analog voltage output and digital output respectively. Adjustable output amplitude via potentiometer A and digital interface trigger voltage via potentiometer D.
- Built in controller: WS2812B
- Brightness: 256 levels adjustable
- Color depth: 24 bits (R / G / B 8-bit each color, can be combined to 16777216 colors)
Onboard passive buzzer, outputs different sounds according to the different frequencies of the electrical signal.
Onboard IRM-H638T/TR2 for receiving infrared remote control signal
Onboard TSAL6400 for transmitting infrared remote control signals, with the infrared light wavelength of 940nm.
Onboard 12×12mm button, for human-computer interaction
Onboard 10mm LED with soft light, for status indication
Onboard SHTC3 chip supports measuring 0 to 100% relative humidity and -40°C to 125°C temperature, with a typical measurement accuracy of ±2% relative humidity and ±0.2°C
Onboard AT24C04 chip for preserving 2Kbit of data when powered down
- Onboard PCA9685 chip, can output 12-bit hardware PWM to control motor speed
- Onboard TB6612FNG dual H-bridge motor driver chip, high efficiency, not easy to heat
- logic voltage: 3.3V
All modules are connected to pico via PCB castellated holes, no soldering or wiring required, or can be separated to use Independently
Quick Overview
Pico-Sensor-Kit-B
- Pico-Sensor-Kit-B x1
- IR remote controller x1
- PH2.0 dual-plug 4PIN cable x15
- PH2.0 4PIN cable x5
Raspberry-Pi-Pico-Sensor-Kit-B
- Pico-Sensor-Kit-B x1
- Raspberry Pi Pico H x1
- IR remote controller x1
- PH2.0 dual-plug 4PIN cable x15
- PH2.0 4PIN cable x5
- Type A to Micro B USB cable ~1.2m x1
Raspberry-Pi-Pico-W-Sensor-Kit-B
- Pico-Sensor-Kit-B x1
- Raspberry-Pi-Pico-W-M x1
- IR remote controller x1
- PH2.0 dual-plug 4PIN cable x15
- PH2.0 4PIN cable x5
- Type A to Micro B USB cable ~1.2m x1
RP2040-Plus-Pico-Sensor-Kit-B
- Pico-Sensor-Kit-B x1
- RP2040-Plus-M x1
- IR remote controller x1
- PH2.0 dual-plug 4PIN cable x15
- PH2.0 4PIN cable x5
- Type A to Type C USB cable ~1m x1
ESP32-S3-Pico-Sensor-Kit-B
- Pico-Sensor-Kit-B x1
- ESP32-S3-Pico-M x1
- IR remote controller x1
- PH2.0 dual-plug 4PIN cable x15
- PH2.0 4PIN cable x5
- Type A to Type C USB cable ~1m x1
