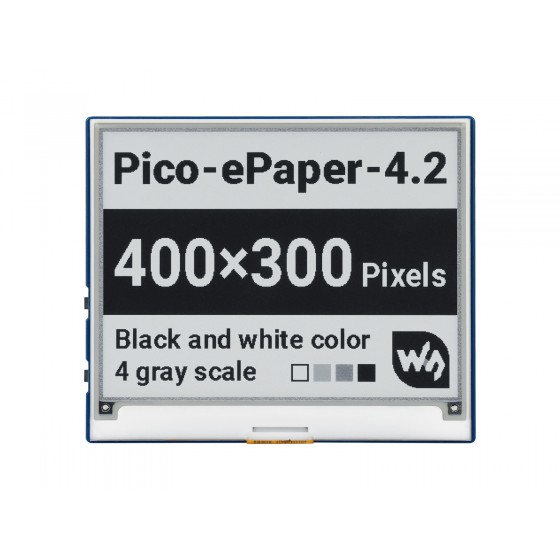

4.2inch e-Paper E-Ink Display Module for Raspberry Pi Pico, 400×300 pixels, Black / White, SPI Interface
4.2" e-Paper Module for Pico

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

  • Size4.2"
  • Resolution400×300
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale4
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • Power ConsumptionUltra Low
  • Display DurationPersists without Power
  • RefreshingPartial Refresh Support
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • 2x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
operating voltage 3.3V/5V display color Black/White
interface 3-wire SPI, 4-wire SPI grey scale 4
outline dimensions 93.5 × 78.5mm full refresh time 5s
display size 84.8 × 63.6mm Fast Refresh time 1s/1.5s*
DOT PITCH 0.212 × 0.212mm Partial refresh time 0.4s
viewing angle >170° refresh power 26.4mW(typ.)
RESOLUTION 400 × 300 pixels standby current <0.01uA (almost none)

* Fast refresh function is only available in V2 version

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico
2x user buttons for easy interacting

Raspberry Pi Pico is NOT included.
Onboard SPI control interface

for use with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
SCK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output
Onboard Voltage Translator

compatible with 3.3V / 5V MCUs

Pinout definition
Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide
Part NumberColorsGrey ScaleResolutionDisplay size (mm)Full Refresh Time (s)Partial Refresh1FeatureInterface
Pico-ePaper-2.13 black, white 2 250 × 122 48.55 × 23.70 2 √   SPI
Pico-ePaper-2.13-B red, black, white 2 250 × 122 48.55 × 23.71 15     SPI
Pico-ePaper-2.13-D black, white 2 212 × 104 48.55 × 23.71 2 √ Flexible SPI
Pico-ePaper-2.66 black, white 2 296 × 152 60.088 × 30.704 5 √   SPI
Pico-ePaper-2.66-B red, black, white 2 296 × 152 60.088 × 30.704 15     SPI
Pico-ePaper-2.7 black, white 4 264 × 176 57.288 × 38.192 6 √ Buttons SPI
Pico-ePaper-2.9 black, white 4 296 × 128 66.89 × 29.05 3 √   SPI
Pico-ePaper-2.9-B red, black, white 2 296 × 128 66.90 × 29.06 15     SPI
Pico-ePaper-2.9-D black, white 2 296 × 128 66.90 × 29.06 2 √ Flexible SPI
Pico-CapTouch-ePaper-2.9 black, white 4 296 × 128 66.89 × 29.05 3 √ Touch SPI
Pico-ePaper-3.7 black, white 4 480 × 280 81.12 × 47.32 3 √   SPI
Pico-ePaper-4.2 black, white 4 400 × 300 84.8 × 63.6 5 √ Buttons SPI
Pico-ePaper-4.2-B red, black, white 2 400 × 300 84.8 × 63.6 15   Buttons SPI
Pico-ePaper-5.65 7-color 2 600 × 448 114.9 × 85.8 <35   Colorful SPI
Pico-ePaper-5.83 black, white 2 648 × 480 119.232 × 88.320 5     SPI
Pico-ePaper-5.83-B red, black, white 2 648 × 480 119.232 × 88.320 20     SPI
Pico-ePaper-7.5 black, white 4 800 × 480 163.2 × 97.92 4 √   SPI
Pico-ePaper-7.5-B red, black, white 2 800 × 480 163.2 × 97.92 26     SPI
  1. It usually takes about 0.3s to partially refresh the display

Weight: 0.065 kg

Quick Overview

  1. Pico-ePaper-4.2 x1
  2. PH2.0 8PIN wire 20cm x1
  3. Standoff pack x1
